ST-IPC6FOUSB4K-R-POE: Extend (or create a matrix switching system) 4K HDMI video/audio, USB keyboard/mouse

394 feet over CATx point-to-point; extended distance using Gigabit Ethernet, with video-wall support up to 8x16 (128 screens)

Note: Local units are purchased separately

• Supports point-to-point, point-to-many, and many-to-many connections
• Supports video-wall installations from 1x2 to 8x16 screens
• Power over Ethernet (PoE) – no power supply required

XTENDEX^® 4K HDMI USB KVM over IP extender provides remote KVM (USB keyboard, USB mouse, and 4K HDMI monitor) access to a USB computer up to 394 feet (120 meters) over a Gigabit network using a single CAT-5e/6/6a/7 cable.

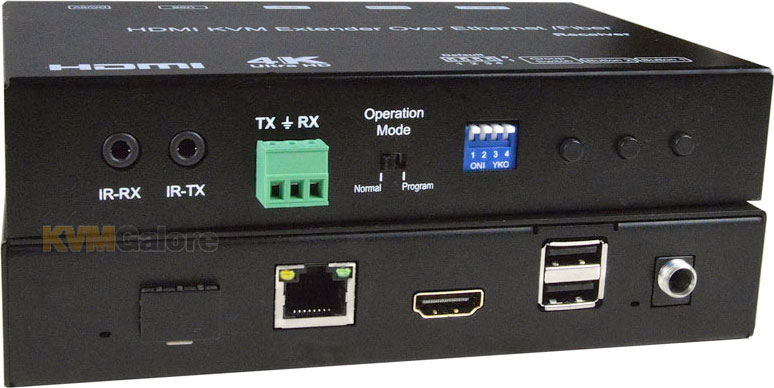

The extender consists of the ST-IPC6FOUSB4K-L-POE local unit that connects to a computer and the ST-IPC6FOUSB4K-R-POE remote unit that connects to an HDMI monitor, USB keyboard, and USB mouse.

The local and remote units can be connected together for a point-to-point connection via CATx cable, or a point-to-many or many-to-many connection via a Gigabit network switch.

Supported HDMI Features
• HDMI 1.4
• RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
• LPCM 5.1/7.1, Dolby Digital, and DTS
• Bandwidth up to 340 MHz (10.2 Gbps)

Features and Benefits
• Supports Ultra-HD 4K resolution up to 3840x2160 @ 30Hz; 1080p HDTV resolution; 1920x1200 (WUXGA)
• Cascade network switches to extend the length long distances
• HDCP 1.4 compliant
• Two USB 2.0 ports for keyboard, mouse, flash drive, or touchscreen display
• Keyboard and mouse are hot-pluggable
• Power over Ethernet (PoE) – power supply not required at the local or remote unit when used with a switch that supports PoE
• Supports video wall installations from 1x2 to 8x16 screens
• Video-wall displays can be rotated 90, 180 and 270°
• Plug-and-Play installation allows receivers to find the transmitter automatically on the same network (network configuration may be required if using a managed network switch)
• Bi-directional IR control from input and output locations
• Manage transmitter/receiver connections and video wall configuration with built-in software or DIP switches
• Supports full-duplex RS232 up to 115200 baud
• Customizable EDID table
• Easily expandable – add receivers as you add control stations
• Mounting brackets included for easy surface/wall mounting
