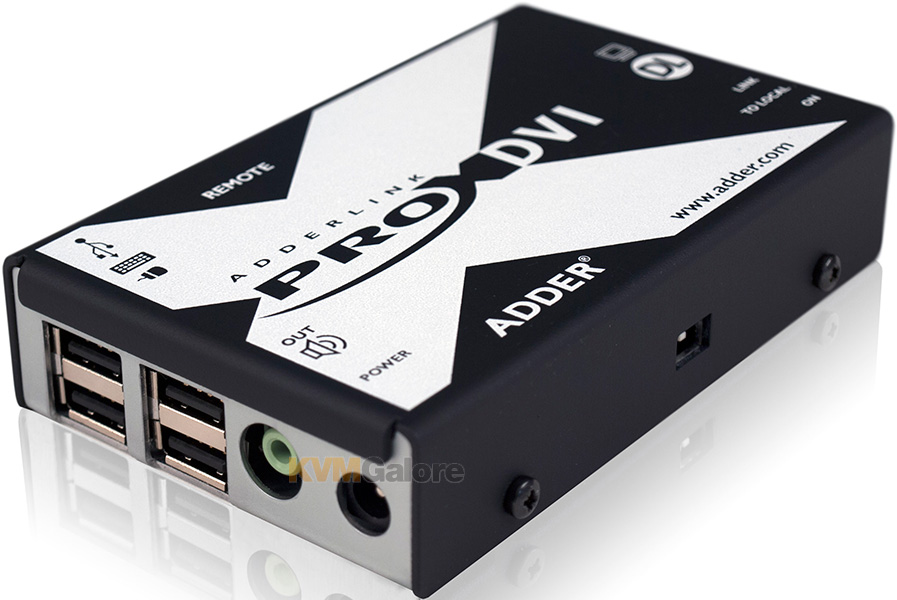

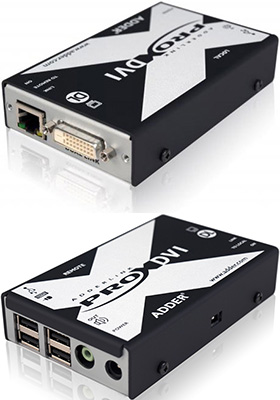

X-DVIPRO-DL: Dual link DVI and transparent x4 USB KVM extender

over a single CATx cable up to 164 feet

• Plug and play
• 164 feet extension distance
• 2560x1600 @ 60Hz maximum resolution
• USB 2.0 low and full speed
• 4-port USB 2.0 hub on receiver unit
• Supports keyboard, mouse, tablet and touch screen extension

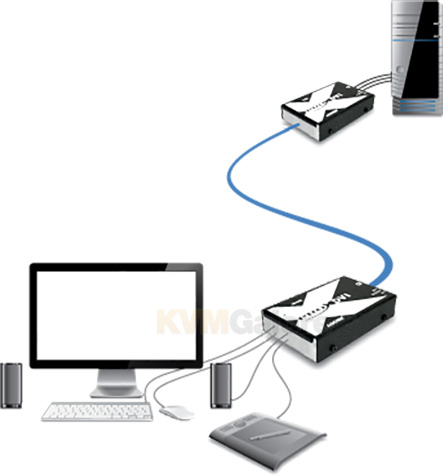

AdderLink X-DVI PRO DL is a high performance KVM (Keyboard, Video, Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, while maintaining the same user experience. It can transmit a dual link video stream, USB 2.0 and analog audio over a single CATx cable.

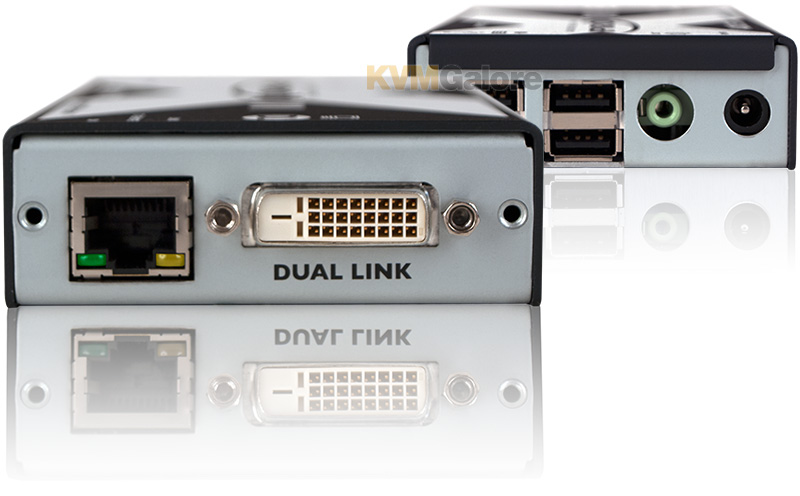

Dual link resolutions, real time control
X-DVI PRO DL allows you to remote your monitor with resolutions up to 2560x1600 @ 60Hz up to 164 feet away from your computer. Using a visually lossless technique, no visible artefacts or latency are introduced allowing you to be certain of quality and control.

164 feet over a single CATx cable
Video, USB 2.0 (low and full speed) and audio pass along a single cable, providing up to 50 meters of extension.
Distance is dependent upon video resolution, CATx cable type and the number of connection breaks for patch panels and wall plates. See SPECS tab for details.

USB 2.0
Enables connection of any human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks, 3D explorers and mass storage devices. Full speed (12 Mbps) isochronous devices are also supported.

Power efficiency
X-DVI PRO DL extender is designed to be highly power efficient and consumes less than 6 watts per point.

EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Plug and Play
AdderLink X-DVI PRO DL extender is delivered in a zero config state so you can plug the units in and start working with them straight away. There is no need for drivers or software to be installed.

Analog audio
Stereo CD quality (stereo channel 16 bit sampled at 44.1 kHz) is available to transfer audio from local to remote for line out.

Built to last
Adder Technology have a well-earned reputation for creating products that perform well. The AdderLink X-DVI PRO DL is no exception and features tough, yet lightweight metallic enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their high performance characteristics.
