Extended-desktop DisplayPort MST KVM extender

video, USB 2.0 and audio are transmitted on a single CATx or fiber cable

• Quad-monitor HD 60 video, USB 2.0 (HID) and audio are transmitted on a single CATx or fiber cable
• Point-to-point protocol for ultra-low latency
• Flexibility between copper and fiber connectivity
• Adder's USB emulation ensures reliable computer bootup

ADDERLink XD614 is a state-of-the-art quad-head KVM extender that utilizes inbuilt DisplayPort™ MST technology and HD resolution support to give you maximum flexibility and control of your critical computers and workflows. Multiple audio types, emulated and hi-speed USB 2.0, and ultra-low latency control give you a true 'at-the-PC' experience.

ADDERLink™ XD614 is a high performance KVMA (keyboard, video, mouse and audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, while maintaining the same user desktop experience.

Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance HD KVM extension, resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.

High-resolution video, real-time control
The system supports resolutions up to 1920x1200 @ 60Hz using 8 bits per color and 4:4:4 chroma sampling. Up to four heads are transmitted within a single cable by utilizing DisplayPort 1.2 MST (multi-stream transport) technology.

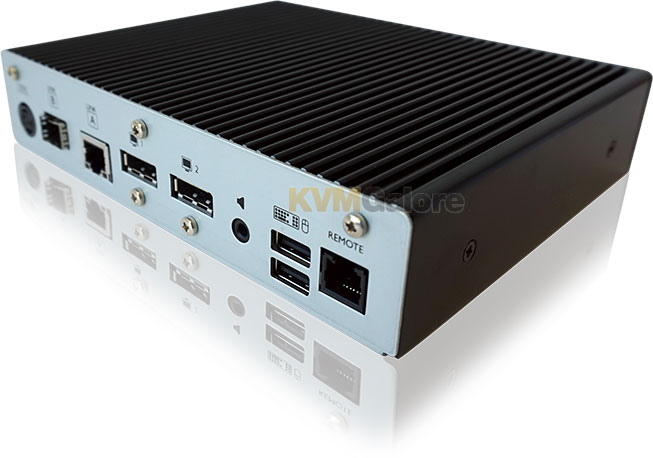

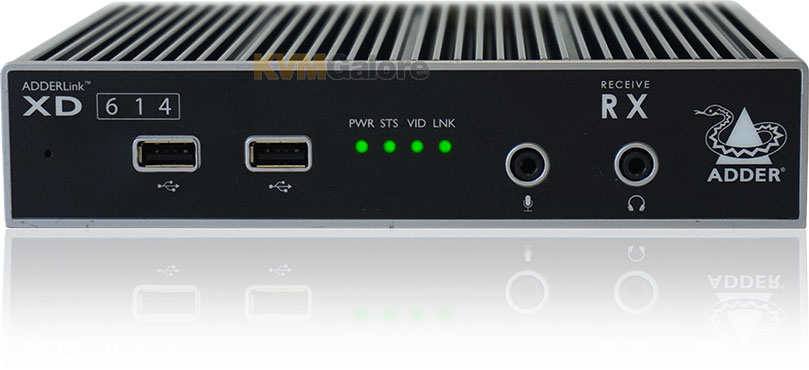

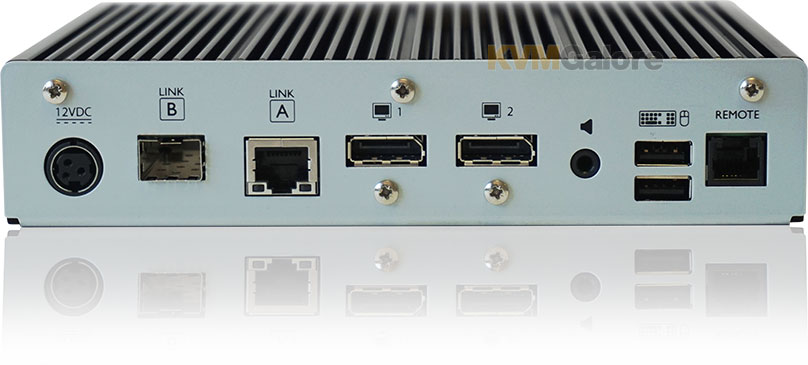

• An integral MST hub is included at the Receiver unit for users requiring dual-head output
• Four video heads are supported by either daisy-chaining MST-compliant monitors, or using standard monitors connected to an external MST hub

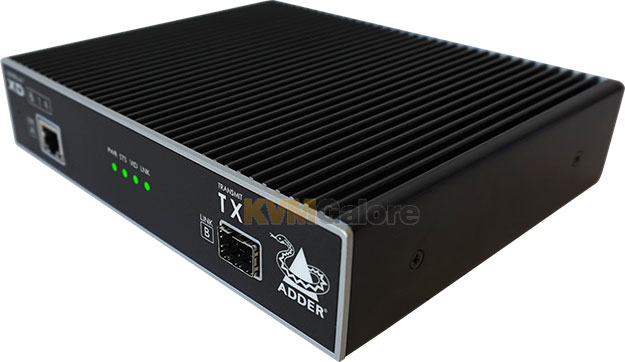

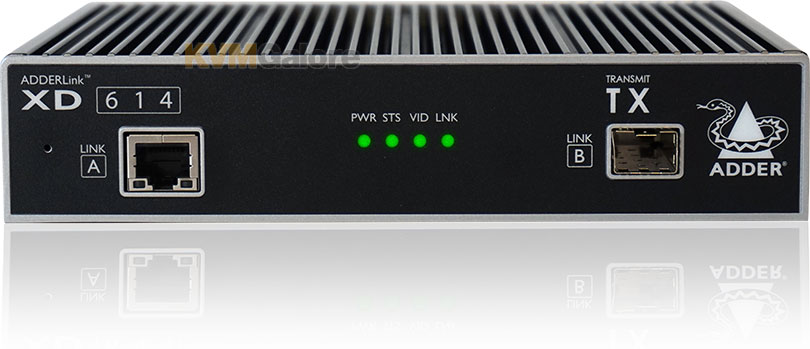

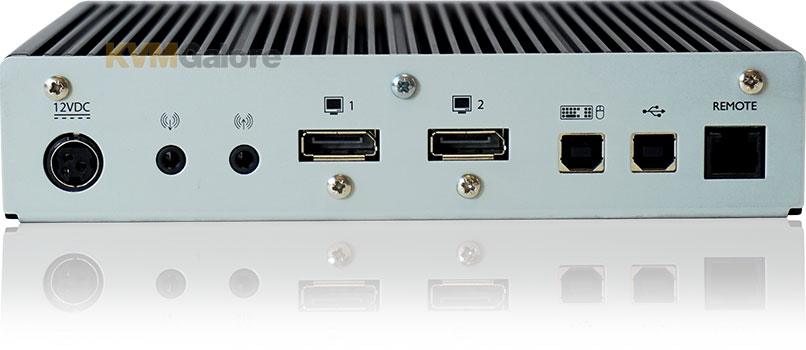

• A local pass-through video port is provided at the Transmitter unit

Single cable
HD video, USB 2.0 HID (human interface device) and audio are transmitted on a single CATx or fiber cable.

Up to 2.5 mile extension distances
ADDERLink XD614 supports both copper and fiber interfaces. It provides a range of up to 328 feet (100 m) over a CAT-6 cable link, and up to 2.48 miles (4 km) over an optical fiber link.

Emulated USB 2.0
Enables connection of any full and low speed USB HID from mouse and keyboards through to graphics tablets and jog shuttles.

EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Plug and Play
ADDERLink XD614 extender is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected.

Audio
• DisplayPort: Encapsulates two channels of 24-bit, 192kHz sampled “Pulse-code modulation” (PCM) audio with each video signal
• USB: Two channels of 24-bit, 96kHz sampled PCM audio
• Analog: Two channels of 24-bit, 96kHz stereo audio for line in/out, microphone and headphone/speakers

Serial communications
RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.

In the Box
1x Transmitter (Tx) unit
1x Receiver (Rx) unit
2x Power-supply units
1x DisplayPort cable (VSCD17)
1x USB cable (VSC24)
1x Audio cable
1x Quick-start guide
