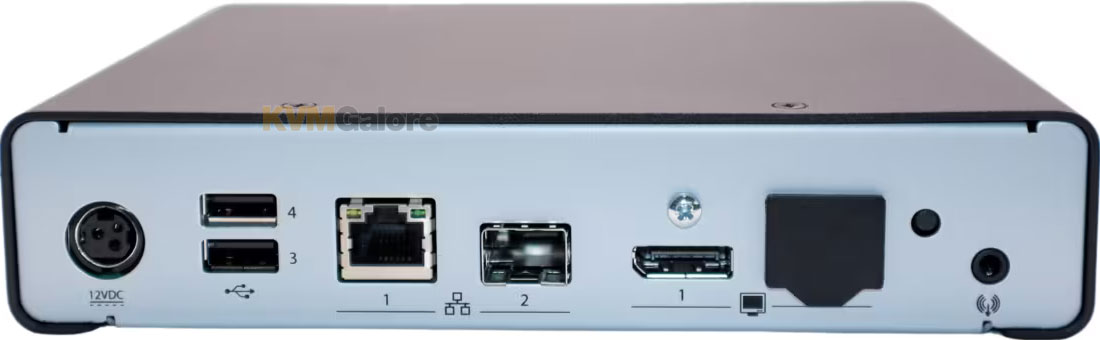

AVM-C1100-USR: A DisplayPort user-station (USR) over IP

a Receiver for extension and matrix of video, audio and USB KVM over a single cable

Note: CAM (computer access module) dongles - one for each computer to be controlled in the system - are purchased separately (see listing below)

Part of AdderView Matrix C1000 series, AdderView Matrix C1100 user station enables the use of standard IT infrastructure to extend the user away from the computer equipment and infrastructure.

Flexible and Scalable

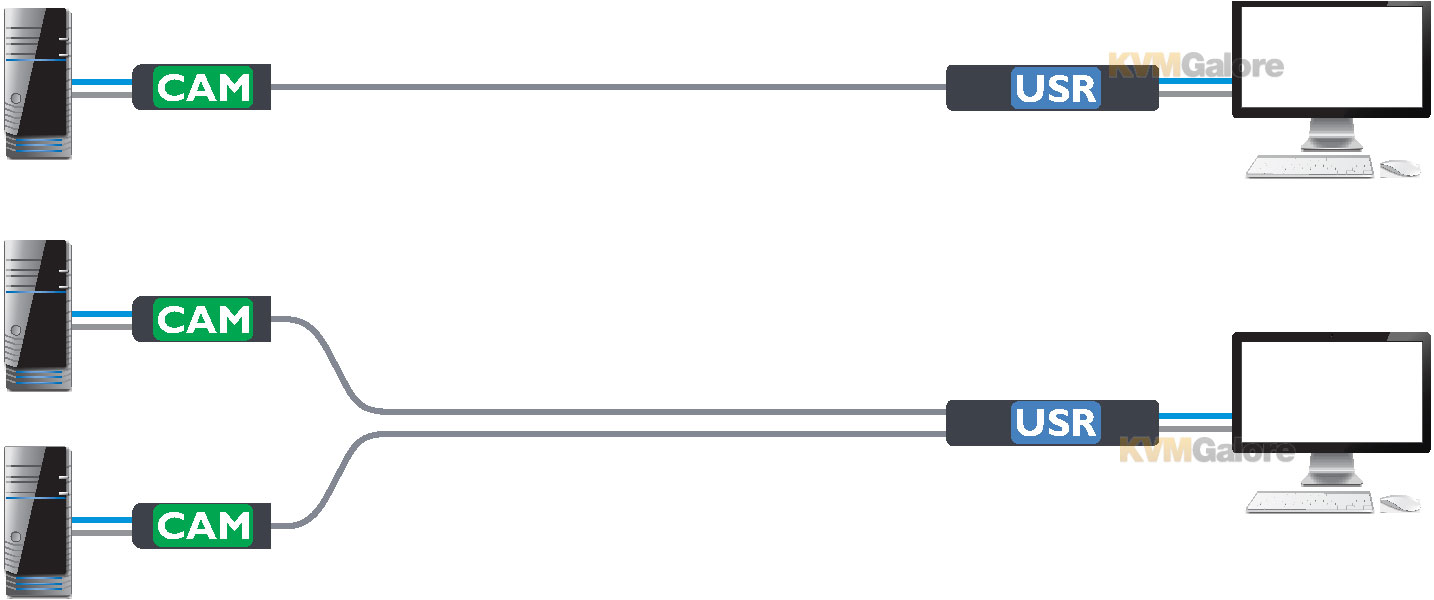

Each AdderView Matrix C1100 user station is the master controller of its own matrix and can have up to 16 sources programmed into its target list. A computer access module (CAM) "dongle" can connect to up to 256 different user stations.

Fast Video and USB Switching

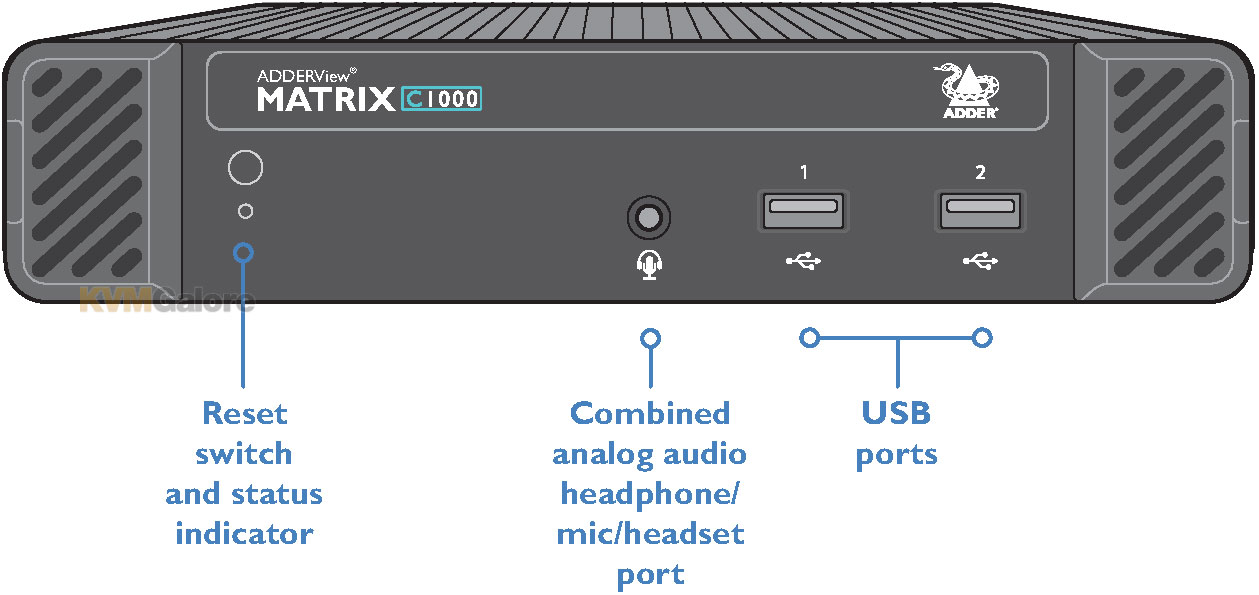

The switching time between computers is less than one second to provide a high quality user experience. Switching can be achieved by using an on-screen display (OSD) or by Hotkeys from a keyboard or external device.

Unlimited Extension Distances

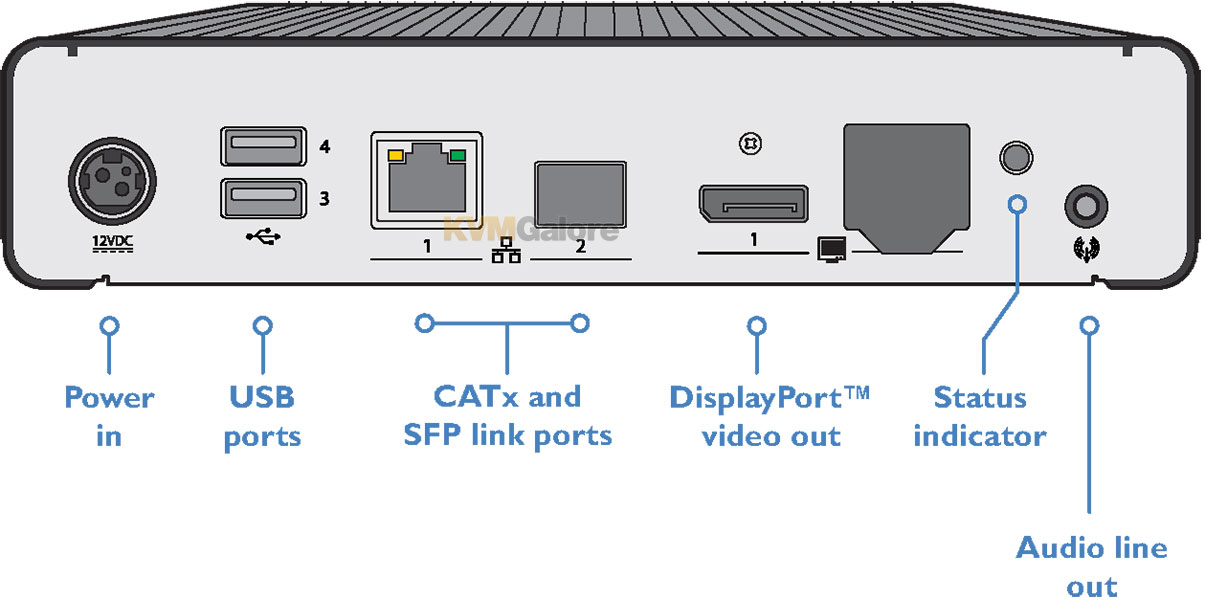

Extension distance is not limited to a single 330 foot (100 m) cable length. If you need to extend further, the unit is fitted with an SFP cage to accept fiber optic transceivers for much greater distances.

Perfect Digital Video in Real-Time
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the device provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.

USB 2.0 with Class Control
AdderView Matrix C1100 user station supports USB devices including graphics tablets, jog shuttles, joysticks, card readers and 3D explorers, alongside mass storage devices. The system can disable types of devices, meaning there is no need to physically block USB ports.

Digital Audio
The system can deliver stereo audio (bi-directional) or embedded video standard stereo audio (uni- directional).

Sharing and Collaboration

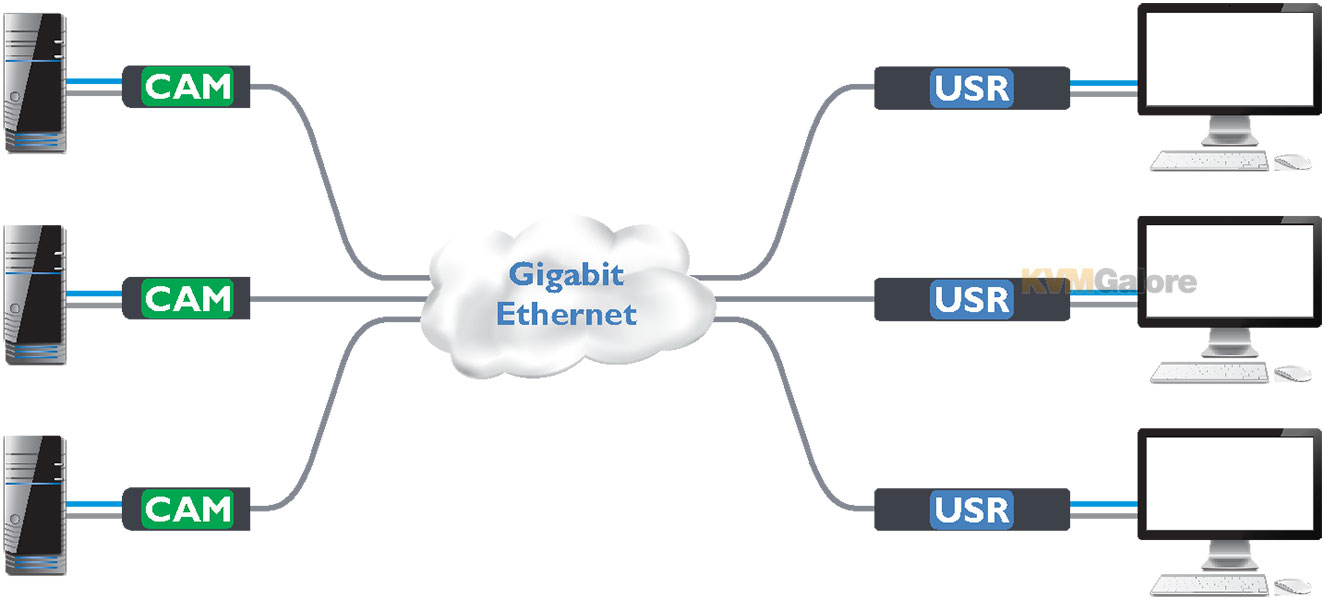

The system allows any user station to connect to any computer access module so different users can share a resource at the same time.

2k Resolution Support
ADDERView Matrix C1100 supports up to 2560x1600 @ 60Hz resolutions and can also support 1920 x 1200 up to 120Hz

EDID Management
Intelligent EDID management allows either the true characteristics of the monitor to be passed back to the computer or a fixed one. This ensures perfect video display without additional configuration.

Plug and Play
AdderView Matrix devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

AdderView Matrix C1000 Series - Enterprise-Grade IP KVM for Streamlined Applications
Streamlined IP KVM matrix solutions are perfect for organizations where ease of use and low maintenance are paramount. Typically used in an unmanaged configuration without a KVM management switch, these systems are designed for quick installation, reliable operation and managed with minimal technical knowledge required.

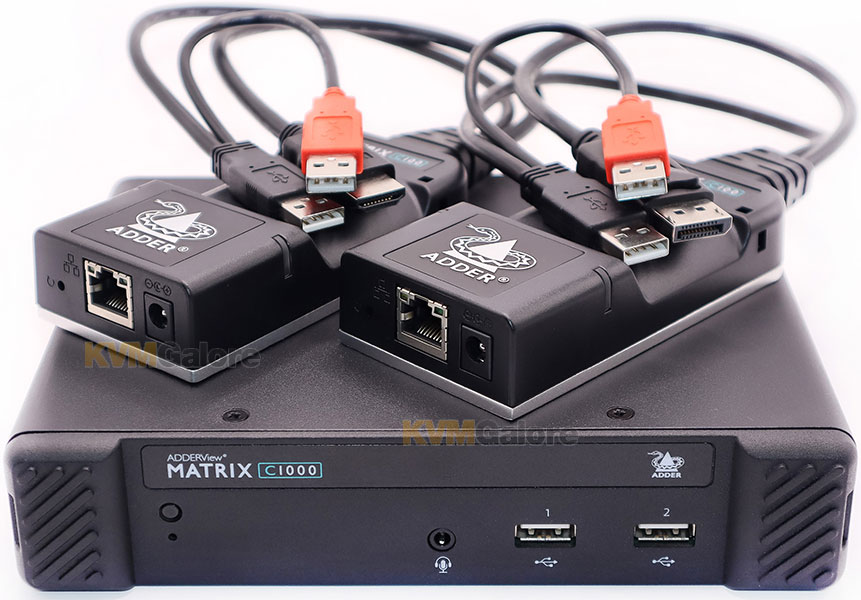

AdderView Matrix - the perfect solution for any organization looking for a simple and powerful IP KVM matrix - consists of:
• Computer access modules (CAM) "dongles" - one for each computer to be controlled in the system
• AdderView Matrix C1100 user stations - one for each user accessing and controling computers in the system
• AdderView Matrix switches, pre-configured to adhere to minimum AdderView Matrix specification, out-of-the-box

Easy to Use. Simple to Deploy
AdderView Matrix delivers a 'plug and play' experience that allows anyone with limited IT knowledge to deploy easily and quickly.

Space and Time Saving
Using ZeroU™ USB powered computer access modules, an AdderView Matrix can be installed without taking up extra space or resources in your rack.

Fast Video and USB Switching
With a switching time of less than a second, AdderView Matrix delivers unrivalled user experience. Switch quickly using an On-Screen Display or via keyboard/external device hotkeys.

Applications
Streamlined IP KVM matrix solutions are ideal for organizations prioritizing ease of use and low maintenance.

Typically deployed in an unmanaged configuration without a KVM management switch, these systems are designed for quick installation, reliable operation, and minimal technical expertise.

AdderView Matrix delivers unrivalled user experience across many applications and sectors. Examples include:

Broadcast Studios
Where the system is self-contained, and no additional security protocols are required beyond physical access to the studio – AdderView Matrix is a perfect solution.

AdderView Matrix delivers pixel-perfect, color-accurate video without artifacts using spatially lossless 1:1 pixel encoding.

Space Constrained Control Rooms
Outside broadcast trucks, ship control rooms or security control rooms, are typically places where space is at a premium and a simple-to-install IP KVM solution is a perfect fit.

An AdderView Matrix can be installed without occupying extra rack space or resources using ZeroU™ USB-powered modules.

Industrial Remote Access Control
Many industrial processes where an operator controls and monitors multiple systems will benefit from increased productivity with AdderView Matrix.

With AdderView Matrix, accessing remote areas of industrial complexes is easy. Extension distance is unlimited — just add fiber optic transceivers via the built-in SFP port to extend beyond 330 feet (100 m).

In the Box
1x AdderView Matrix C1100 user station
1x PSU-IEC-12VDC-1.5A: Mains power supply
1x IEC PSU cable of country code
