Expansion Units

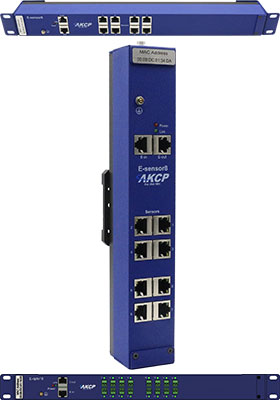

8 sensor-port and 16 dry-contact port expansion units

Expand your AKCP base environmental monitoring appliance unit with more sensor ports and dry-contact ports. Should you need more sensor ports or dry-contact ports (or both) on your securityProbe or sensorProbeX+, a cost effective way is to add E-Sensor8 and E-opto16 expansion units.

E-sensor8 are expansion modules that have 8x RJ-45 intelligent sensor ports and are connected to any of the RJ-45 expansion ports located on the front panel of securityProbe or sensorProbeX+ base units.

E-opto16 are expansion modules that have 16x opto-isolated dry-contact inputs and are connected to any of the RJ-45 expansion ports located on the front panel of securityProbe or sensorProbeX+ base units.

AKCP expansion units are connected to the base environmental monitoring appliance unit using a standard CAT-5 cable.

Up to 1000 feet cable length can be used between securityProbe or sensorProbeX+ base units and AKCP expansion units.

There is no limit to how many E-modules can be connected to a single base environmental monitoring appliance unit - it depends only on the number of sensors connected. A maximum of 500 data points can be monitored by securityProbe 5E base unit.

Additional expansion units can be daisy chained with up to 1000 feet of standard CAT-5 cable between each unit, using the E-Out / E-In ports on E-opto16.

Features and Benefits
• Daisy chain multiple E-modules including E-opto16 and E-opto16 combined
• Uses standard RJ-45 connections and CAT-5 cable
• Connect up to 500 AKCP intelligent sensors to one securityProbe 5E
• Connect up to 150 AKCP intelligent sensors to one sensorProbe+ (up to 4 expansion units)
