E-IS8N: An 8 sensor-port expansion unit

Expand your AKCP base environmental monitoring appliance unit with more sensor ports. Should you need more sensor ports on your securityProbe or sensorProbeX+, a cost effective way is to add E-Sensor8 expansion units.

E-sensor8 is an expansion module that has 8x RJ-45 intelligent sensor ports and is connected to any of the RJ-45 expansion ports located on the front panel of securityProbe or  sensorProbeX+ base units. E-sensor8 is connected to the base environmental monitoring appliance unit using a standard CAT-5 cable.

Up to 1000 feet cable length can be used between securityProbe or sensorProbeX+ base units and E-Sensor8.

Additional expansion units can be daisy chained with up to 1000 feet of standard CAT-5 cable between each unit, using the E-Out / E-In ports on E-Sensor8.

Complete Connectivity

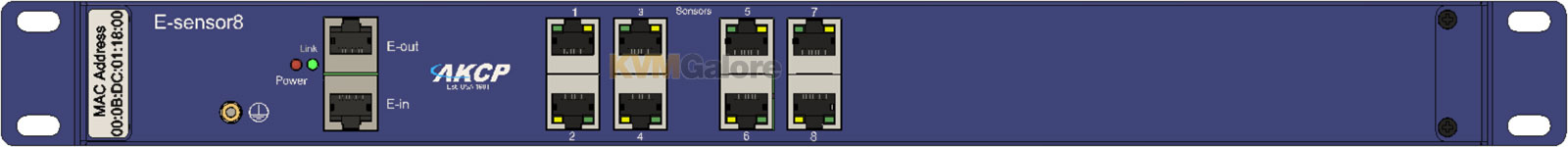

Most sensors within AKCP's complete line of intelligent sensors can be connected to the eight intelligent sensor ports. 16 LED's on the front provide each sensors visual condition, 8x red for status and 8x green for online.

A maximum of 600 total sensor points can be monitored from a single IP address.

Features and Benefits
• Daisy chain multiple E-modules including E-sensor8 and E-opto16 combined
• Uses standard RJ-45 connections and CAT-5 cable
• Compatible with most AKCP intelligent sensors (except for smart sensors for SPX+ only and TMP NIST2/3)
• Connect up to 500 AKCP intelligent sensors to one securityProbe 5E
• Connect up to 150 AKCP intelligent sensors to one sensorProbe+ (up to 4 expansion units)

Package Includes
1x E-Sensor8 expansion unit
2x Rack-mount ears
1x 5 foot long CAT-5 cable for connecting to base unit
1x External 5.5V 3A power adapter (100V~240V - 0.22A)
