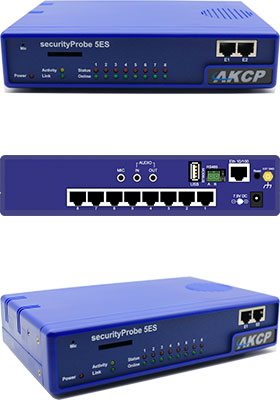

![securityProbe 5ES securityProbe 5ES](images/SEC5ES_P.jpg)

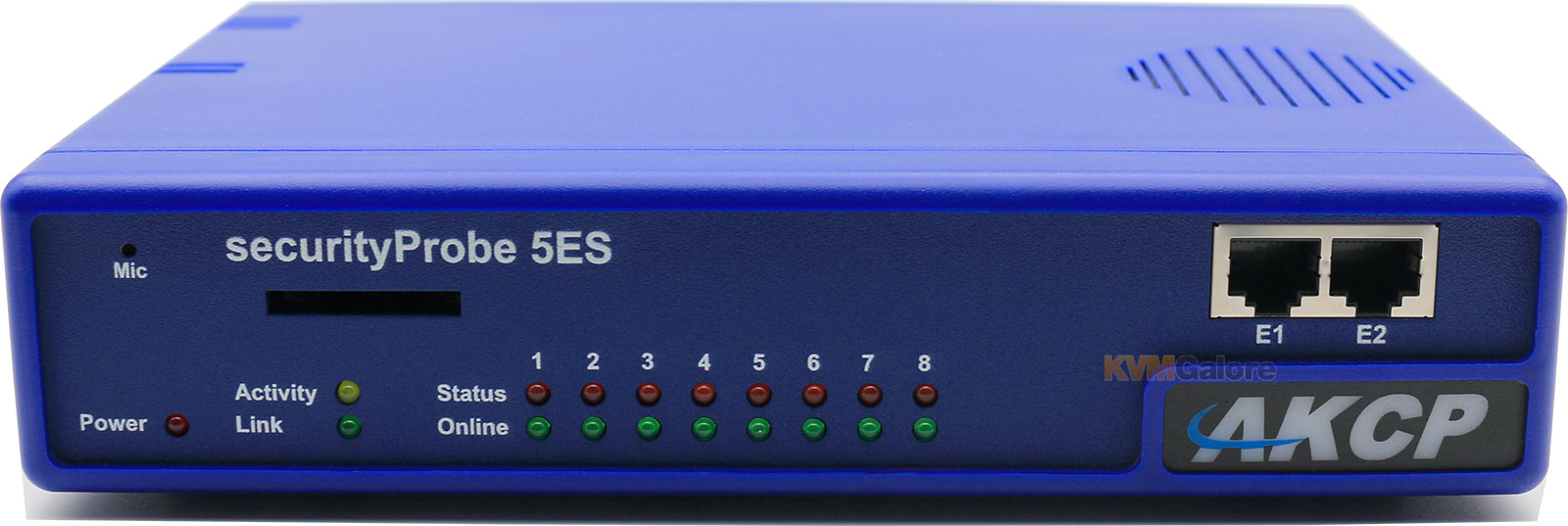

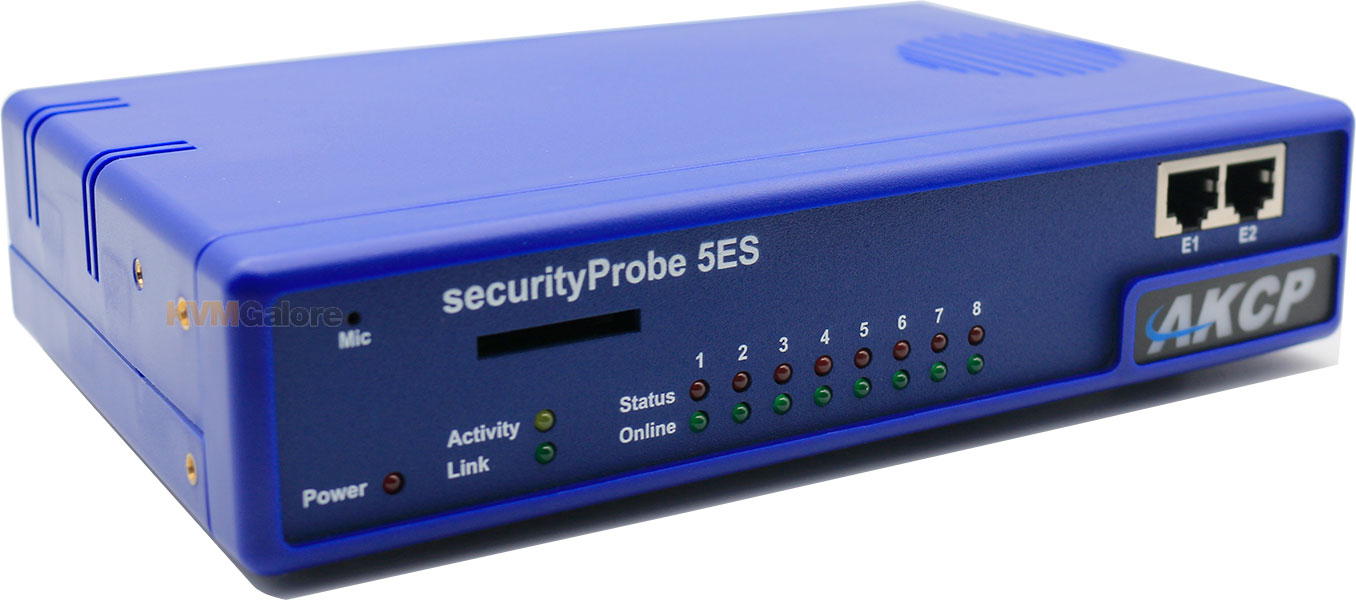

SEC5ES: Expandable, Linux-based environmental monitoring appliance
with 8x intelligent sensor ports, built-in Modbus and audio support, and optional modem support

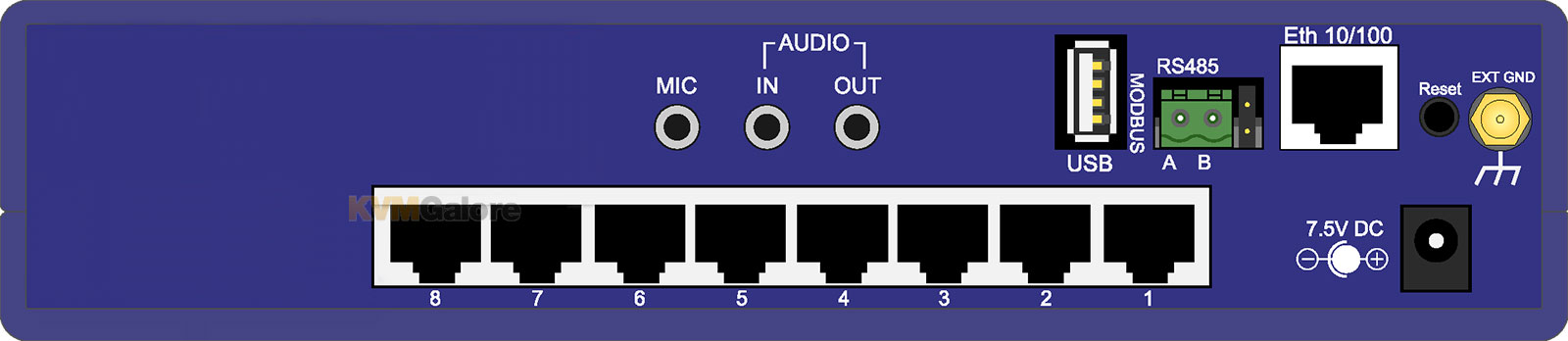

• 1U rack-mount form factor with rack-mount ears included
• Eight (8) sensor ports
• One (1) Modbus port
• Two (2) expansion ports
• One (1) USB modem port
• Audio support with internal microphone
• Dual temperature and humidity sensor included
AKCP securityProbe 5ES is an advanced remote environmental sensor monitoring appliance that can be deployed in a wide variety of applications including data-center environmental monitoring, warehouse temperature monitoring, cold-storage temperature monitoring, fuel / generator monitoring, and other remote-site monitoring applications.
AKCP securityProbe 5ES allows you to monitor the physical environment and receive alerts of any disturbances, such as unauthorized intruders, security breaches, high temperatures, smoke, water leakages, power outages and more.
Compatible with the AKCP range of intelligent sensors, securityProbe 5ES provides a complete environmental, access control and security solution for up to 500 connected sensors. Up to 8 of AKCP's intelligent sensors can be directly connected to securityProbe 5ES. When plugged in, sensors automatically configure themselves and go online. Using either E-sensor8, or E-opto16 expansion modules, up to 500 sensors can be connected to a single unit.
AKCP's easy-to-use web based interface allows you to setup securityProbe 5ES within minutes. When online, the sensors use their 4 levels of threshold checking and report any status change.
securityProbe 5ES has a Linux operating system running an iMX25 CPU. An additional 2 Gigabytes SD card can be installed to provide greater storage capacity. It is TCP/IP compliant and runs lighttpd web server including https (SSL), Bash, Perl, Telnet, PHP, Email and Nagios.
An internal GSM cellular modem is available as an option for sites with unreliable network connections.
securityProbe 5ES has an easy-to use web-based user interface for sensor configuration, data collection and extensive graphing. The web-based interface is written in PHP allowing end-user changes such as language translation.
Complete SNMP functions including SNMP v3 encryption are supported.
securityProbe 5ES also supports Modbus Master/Slave, Modbus RTU and Modbus over TCP / IP creating a unique, easy to configure Modbus to SNMP gateway.
Optional 4G internal modems can be installed to send SMS alerts directly from the securityProbe device, or for communicating in sites with no wired network available.
securityProbe 5ES has a battery backed time of day clock for accurate record keeping.
securityProbe 5ES can be powered via dual AC or DC inputs, providing redundancy for powering the device. The 40-60VDC external power supply features dual DC inputs with a single 9VDC output for powering the securityProbe 5ES. This is ideal for telecoms applications where DC power comes straight into the cabinets, or in a data center with dual PDUs. Utilize 2x 12VDC power adapters, one on each AC power source, connect them to the DCW075 with the output to the DC jack on the securityProbe 5ES.
Sensor Graphing
securityProbe 5ES integrates and displays graphs of all sensor data in its web-based user interface. The individual graph (day, week, month and year) for each sensor type can be customized, simply by modifying the script template used to generate a particular graph. RRD tool is used to build an embedded database of sensor data.
This data can be accessed from the web interface, or downloaded to a remote PC. MRTG can be used to generate real-time graphs of sensor data on a remote website.
Notifications
Notifications and alarms can be dependent on the states of multiple sensors, and can be configured to escalate in severity over time. The notification system can alert you of a problem via email, SMS messages and telephone calls, (additional hardware required), or send a message to any commercial network monitoring system using SNMP traps. securityProbe 5ES can automatically switch a relay on or off, wake-up or shutdown a remote server, send pictures and data via FTP, send a FAX, run your custom script and many more versatile functions.
securityProbe 5ES can automatically push out the complete status of the unit and sensors via the Heartbeat Message feature. This can be setup to be sent through e-mail, SMS or SNMP traps. A HTTP get script can also be chosen, allowing the data to be pushed to web servers.
False Message Filter
In order to prevent false alarms, securityProbe 5ES allows extensive filtering of events. You can limit events based on the time of day or the day of the week. You can also limit the number of alerts per hour, so that you are not swamped with many messages. This is especially important with the sensor like the motion detector where you may want to process an event only when the business premises are closed.
Centralized Management
If you are deploying multiple AKCP environment monitoring appliances, you can centrally manage them all and monitor their data through AKCPro Server - a best-in-class data center infrastructure management software (DCIM) with a focus on temperature and airflow analysis.
• Learn more about AKCPro Server
Self-hosted AKCPro Server is FREE when connected to up to 4 AKCP environmental monitoring appliances.
• Download self-hosted AKCPro Server here
Cloud AKCPro Server1 is FREE for the first year when connected to up to 4 AKCP environmental monitoring appliances2
• Register an account with AKCP here to use the Cloud AKCPro Server
Camera Support
securityProbe 5ES supports IP camera video streams through a connection to self-hosted AKCPro Server (running locally on your server).
Using self-hosted AKCPro Server, images from IP cameras can be synchronized with sensor events (e.g. images captured from an IP camera can be synchronized with a security sensor that's being triggered when a door, or window, opens, providing instant visual feedback on the situation).
Features and Benefits
• Embedded web server displays sensor information
• Receive notifications of anomalous events via email, SMS / MMS, SNMP traps, and many more
• Integrates with network management systems via SNMPv1 and Encrypted SNMPv3
• Ability to connect external GPRS / GSM modem, Bluetooth and WiFi USB adapters
• Uses Linux operating system for maximum stability and flexibility
• Virtual Sensors monitor power, Modbus, network devices, and other SNMP based equipment
• Built-in graphing and data logging, internally or to a remote PC
• Platform independent; free firmware upgrades and utilities from AKCP
• Monitor up to 500 intelligent sensors using expansion modules (E-Opto16 and E-Sensor8)
• Compatible with complete range of AKCP intelligent sensors
• Full Modbus support : Modbus Master / Slave, Modbus RTU, Modbus over TCP / IP
• Manufactured using highly integrated, low power surface mount technology to ensure long term reliability
Package Includes
1x securityProbe 5ES
2x Rack-mount ears
1x Dual temperature and humidity sensor with a 5 foot cable that can be plugged in to a sensor port (THS00)
1x 7.5VDC power adapter
Need help? Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.
1) Cloud AKCPro Server does not support IP cameras, and does not support Access Control products (Door Control Unit and RFID Swing Handle Locks).
2) If you need to support more than 4 AKCP environmental monitoring appliances, cloud licenses need to be purchased for all supported appliances.
