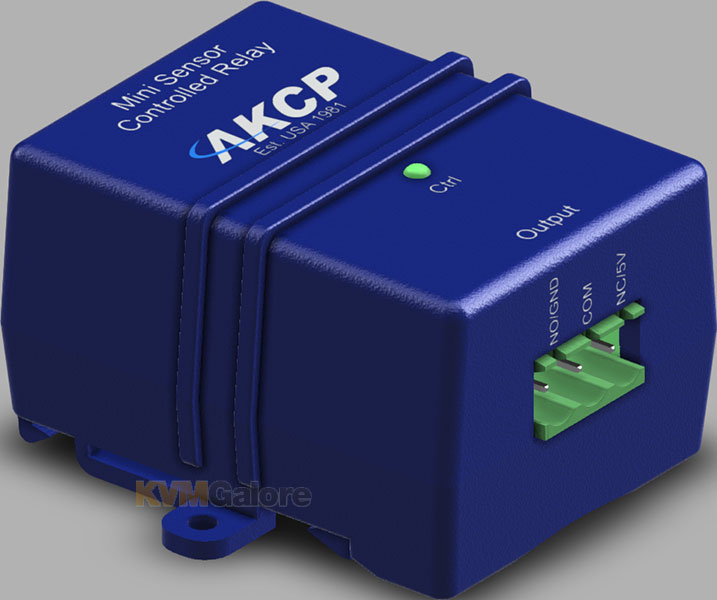

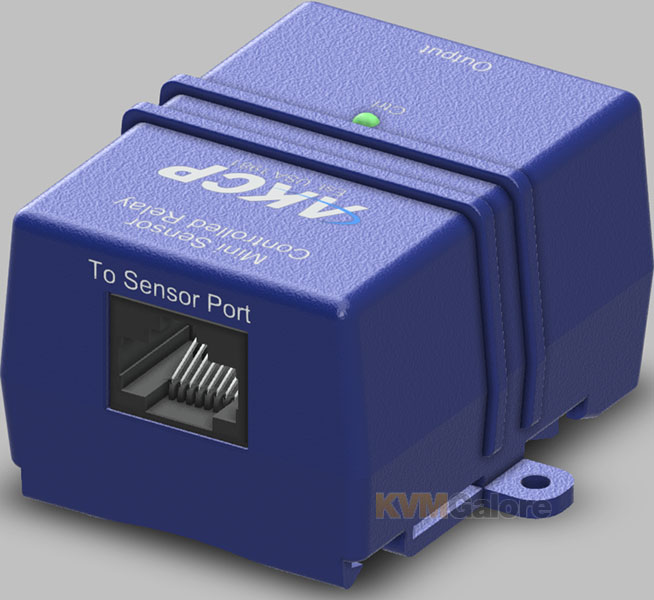

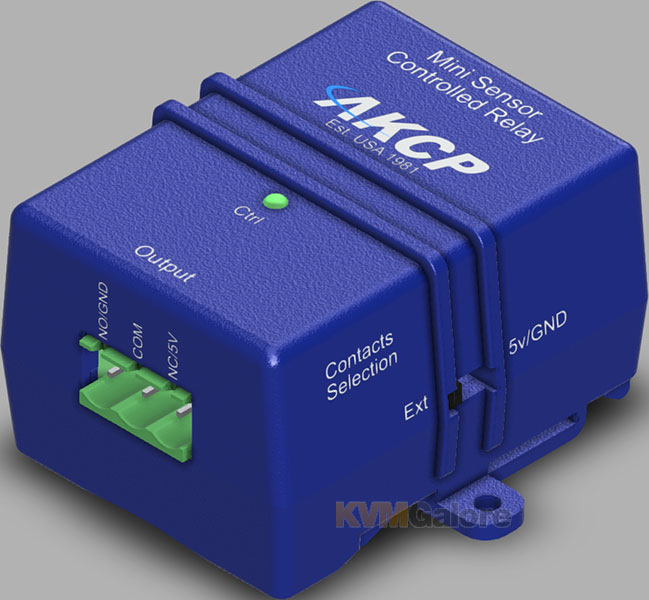

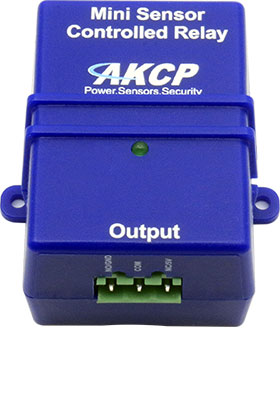

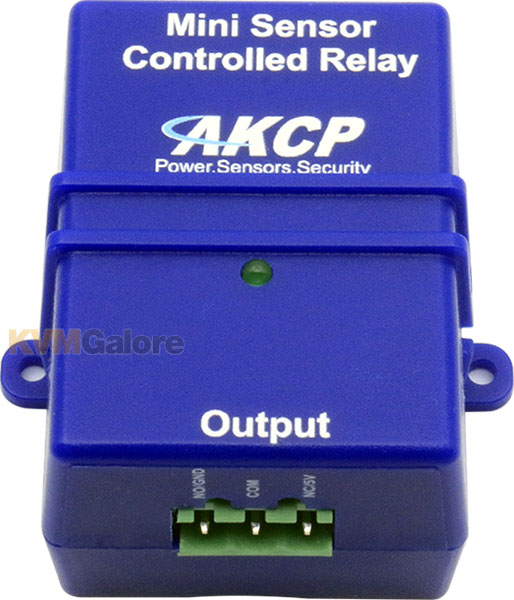

MSCR: Mini sensor-controlled relay
drives larger relays with low current output from sensorProbe+
Mini sensor-controlled relay can control the electrical power to devices managed over the Internet with easy configuration and integration with sensorProbe-series environmental monitoring appliances. If you have equipment with a relay that you would like to switch based on sensor input, this adapter will output 200mA - 5V DC based on a sensors status. Use this smaller relay as to drive the larger relay on your appliance.
Mini sensor-controlled relay is easily controlled by any of AKCP's extensive selection of sensors. The relay can provide automatic responses to sensor alerts. This is useful, for example, to switch on the fan when the room temperature rises beyond the threshold level or to turn on a light when the motion detector is triggered.
Setting up Mini sensor-controlled relay is easy with its built in autosense feature and user friendly web interface.
A simple, point and click web manager can set to link Mini sensor-controlled relay to a sensor. When the sensor goes to the chosen state, for example, High Critical, the relay can be made to cycle, which will turn on and then turn off the external device for the selected period of time. In this case, when the sensor goes High Critical, the automatic response system will cycle the relay for 20 seconds. Users can easily change the fields in the relay settings menu according to their needs.
Mini sensor-controlled relay provides one high power SPST 5V relay. It monitors the power and load and will accept a control signal which is sent from the sensorProbe or securityProbe base unit.
Mini sensor-controlled relay has a built in fuse that provides protection for the external devices from possible damage due to over voltages or high current.
Status of Mini sensor-controlled relay is reported by 4 LEDs on the board. Remote monitoring of the status is available using SNMP traps, web interface, e-mail and SMS.
SNMP Compatible
Mini sensor-controlled relay can also be controlled via external computers using the included SNMP command line utilities either interactively or programmatically. In addition, Mini sensor-controlled relay can be controlled via the integrated web interface on the sensorProbe environmental monitoring appliance.
Advanced Materials
Mini sensor-controlled relay includes Metal Oxide Varistors (MOVs) and Snubber circuits to protect the open contacts of the relay from high voltage spikes or noise transients.
Increased Response Time
Mini sensor-controlled relay with the automatic response feature can give the users more flexibility in responding to the environmental alerts. Automatic response eliminates the need for the user intervention during the alarm condition.
Package Includes
1x Mini sensor-controlled relay (normally closed)
1x 5 foot CAT-5 cables with 2x RJ45 connectors (to connect relay to sensorProb monitoring appliance)
