SP-WTS-US: A wireless environmental monitoring server*

wirelessly connects up to 30 4-port sensor pods, communicating over long distance with LoRa™ based wireless communications

sensorProbe Wireless Tunnel™ server collects, stores and graphs data from sensorProbe+ Wireless Tunnel™ sensor-pods (SP-WT). sensorProbe Wireless Tunnel™ server provides Ethernet connectivity to access sensor data via the web UI, SNMP, Modbus TCP/IP or MQTT.

In addition to Internet connectivity, sensorProbe Wireless Tunnel™ server also supports the connection of 3 AKCP intelligent sensors.

AKCPro Server provides central monitoring of multiple sensorProbe Wireless Tunnel™ servers.

Up to 30 sensorProbe+ Wireless Tunnel™ sensor-pods (SP-WT) can connect to one sensorProbe+ Wireless Tunnel™ server* (SP-WTS), with 4 sensors on each pod, supporting 120 sensors from only 30 radios.

sensorProbe+ Wireless Tunnel™ sensor-pods (SP-WT) are  equipped with Semtech's LoRa based radio technology, utilizing the AKCP Wireless Tunnel™ communications protocol. Up to 4 AKCP intelligent sensors can get connected to each sensorProbe Wireless Tunnel™ sensor-pod.

Sensors' data is transmitted wirelessly to the sensorProbe+ Wireless Tunnel™ server* (SP-WTS). This makes for rapid deployment of a large number of sensors that can communicate over long distance with LoRa™ based wireless communications.

AKCP's proprietary Wireless Tunnel™ protocol provides guaranteed message delivery without loss of data and low power utilization for superior battery life.

Build your own private LoRa based network without the need for any cloud services. Data is transmitted to the sensorProbe Wireless Tunnel server (SP-WTS). Multiple SP-WTS can be monitored centrally with AKCPro Server, which can run locally or on a cloud service.

Wireless Tunnel™ Technology - The World's Most Advanced LoRa™ Solution
AKCP Wireless Tunnel™ technology builds on standard LoRaWAN™ with AKCP's own proprietary software and hardware. Wireless Tunnel™ radio is an energy efficient, long range and low cost bi-directional communications technology. Radio frequency modulation provides deep indoor penetration through walls, elevator shafts and basements. AKCP has introduced proprietary algorithms increasing efficiency and reliability of the wireless solution, applicable for critical infrastructure monitoring.
• Immediate broadcast upon sensor status change
• "Listen before talk" to minimize packet collisions
• Queuing and re-broadcast of undelivered messages
• Increased battery life by using less airtime with shortest spread factor
• Shorter airtime means more frequent broadcasts are possible
• Tuned antennas, maximum range with shortest spreading factor

Wireless Tunnel™ Advantages
• Rapid deployment
• Save on cabling and installation costs
• Fewer base units and IP addresses
• Easy to expand with future requirements

Features and Benefits
• Guaranteed message delivery
• Proprietary AKCP Wireless Tunnel™ protocol
• Long range radio communications (up to 3 km in open space)
• Internal antenna tuned for greater signal strength
• Plugin AKCP intelligent sensors

Package Includes
1x sensorProbe+ Wireless Tunnel server with 3x sensor ports

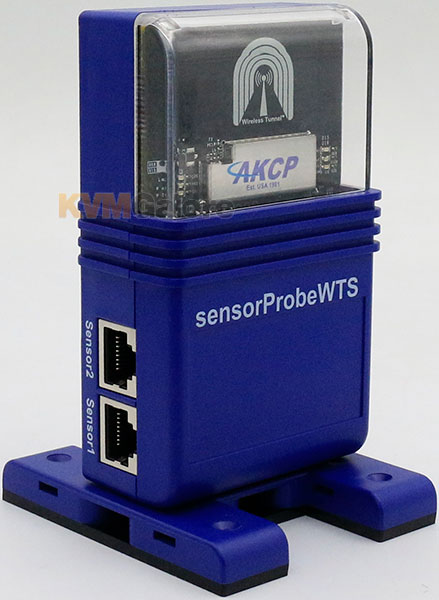

1x Magnetic mounting base
1x 5.5VDC 3A power adapter with IEC inlet and locking DC jack connector [5AVAC3-L]

* At least one sensorProbe Wireless Tunnel™ server (SP-WTS) needs to be deployed to facilitate the sensorProbe Wireless Tunnel™ system, with up to 30 SP-WT units (with up to 120 sensors) wirelessly communicating with one sensorProbe+ Wireless Tunnel™ server.
