![sensorProbe2+ Basic sensorProbe2+ Basic](images/SP2+B-PoE_P.jpg)

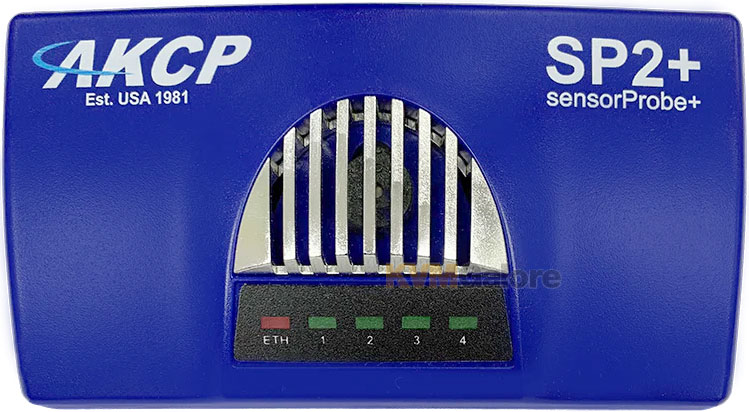

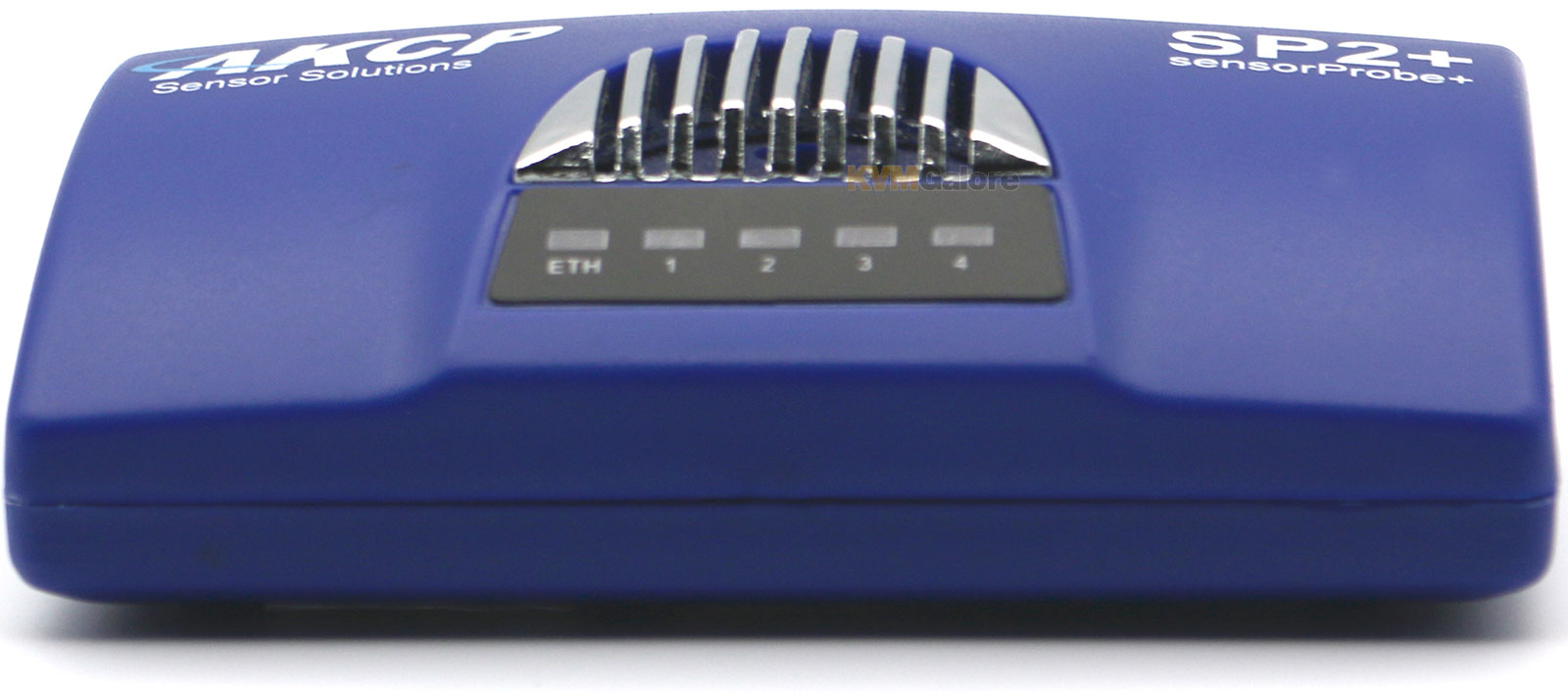

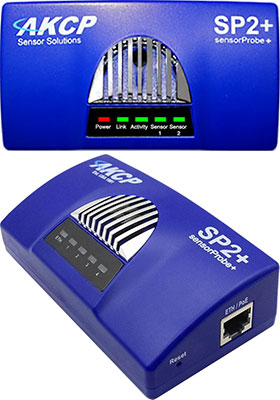

SP2+B: Web-enabled environmental monitoring appliance
with 2x sensor-ports* for external sensors
SensorProbe2+ compact environmental monitoring appliance monitors and manages environmental, security and power conditions over IP, providing early warnings before critical events turn into a disaster.

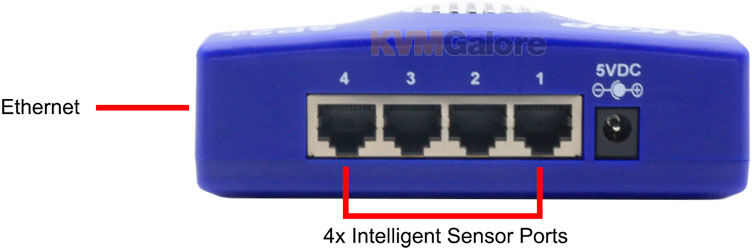

sensorProbe2+ Basic is equipped with 4x intelligent sensor ports* (2x of which are locked) to connect a wide range of AKCP sensors.
SensorProbe2+ monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke with a simple, easy-to-use web interface. SensorProbe2+ allows you to connect an external AKCP sensor such as temperature sensor, thermal map or water leak detection to its intelligent sensor port. You may also connect the sensor splitter box with cabinet thermal maps and contactless current meter, and you have a complete monitoring solution for your rack. With SensorProbe2+ you can monitor temperature front and rear, top middle, and bottom. Check your humidity and current consumption.
When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via email-to-SMS).
sensorProbe2+ Basic comes with a basic set of software functions which can be upgraded through a software license to a Pro version (see table and listing below)** to include support for IPv6, SNMP v3, and up to 80 virtual sensors, among others.
Like with all other AKCP environmental monitors - running the same user interface as the rest of the sensorProbe+ product line - SensorProbe2+ allows users to keep an eye on remote conditions from a secure web interface and receive SNMP, E-mail, text message and voice call alert notifications when user-adjustable thresholds are exceeded.
The web interface provides an overview of environmental measurements with real time sensor data. All measurements are logged allowing users to collect data for trending and capacity management.
SensorProbe2+ offers secure access through the web and supports HTTP and HTTPS protocols. Easily view and log temperature, relative humidity / dew point and external sensors over the intranet or the Web. No software required - securely access the graphical user interface from a web browser.

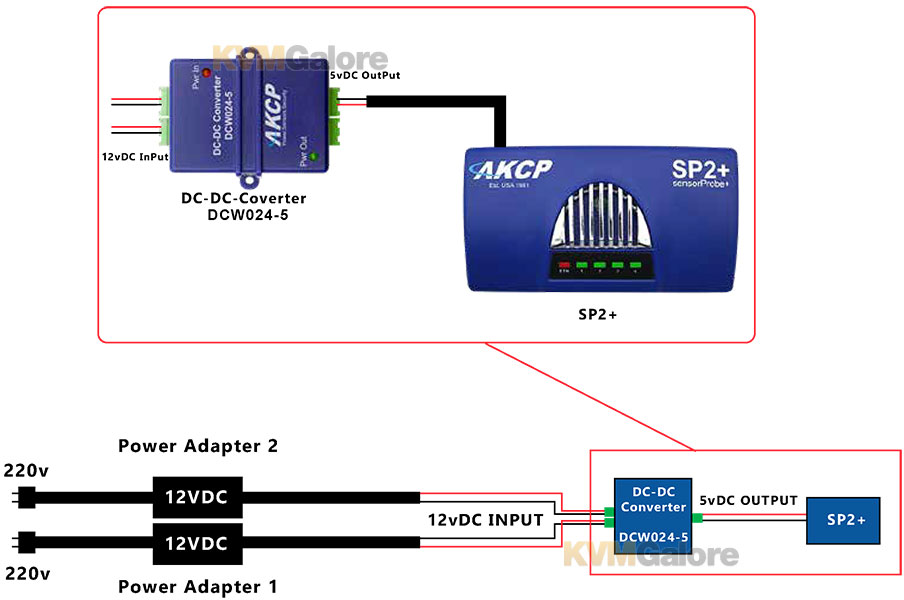

SensorProbe2+ can also be powered with dual AC or DC inputs, available through AKCP's external DC-DC conversion box, providing redundancy for powering the device.
The 12-24VDC or 48-60VDC external power supplies feature dual DC inputs with a single 5VDC output for powering sensorProbe2+. This is ideal for telecoms applications where DC power comes straight into the cabinets. If the rack is equipped with dual PDUs, users can utilize 2x 12VDC power adapters, one on each AC power source, and connect them to the DC-DC conversion box with the output to the DC jack on sensorProbe2+.
Options (purchased separately - see listing below) may include:
• 5 Dry-Contact Ports via Sensor Port - Add 5 dry contacts to an RJ45 sensor port
• Dry-Contact Cables - Connect an I/O dry-contact to an RJ45 sensor port
• EXP - Port that is compatible with CCU, E-Opto16 and E-Sensor8 expansion units, as well as doubling as a Modbus RS485 port for monitoring a generator, or other industrial equipment
sensorProbe2+ Basic is manufactured using highly integrated, low power surface mount technology to ensure long term reliability.
No Software Required

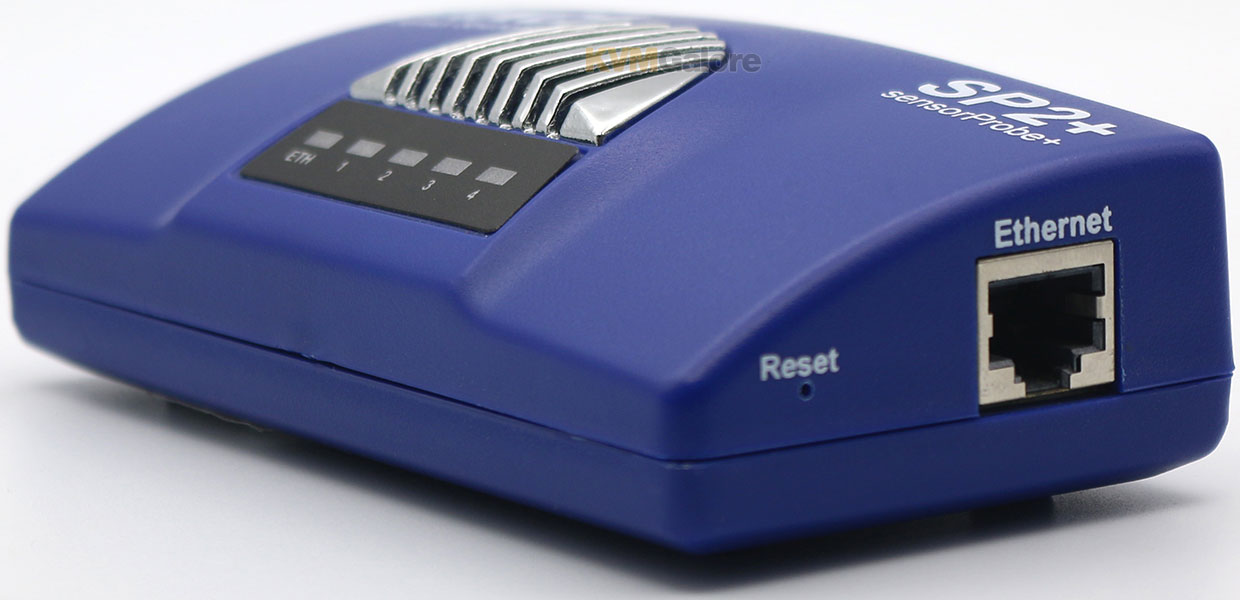

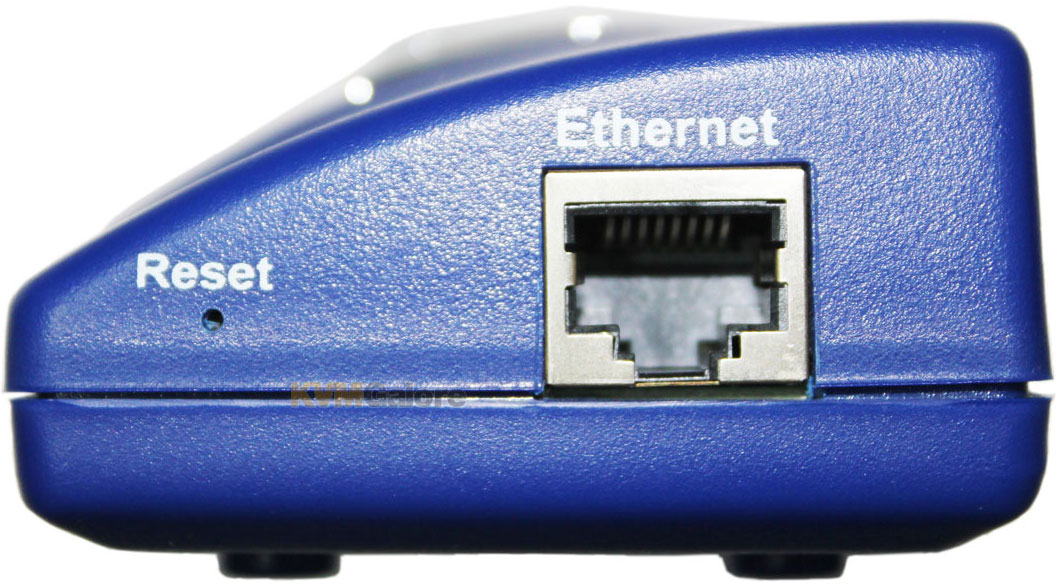

SensorProbe2+ is simple to install and use, requiring no special software other than a standard Web Browser. SensorProbe2+ connects to an Ethernet network with a standard RJ45 connector and sends data in standard TCP/IP packets. It is easily configured with a simple menu using a Web Browser. Pro version can be password protected with 2 access account level types: Administrator, and View Only. From within an Intranet or over the Internet, the user can securely access the monitoring appliance by entering its IP address.
Centralized Management
If you are deploying multiple AKCP environment monitoring appliances, you can centrally manage them all and monitor their data through AKCPro Server - a best-in-class data center infrastructure management software (DCIM) with a focus on temperature and airflow analysis.
• Learn more about AKCPro Server
Self-hosted AKCPro Server is FREE when connected to up to 4 AKCP environmental monitoring appliances.
• Download self-hosted AKCPro Server here
Cloud AKCPro Server1 is FREE for the first year when connected to up to 4 AKCP environmental monitoring appliances2
• Register an account with AKCP here to use the Cloud AKCPro Server
Camera Support
SensorProbe2+ supports IP camera video streams through a connection to self-hosted AKCPro Server (running locally on your server).
Using self-hosted AKCPro Server, images from IP cameras can be synchronized with sensor events (e.g. images captured from an IP camera can be synchronized with a security sensor that's being triggered when a door, or window, opens, providing instant visual feedback on the situation).
Package Includes
1x sensorProbe2+ Basic with 2x activated intelligent sensor ports
1x 1x external 100V~240V power adapter
Need help? Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.
* 2x sensor ports are enabled by default, with a further 2 being unlocked with a one-time Pro license upgrade (see listing below).
** Requires Pro license.
1) Cloud AKCPro Server does not support IP cameras, and does not support Access Control products (Door Control Unit and RFID Swing Handle Locks).
2) If you need to support more than 4 AKCP environmental monitoring appliances, cloud licenses need to be purchased for all supported appliances.
