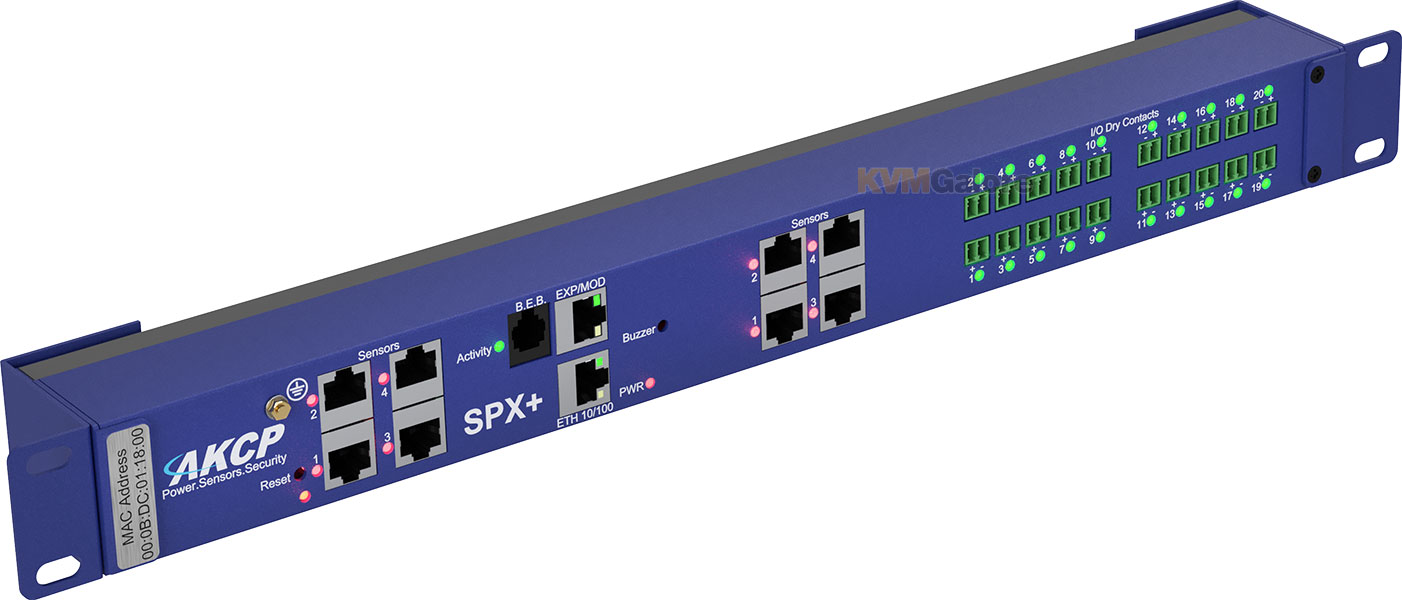

sensorProbeX+ IP-based SNMP environmental monitoring appliance

with 8x sensor ports, 20x dry-contact I/O ports, 40-60VDC input, 1x EXP port (which also functions as an RS485 Modbus port), and 1x basic expansion bus (BEB) port, PoE

sensorProbeX+ (SPX+) is a versatile IP based environmental monitoring appliance that supports the connection of AKCP's intelligent sensors, dry-contact I/O's and 0-5VDC or 4-20mAmp analog inputs, control relay outputs and monitor third party devices.

SPX+ is compatible with all AKCP sensors, including the "smart sensors" such as swing handle locks, cabinet thermal maps, LCD display and battery monitoring sensors.

You may monitor multiple SPX+ units from AKCPro Server for centralized monitoring and management of all devices.

SPX+ has a customizable modular design.

Every SPX+ features an MCU module - the core of sensorProbeX+, it forms the base configuration of every unit. It includes:
4x Intelligent sensor ports
1x 10/100 Ethernet port
1x Dual-purpose expansion (EXP) port that functions both as an RS485 Modbus* port as well as for connecting with AKCP expansion modules
1x Basic expansion bus (BEB) port that connects SPX+ base unit to SPX+ BEB expansion units, with a maximum of 4x BEB units daisy-chained to a single base sensorProbeX+ (SPX+) environmental monitoring appliance (up to a maximum of 33 feet away from the base unit for the total chain).

Additional modules include:

• sensor4: provides 4 additional intelligent sensor ports, allowing you to build your SPX+ to your requirements. Connect a wide range of intelligent sensors and smartRack sensors such
as Cabinet Thermal Maps, Programmable LCD Display and RFID Swing Handle Locks.

• Dry contacts: Dry contact modules can be added in x10 and x20 blocks. The dry contacts can be ordered as I/O, isolated input only (internal 5V) and isolated input only (external 5-30V). Dry contacts can be used to monitor a variety of third party devices and alarm panels.

• Cellular Modem: 4G cellular data modem module provides a primary or backup method of communication. Send SMS and e-mail alerts directly from the device through the cell network. Ideal for remote site locations and those with unreliable Internet connection.

• 4x Mini Relays: This module includes 4x mini DC relays. Use them to switch on/off low current devices directly, or use them to drive larger relays. Ideal for systems and control, building and industrial automation.

• 4x Analog Inputs: This module is ideal for connecting third party analog sensors with a 0-5VDC or 4-20mAmp scale output. Many industrial sensors are available with this scale output, opening up the possibilities of monitoring many different sensors not provided by AKCP.

• 2x Mini Relays and 2x Analog Inputs:  This module is a combination of 2x relays and 2x 0-5VDC or 4-20mA analog sensor inputs.

• Internal Mini UPS:  This module is useful in situations where SPX+ may face power outages. An internal battery backup using 4x AA batteries can power SPX+ for several hours (depending on sensors connected, alerts generated etc). This is ample time to be able to continue to send alerts, and most importantly notify you of the power situation so the main power can be restored.
Ideally combined with the internal cellular data modem, SMS alerts can be sent even if the rest of your network is down.

sensorProbeX+ Expansion Architecture
You may expand the capacity and capability of your AKCP environmental monitoring appliance by locally (in the same rack) connecting BEB expansion units, or by connecting EXP devices located up to 1000 feet away. Every SPX+ comes with both EXP (Expansion) and BEB (Basic Expansion Bus) ports. These expansion ports give users the ability to add functionality to their base sensorProbeX+ (SPX+) environmental monitoring appliance, so the monitoring system can grow with any growing needs.

• Basic Expansion Bus (BEB)
BEB expansion is suitable for short distance expansion within the rack. Using a base (master) sensorProbeX+ (SPX+) unit together with SPX+ BEB (Basic Expansion Bus) units, users can increase the number of sensor ports and dry contacts available. Recommended for use over a short distance within the same rack only, BEB expansion units provide a cost effective way to expand a sensorProbeX+ (SPX+) environmental monitoring system. A maximum of 4x BEB units can be connected (daisy-chained) to a single SPX+ base unit. The maximum distance from a base (master) SPX+ unit to the last unit in the BEB expansion chain is 33 feet (10 m).

• RS485 Expansion (EXP)
Using a base (master) sensorProbeX+ (SPX+) together with EXP units, users can add dry contacts and sensor ports to their environmental monitoring system, with the ability to place the expansion units up to 1000 feet (300 meters) away from each other. Supported EXP devices are the E-Sensor8 and E-Opto16 expansion units.

Reliability
AKCP is the oldest and largest data center environmental monitoring company in the world. Along the way AKCP has introduced many hardware platforms and has learned many lessons. SPX+ is AKCP's latest platform and incorporates AKCP's accumulated knowledge on how to build reliable, rugged embedded systems.

Since its recent release, SPX+ has grown to an installed base of approximately 5,000 base units. On average AKCP has 4 hardware failures per year that require RMA replacement. That is to say that SPX+ is operating for 43,800,000 hours for every 4 failures. That is a MTBF of 10,950,000 hours. The sensors have an approximately similar record of durability.

The reason that this failure rate is so low is by design. SPX+ was created for rugged environments. The components used in SPX+ can withstand high-temperature environments because they generate very little heat.

SPX+ operates on 1 Watt of power. This stands in contrast to larger systems running more complex, and less reliable operating systems such as Linux. Typical small computers often run at 300 Watts requiring a fan. SPX+ doesn't need fans or special cooling.

The case is built from aluminum, not plastic. SPX+ has been tested in environmental chambers to be able to operate reliably at 70° C. During the manufacture every SPX+ is tested, then burned in for 96 hours in order to eliminate infant mortality.

The system is put into stock awaiting a customer order. AKCP is not only rugged in hardware, it is rugged in software. Rather than relying on large, untested, and unmaintainable open source projects, AKCP writes its own applications. This is more difficult but results in superior performance. AKCP can maintain the code because AKCP wrote it themselves. If there is a bug that needs fixing, AKCP can fix it. If there is a feature that needs adding - AKCP can add it. This is not possible in larger systems relying on third-party applications.

Dual Power Inputs
This SPX8-X20 comes with a 40-60VDC power supply and is ideal for telecoms where DC power is available directly in the cabinets.

This power supply features dual inputs with redundant fail-over. It can also be utilized in a data center with a dual PDU setup. Connect your 2x 40-60VDC power adapters to the separate power sources, and connect the two 40-60VDC outputs from the adapters to the dual power inputs on the SPX+.

Being that this SPX8-X20 features the power over Ethernet (PoE) option, the dual-input feature can also be used as a redundant power input. If the power source to the DC jack is interrupted, SPX+ will switch to the PoE source.

No Software Required
sensorProbeX+ is simple to install and use, requiring no special software other than a standard Web Browser. sensorProbeX+ connects to an Ethernet network with a standard RJ45 connector and sends data in standard TCP/IP packets. It is easily configured with a simple menu using a Web Browser. Pro version can be password protected with 2 access account level types: Administrator, and View Only. From within an Intranet or over the Internet, the user can securely access the monitoring appliance by entering its IP address.

Centralized Management
If you are deploying multiple AKCP environment monitoring appliances, you can centrally manage them all and monitor their data through AKCPro Server - a best-in-class data center infrastructure management software (DCIM) with a focus on temperature and airflow analysis.

• Learn more about AKCPro Server

Self-hosted AKCPro Server is FREE when connected to up to 4 AKCP environmental monitoring appliances.

• Download self-hosted AKCPro Server here

Cloud AKCPro Server¹ is FREE for the first year when connected to up to 4 AKCP environmental monitoring appliances²

• Register an account with AKCP here to use the Cloud AKCPro Server

Camera Support
SensorProbeX+ supports IP camera video streams through a connection to self-hosted AKCPro Server (running locally on your server).

Using self-hosted AKCPro Server, images from IP cameras can be synchronized with sensor events (e.g. images captured from an IP camera can be synchronized with a security sensor that's being triggered when a door, or window, opens, providing instant visual feedback on the situation).

Features and Benefits
• Equipped with Ethernet, Modbus RS485, EXP and BEB communications
• Compatible with SPX+ EXP and BEB units for expanding the capabilities of your device
• 1U rack-mount brackets included
• Supports notification by SNMP, Email, SMS and built in buzzer
• Compatible with all AKCP intelligent sensors
• Start with base configuration and build up your device with modules you need
• Comes with 10 virtual sensors
• Supports up to 80 virtual sensors
• Manufactured using highly integrated, low power surface mount technology to ensure long term reliability
• Low profile design

Package Includes
1x 1U sensorProbeX+ (rack-mounting ears included)
8x Intelligent sensor ports
10x Dry-contact I/O ports
1x 10/100 Ethernet port
1x Dual-purpose expansion (EXP) port
1x Basic expansion bus (BEB) port
1x External 5.5V 3A power adapter (100V~240V - 0.22A)
10x Virtual* sensors (additional virtual sensors are available for purchase [maximum of 80 virtual sensors] - see listing below

Need help? Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* A maximum of 80 virtual sensors are supported, with not more than 60 Modbus RS485/Modbus TCP/IP sensors and virtual sensors combined.
1) Cloud AKCPro Server does not support IP cameras, and does not support Access Control products (Door Control Unit and RFID Swing Handle Locks).
2) If you need to support more than 4 AKCP environmental monitoring appliances, cloud licenses need to be purchased for all supported appliances.
