THS01-NIST2: Single-port dual temperature and humidity sensor

2 sensors on one port with calibration check

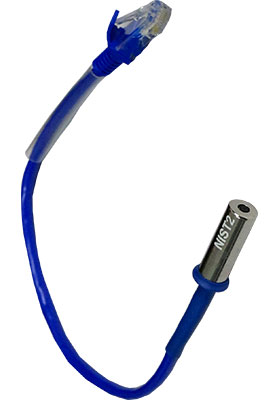

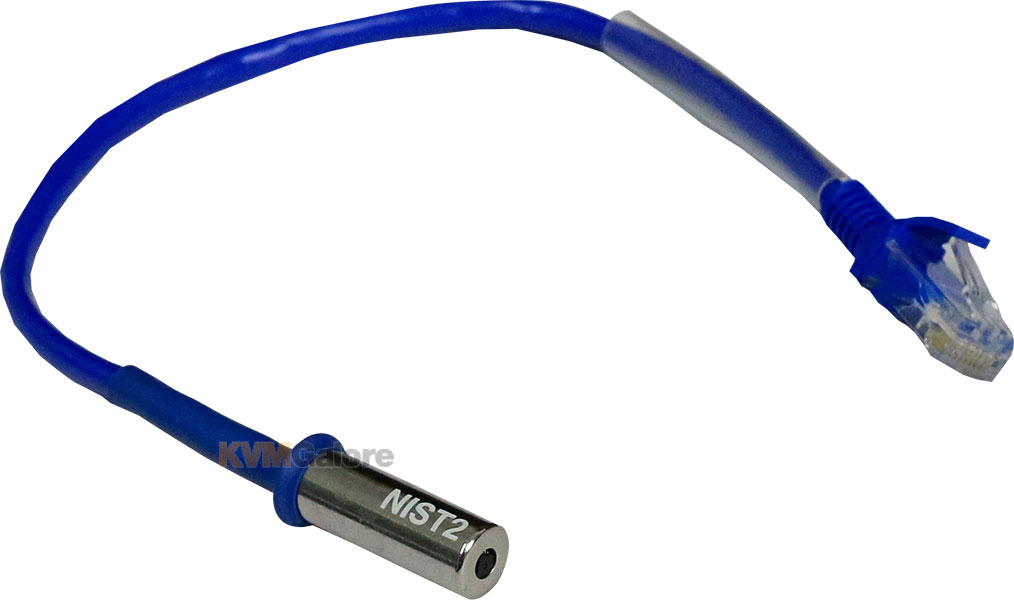

A short 1-foot fixed-length cable with a dual temperature and humidity sensor on the end for accurate and responsive measurement of temperature and humidity for data center monitoring, remote sites and industrial controls. Combined temperature and humidity into one sensor frees up an additional intelligent sensor port on your base environmental monitoring appliance.

In situations where both temperature and humidity can be critical you can keep up to speed on the current conditions using this sensor.

This AKCP temperature sensor is NIST2-certified, featuring a built in calibration check. Each unit has 2x NIST calibrated and certified temperature and humidity sensors. The primary sensor value is compared once a second against the secondary sensor for accuracy, and if AKCP detects a difference reading between the two sensors in a range greater than the stated accuracy, AKCP will alert that the sensor is out of calibration. This makes these sensors ideal for situations where a high degree of accuracy is required and assurance of the calibration state.

Setup is simple with sensorProbe+ and securityProbe autosense function. Once plugged into the intelligent sensor port, the base environmental monitoring appliance automatically detects the presence of the sensor and configures it for you.

All you need to do is set your thresholds for low and high warning and critical parameters. The built in graphing function of the base environmental monitoring appliance gives you a pattern of temperature or humidity trends over time.

The sensor is housed in a metal tube that is thermally conductive and perforated to still provide accurate readings.

Features and Benefits
• Temperature and humidity monitoring on a single sensor port
• Own SNMP OID for data collection via a network
• Temperature measurement from -55ºC – +75ºC
• Relative humidity measurement from 0% – 100%
• Ships with a self-adhesive sensor clip for easy installation in server cabinets
• Powered by AKCP environmental monitoring appliance - no additional power needed

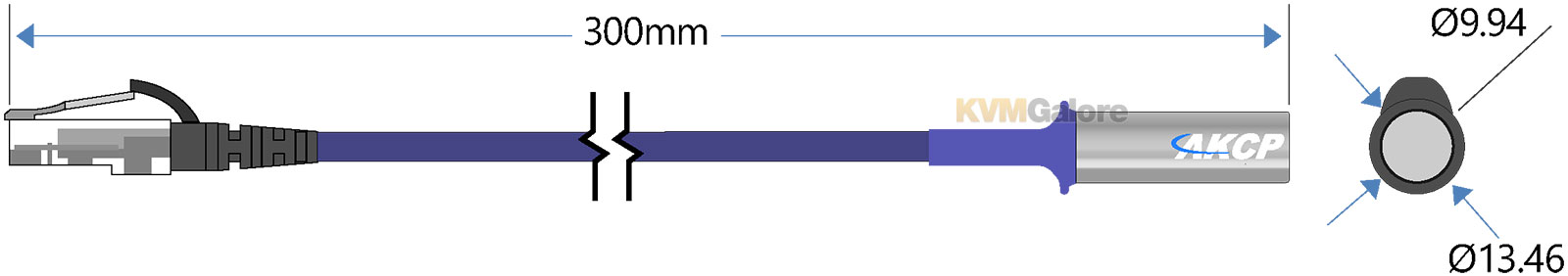

Note: This fixed-length temperature/humidity sensor is not designed to be extended. Use THS00 if you need a different cable length. AKCP does not recommend connecting the temperature/humidity sensor though patch panels, or using RJ-45 couplers to extend it.
