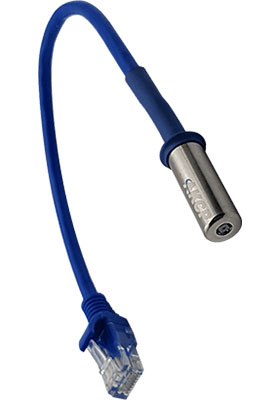

THS01: Single-port dual temperature and humidity sensor

2 sensors on one port

A short 1-foot fixed-length cable with a dual temperature and humidity sensor on the end for accurate and responsive measurement of temperature and humidity for data center monitoring, remote sites and industrial controls. Combined temperature and humidity into one sensor frees up an additional intelligent sensor port on your base environmental monitoring appliance.

In situations where both temperature and humidity can be critical you can keep up to speed on the current conditions using this sensor.

Setup is simple with sensorProbe+ and securityProbe autosense function. Once plugged into the intelligent sensor port, the base environmental monitoring appliance automatically detects the presence of the sensor and configures it for you.

All you need to do is set your thresholds for low and high warning and critical parameters. The built in graphing function of the base environmental monitoring appliance gives you a pattern of temperature or humidity trends over time.

The sensor is housed in a metal tube that is thermally conductive and perforated to still provide accurate readings.

Features and Benefits
• Temperature and humidity monitoring on a single sensor port
• Own SNMP OID for data collection via a network
• Temperature measurement from -55ºC – +75ºC
• Relative humidity measurement from 0% – 100%
• Ships with a self-adhesive sensor clip for easy installation in server cabinets
• Powered by AKCP environmental monitoring appliance - no additional power needed

Custom Lengths
Custom lengths (up to 100 feet) of this sensor are available by ordering as many extended-feet in length (listed below, up to 99 feet) to match the total cable-length that you need.

Example: If you need a 40-foot long Temperature & Humidity Sensor, you should order:
1x Temperature & Humidity Sensor, 1 Foot [THS01] - This product
39x Extra 1-Foot Fixed Cable-Length for Temperature & Humidity Sensor [THSxx] - Listed below
This will get you a 40-Foot Fixed-Length Temperature & Humidity Sensor.

Note: This fixed-length temperature/humidity sensor is not designed to be field-extended. Order a custom length or use the Extendable model if you need a different cable length. AKCP does not recommend connecting the temperature & humidity sensor though patch panels, or using RJ-45 couplers to extend it.
