![Temperature and Humidity Map Sensor Temperature and Humidity Map Sensor](images/THMS-V2_P.jpg)

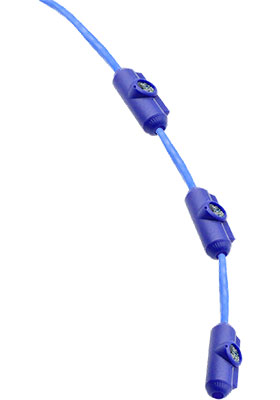

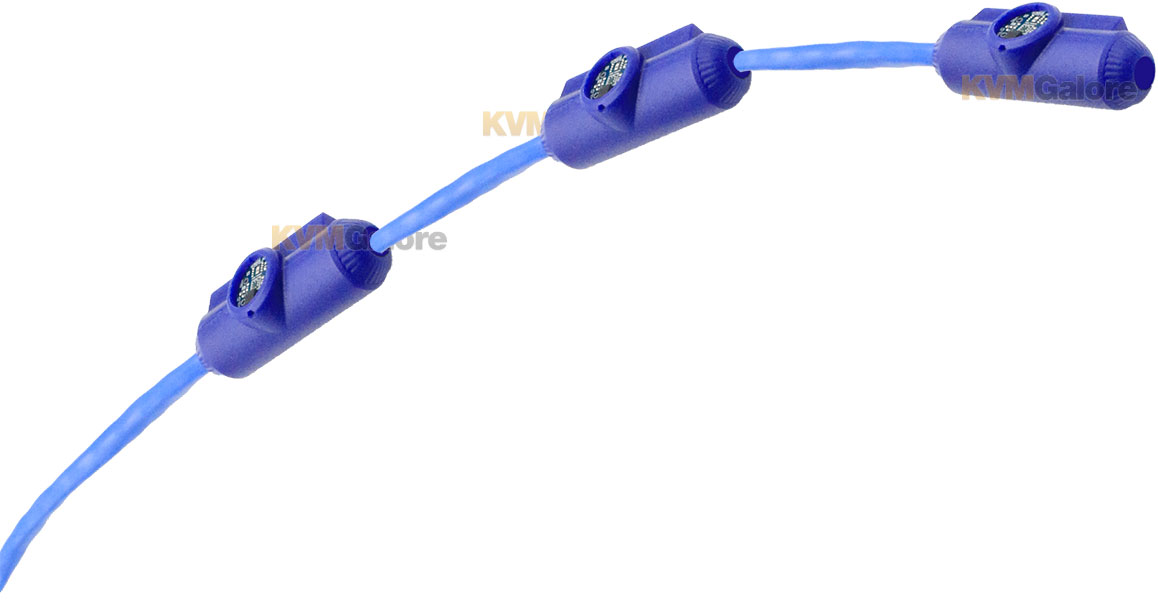

THMS-V2: A string of pre-wired 3x temperature and 1x humidity sensors
for monitoring top middle and bottom temperature values, and easy installation into one sensorProb+ sensor port
Build a complete rack monitoring system connecting AKCP sensors to your sensorProb+ - fully SNMP compliant, monitor from your existing NMS or using AKCP DCIM AKCPro Server.

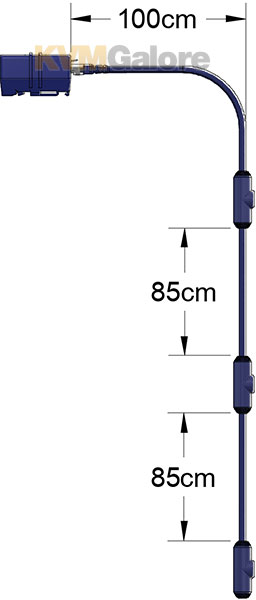

AKCP's Temperature and Humidity Map Sensor is a string of 3x sensors, pre-wired for easy installation to the front and to the back of a data cabinet:
1x temperature/humidity sensor (the 1st sensor in the string), and
2x temperature sensors.
With the sensors placed at the top, middle and bottom of the rack, top middle and bottom temperature values are monitored.
AKCP's Temperature and Humidity Map Sensor is compatible with all sensorProbe+ environmental monitoring appliances.
Sensors are provided with double sided VHB tape for mounting. Optional magnetic re-positionable mounting kit is available.
The maximum number of thermal maps on a single sensorProbe+ environmental monitoring appliance is 16.
Thermal maps can be added to rack map views in AKCPro Server. Animated arrows show the individual sensor values at the top, middle and bottom of the cabinet. 3D heat-map visualization of your data center allows you to quickly identify hotspots or areas being over cooled.
Package Includes
1x String of 3 pre-wired sensors (on a 5 foot CAT-5 cablw with an RJ45 jack)
