8-port 4K HDMI CAT-6 video splitter/extender

with 8 receivers included

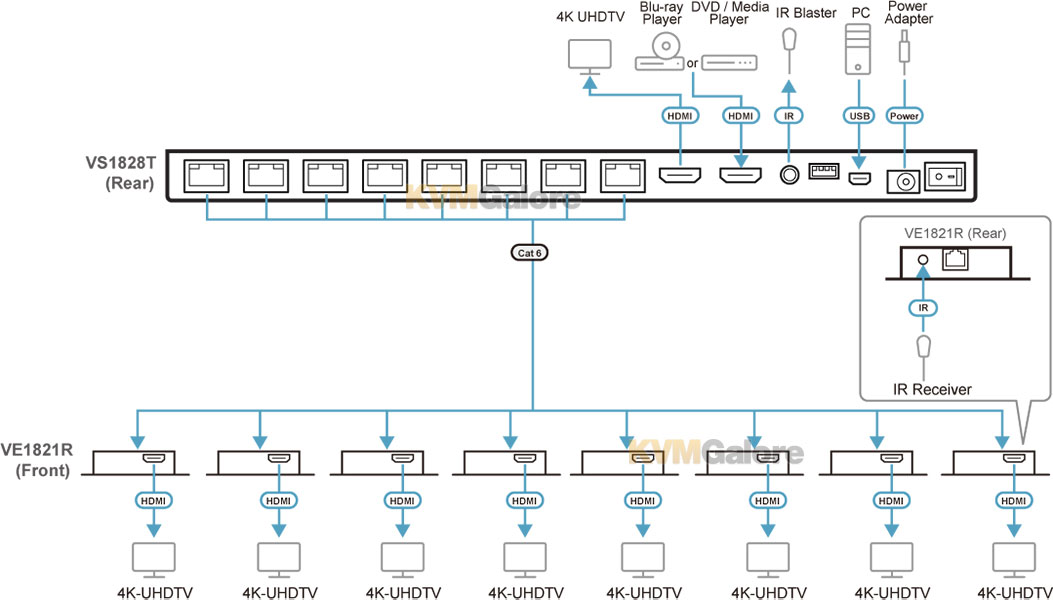

• A kit that includes 1 splitter and 8 receivers to distribute 1 HDMI source to 8 displays up to 130 feet (40 m) away via a single CAT-6 cable
• Supports up to 4K @ 30Hz (4:4:4) for crystal-clear video presentation
• Power over cable (PoC) functionality from splitter to receivers to avoid cluttered cable installation
• User-adjustable EDID switch on splitter for output video resolutions and audio capabilities configuration

VS1828KIT is a kit that includes 1 splitter and 8 receivers, distributing an HDMI source at up to 4K @ 30Hz (4:4:4) to 8 displays up to 130 feet (40 m) away via a single CAT-6 cable.

The system also supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.

Only one power adapter for the splitter is needed as a result of the receivers being powered by the splitter thanks to the power over cable (PoC) functionality, which also helps avoid cluttered cable installation.

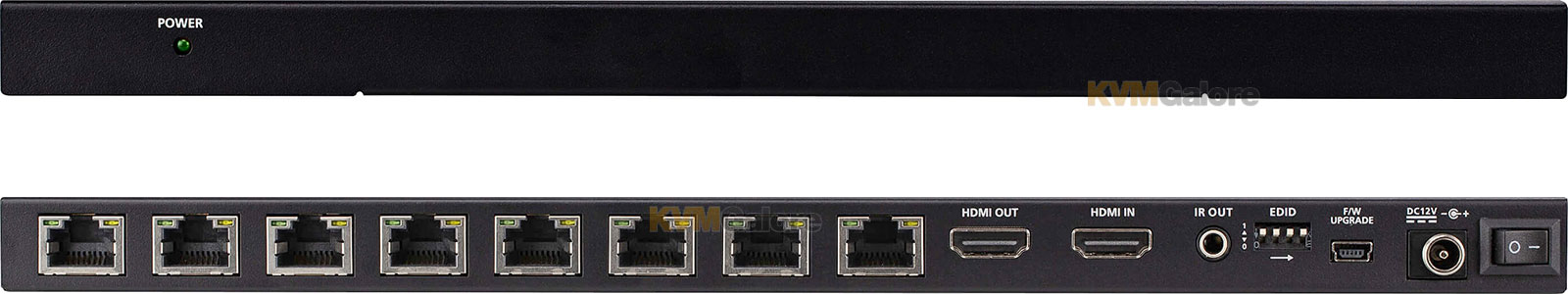

An HDMI local output port is built in the splitter for content monitoring or cascading purposes. Moreover, the splitter contains a user-adjustable EDID switch, enabling users to configure the output video resolutions and audio capabilities for seamless integration across the system.

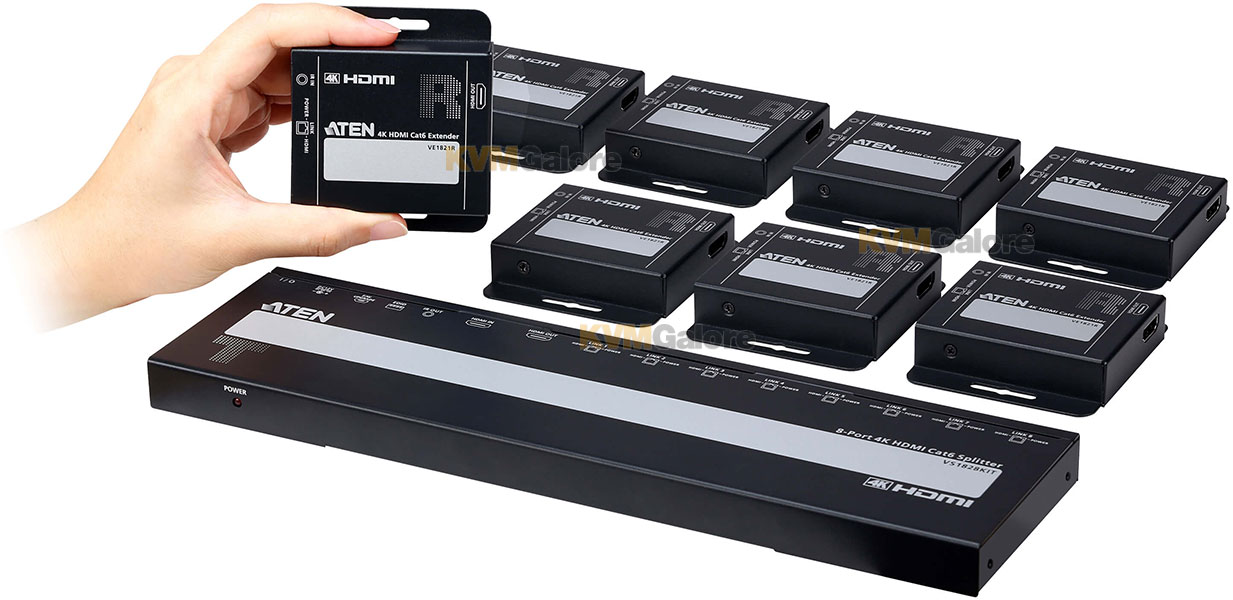

The receiver's ultra lightweight, palm-sized enclosure ensures flexible installation including mounting and placement in tight spaces.

The kit comes with 1 IR blaster cable for the splitter and 8 IR receiver cables for receivers, allowing users to remotely control the source device from the receiver side.

With plug-and-play operation, no software is required, enabling easy, immediate installation.

VS1828KIT delivers excellent AV transmission quality and installation flexibility within different installation scenarios, from meeting facilities, retail settings, showrooms, entertainment systems, and more.

More Features and Benefits
• Supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
• HDMI (3D, Deep Color, 4K)
• HDCP 1.4 compliant
• HDMI local output port on splitter for content monitoring or cascading purposes
• The receiver's (VE1821R) ultra lightweight, palm-sized case enables flexible installation including mounting and placement in tight spaces
• One-way IR channel for remote control of the source device from the receiver side
• Built-in 4KV/8KV ESD protection
• Plug-and-play - no additional software needed

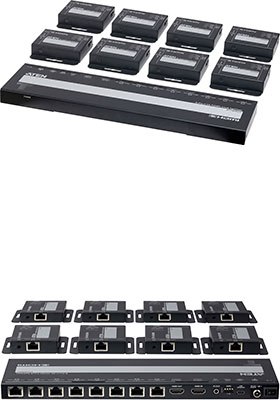

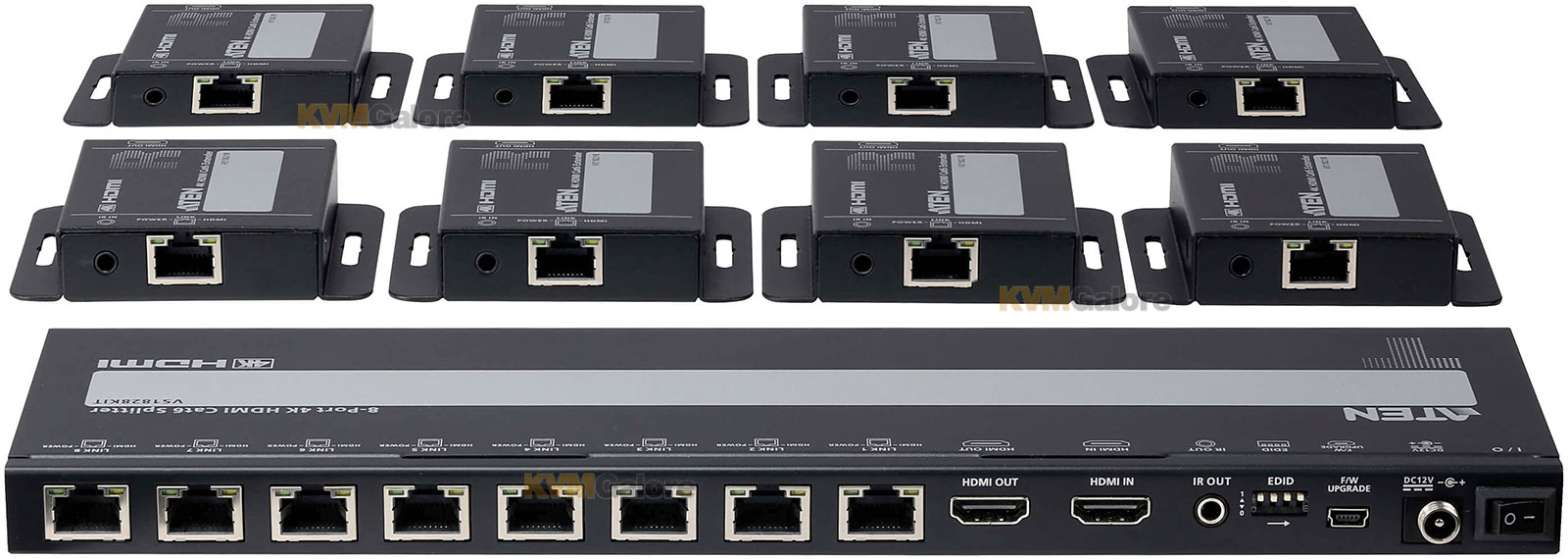

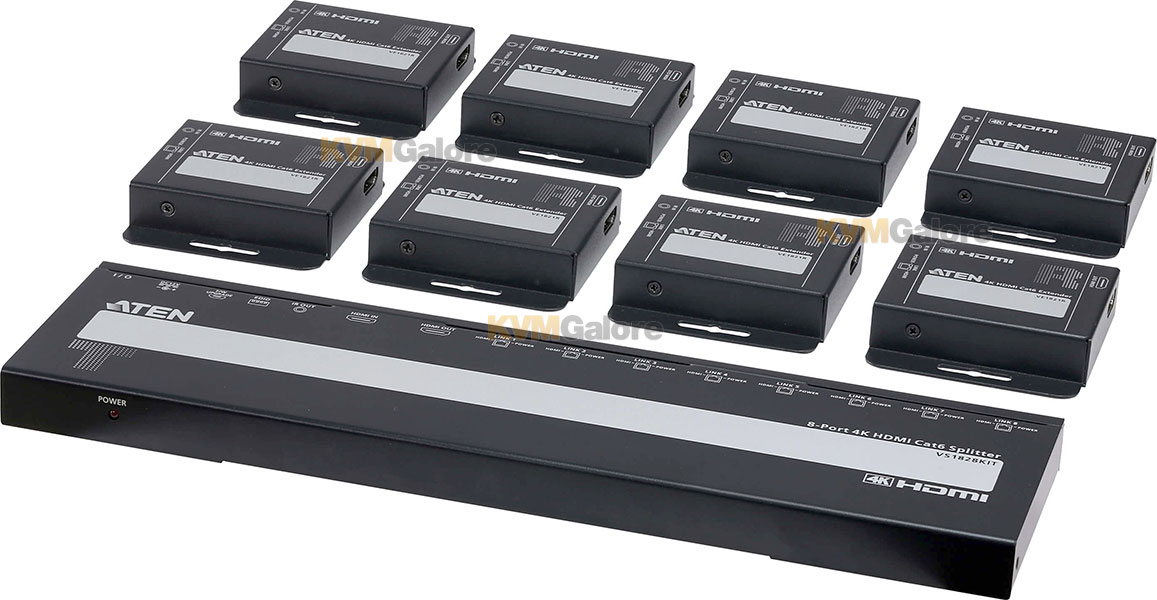

Package Contents
1x VS1828T 8-Port 4K HDMI CAT-6 Splitter
8x VE1821R 4K HDMI CAT-6 Receivers
1x IR blaster cable
8x IR receiver cables
1x Mounting kit
1x Power cord and power adapter
1x User instructions
