4K HDMI over single CAT-5 receiver with scaler

up to 328 feet (1080p up to 492 feet) using HDBaseT

Note: Transmitter units are purchased separately

• Extends HDMI, RS-232, and IR signals up to 328 feet (100 m) over a single CAT-5e/6/6a or ATEN 2L-2910 CAT-6 cable
• Scaler - scales videos of different resolutions to their optimal output for display and to avoid black screen*
• Video Wall - features video wall profiles that allow for custom screen layouts via an intuitive web GUI**
• Superior video quality: 4K up to 328 feet (100 m); 1080p up to 492 feet (150 m)

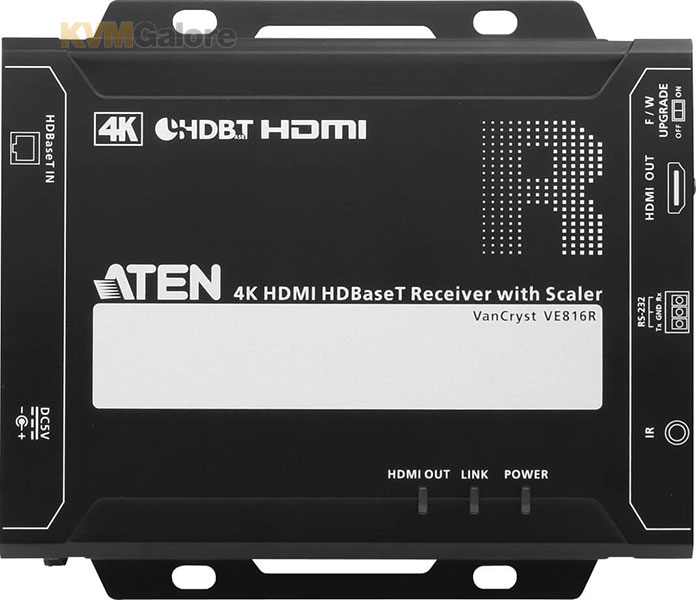

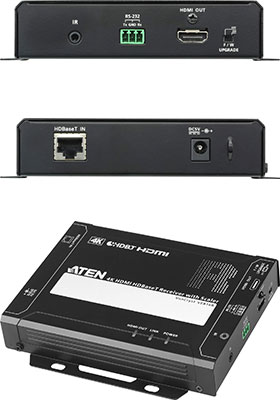

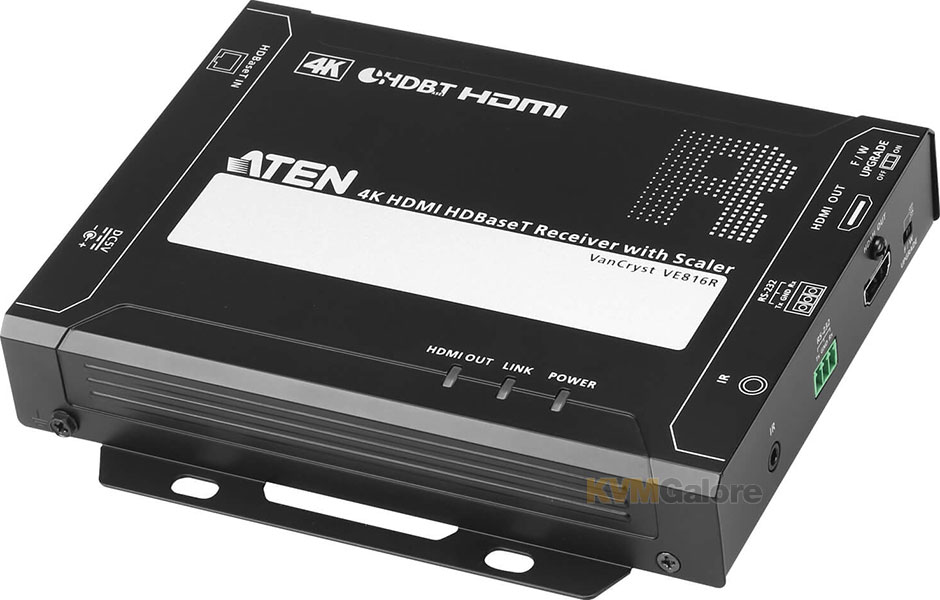

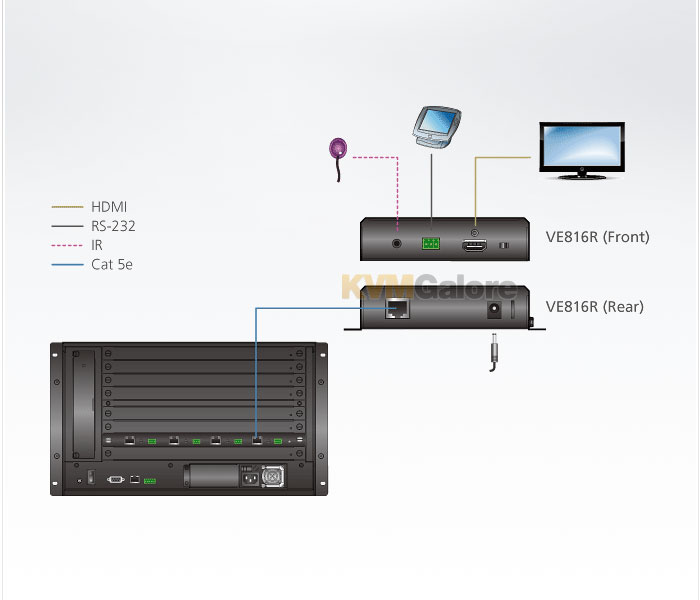

ATEN VE816R 4K HDMI HDBaseT receiver with scaler is designed to work with ATEN HDBaseT matrix switches to extend 4K HDMI signals up to 328 feet (100 m) over a single CAT-5e/6/6a or an ATEN 2L-2910 CAT-6 cable, and at the same time, scales videos of different resolutions for optimal display.

Supporting bi-directional RS-232 channel and IR signaling pass-through, VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT matrix, VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.

When working with ATEN HDMI HDBaseT-Lite matrix switches or modular matrix switches with HDBaseT output boards, VE816R supports video wall integration and ATEN's Seamless Switch™ function, providing users the ultimate A/V experiences.

Features and Benefits
• Extends HDMI, RS-232, and IR signals up to 328 feet (100 m) over a single CAT-5e/6/6a or ATEN 2L-2910 CAT-6 cable
• HDCP 2.2 compatible
• 4K video resolution support up to 328 feet (100 m)
• 1080p video resolution support up to 492 feet (150 m)
• HDBaseT Long Reach Mode - activated by RS-232 commands, Long Reach Mode extends signals up to 492 feet (150 m), 1080p, via a single CAT-5e/6 cable
• Scaler - scales videos of different resolutions to their optimal output for display and to avoid black screen*
• Video Wall - features video wall profiles that allows for custom screen layouts via an intuitive web GUI**
• Seamless Switch™ - close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions**
• HDBaseT Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
• Bi-directional RS-232 channel - allows for control using serial terminals or serial devices, such as touch screens and barcode scanners
• Bi-directional IR channel - IR transmission is processed one direction at a time***
• Cable Quality Tester - examines the category cable quality through signal level detection from HDBaseT Matrix Switches to the VE816R.
• FrameSync - prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
• Remote Firmware upgrade
• Built- in 8KV / 15 KV ESD protection
• Plug-and-play
• Rack-mountable

Package Contents
1x VE816R 4K HDMI HDBaseT Receiver with Scaler
1x IR Transmitter
1x IR Receiver
1x Terminal Block
1x Power Adapter
1x User Instructions

* Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device
** The Seamless Switch™ and video wall functionalities are available when the VE816R is used with ATEN HDBaseT Matrix
*** Supports full-frequency IR signals from 30 KHz to 56 KHz
