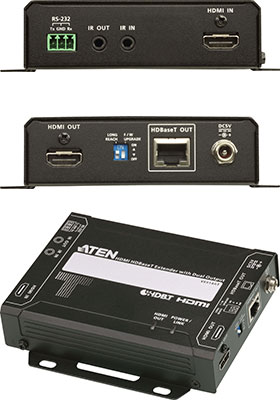

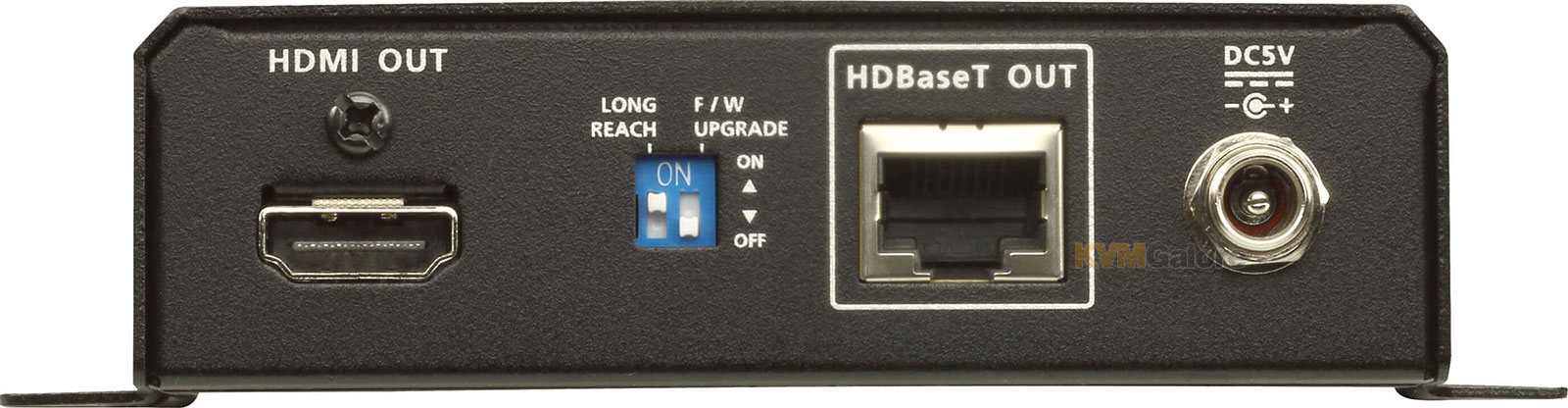

4K HDMI over single CAT-5 transmitter with dual display
using HDBaseT up to 330 feet
Note: Receiver units are purchased separately
VE814 delivers high quality videos in dual displays over distance. With VE814 HDMI extender, your HDMI displays can be located up to 330 feet (100 m) away from the HDMI source device. This is made possible using only one CAT-5e/6 cable, which is cheap and easily available.
In addition, your video can be streamed using up to three HDMI displays – dual displays connected to the receiving unit (VE814AR) and another one to the transmitter unit (VE814AT).
VE814 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while also granting access to the HDMI display device from the local unit (VE814AT).
VE814 is HDMI (3D, Deep Color, 4Kx2K) and HDCP compliant, ensuring superior video quality so that you get the most out of your HDMI displays.
Features and Benefits
• Extends the distance between HDMI source and HDMI display
• Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
• Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
• Supports one local and two remote displays
• Supports two IR channels for bi-directional IR signal transmission
• HDMI (3D, Deep Color,4kx2k); HDCP compliant
• Long distance transmission – up to 330 feet
• Supports wide screen
• Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
• Supports up to 340 MHz bandwidth for high performance video
• Signaling rates up to 3.4Gbits
• EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
• RS-232 serial port for serial device peripherals, such as touch screens, bar coders scanners, and so on
• Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
• Easy to install – no software required
• Rack Mountable
Package Contents
1x VE814AT-ATA
1x Mounting kit
1x Power Adapter
1x User Instructions
