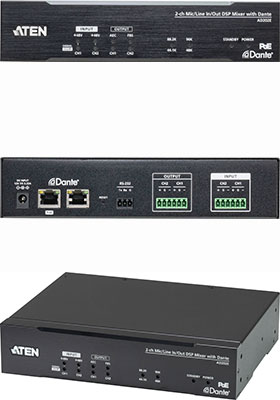

2-channel line/mic in/out audio processor with DSP and Dante

• Enables 4x4 analog and Dante matrix mixing
• Acoustic Echo Cancellation (AEC) – prevents echoes in a conferencing environment
• Feedback Suppressor (FBS) – automatically detects and reduces feedback
• Built-in DSP – allows 24 presets and speaker functionality management through PC-based app Audio Wizard / ATEN VK control system via LAN / RS-232
• Powered by PoE or external power adapter

AD202E supports the conversion of 2 balanced/unbalanced line/mic level audio inputs with selectable individual 48V Phantom power into 2 Dante outputs, as well as 2 Dante audio channels into 2 balanced/unbalanced line level outputs for versatile connectivity.

AD202E also enables 4x4 analog and Dante matrix mixing, allowing users to flexibly route any input to the assigned output, elevating sound performance.

AD202E supports 24 bit and offers sampling rate options of 44.1k, 48k, 88.2k, and 96 kHz to meet different environment needs. With AES67 compliance, AD202E enhances interoperability between different audio networking protocols and devices.

Designed to enhance meeting experiences, AD202E adopts Acoustic Echo Cancellation (AEC) technology to prevent echoes in a conferencing environment and Feedback Suppressor (FBS) to automatically detect and reduce feedback.

Its built-in DSP allows 24 presets and quick setting adjustment through the PC-based app Audio Wizard / ATEN VK control system via LAN / RS-232. Plus, AD202E comes with a selectable automatic Standby Mode for energy-saving purposes, switching the unit to Standby Mode automatically when the signal level runs lower than −50 / −60 / −70 dBu for a selected duration (10 / 30 / 60 minutes).

Other highlights include the support for Dante daisy-chaining to help simplify system infrastructure wiring and for redundancy operation via PoE to eliminate the need for additional cable installations.

AD202E's compact, half-rack size enclosure makes installation under desks or on any flat surface easy.

AD202E is perfect for on-line conferences or distance learning applications that require high quality, dynamic sound performance and intelligible audio at the far end within Dante audio networking environments.

More Features and Benefits
• Converts 2 balanced/unbalanced line/mic level audio inputs with selectable individual 48V Phantom power into 2 Dante outputs and 2 Dante audio channels into 2 balanced/unbalanced line level outputs
• AES67 compliant
• Supports 24 bit and offers sampling rate options of 44.1k, 48k, 88.2k, and 96 kHz
• Selectable automatic Standby Mode – the unit enters Standby Mode automatically when the signal level runs lower than −50 / −60 / −70 dBu for a selected duration (10 / 30 / 60 minutes)
• Supports PoE for redundancy operation and eliminating the need for additional wiring installations
• Supports Dante daisy-chaining for simplifying system infrastructure wiring
• Compact half-rack size chassis – flexible installation inside racks and easy placement under desks or on flat surfaces

Package Contents
1x AD202E 2-ch Mic/Line In/Out Audio Processor with DSP and Dante
1x Rack-mount / surface-mount kit
4x Foot pads
5x 3-pin Euroblocks
