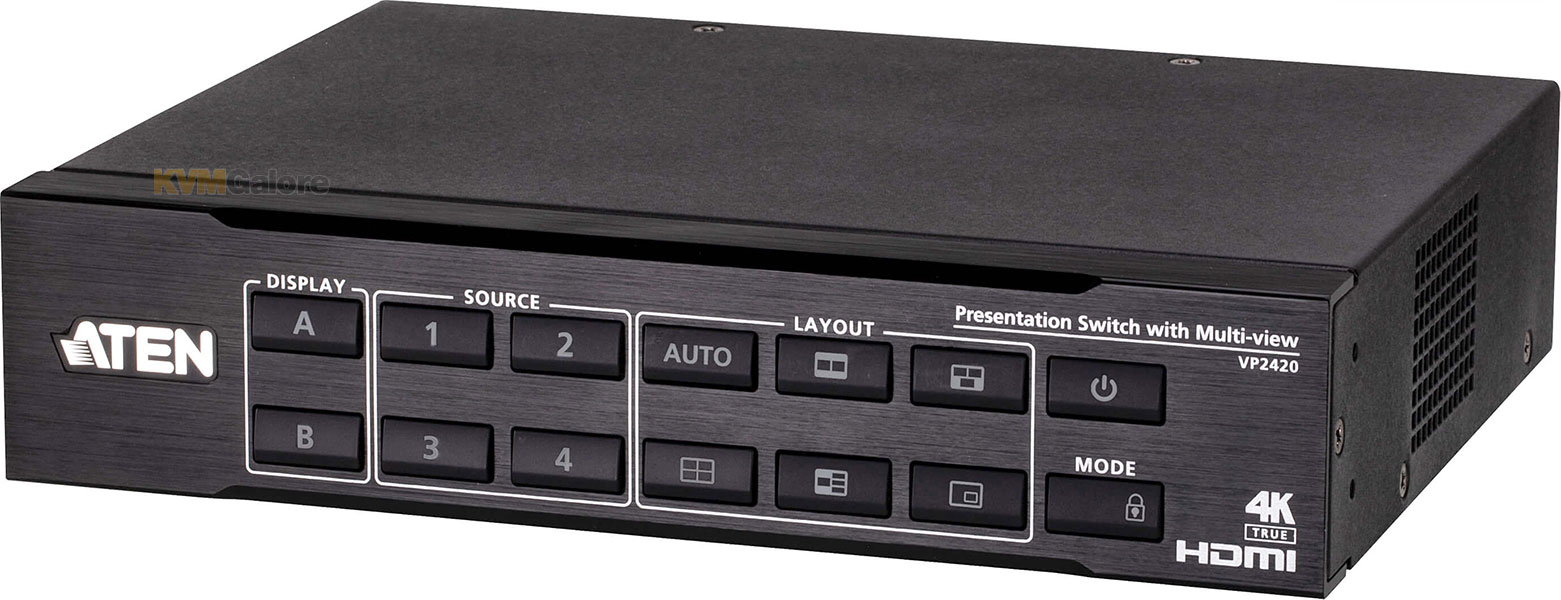

4-input, 2-output True 4K HDMI presentation switch
with multi-view
• Supports multi-view (full screen, PiP, PbP, triple/quad multi-view), matrix/mirror display modes, and auto/manual layout modes
• Supports audio embedding and de-embedding
• Seamless switching* at near-zero-second speed
• Built-in True 4K scaler – supports video upscaling to True 4K
Experience seamless collaboration and efficient decision-making with ATEN VP2420 4x2 True 4K HDMI presentation switch with multi-view. It delivers a stunning viewing experience across mixed resolution displays and ensures smooth switching between two screens with multiple sources.
VP2420 is a presentation switch featuring 4x HDMI inputs and 2x HDMI outputs and is capable of displaying video content in full screen, PiP, PbP, triple/quad multi-view.
With display mode (Matrix/Mirror) and layout mode (Auto/Manual) selectable and its capability of seamless switching* among multiple sources, VP2420 delivers a dynamic viewing experience in any conference settings.
In addition to the support for 4096x2160 @ 60Hz (4:4:4), a True 4K scaler is also built in the device to ensure crisp and detailed visual quality.
Thanks to the audio embedding and de-embedding functionalities, users can adapt suitable audio/video combinations based on various environments.
Designed with flexibility in mind, VP2420 offers versatile control options including front-panel pushbuttons, RS-232, IR, Telnet, Web GUI, and ATEN Video Presentation Control mobile app, allowing multimedia signals to be easily managed and incorporated into a collaborative event.
Up to 4 VP2420 can be cascaded to display up to 16 HDMI signals at once on a single screen, expanding video source quantity.
Rack-mounting is supported for flexible installation.
With multi-view functionality, it enables comprehensive data presentation, allowing participants to workshop ideas and compare information on a single screen.
Its smart layout adjustment maintains a seamless flow as sources connect or disconnect, keeping meetings smooth and uninterrupted.
VP2420 supports versatile audio setups with options for audio embedding or separate extraction.
Whether used standalone or integrated with control systems, it offers easy source control and future scalability with up to 4 presentation switches cascaded, making every presentation captivating, smooth, and efficient.
With a set of features coming in a compact, all-metal casing, which enhances durability, VP2420 serves as a perfect solution for smooth presentation flow and seamless transition in any education or commercial conferencing applications.
Multi-View Display with Automatic Layout Adaptation
Elevate your team collaboration and discussion with VP2420, capable of displaying up to four video content sources on a single screen. This versatile setup facilitates side-by-side data comparison and the exchange of ideas among multiple participants, enhancing effective teamwork and decision-making. New video sources can be integrated into the existing layout anytime for a smooth and dynamic display experience.
Visual Excellence with True 4K Clarity and Advanced Scaler
Experience stunning True 4K/60 resolution with VP2420, delivering exquisite details and intricate visuals for an unparalleled viewing experience. Its advanced scaler seamlessly handles most-common input resolution up to True 4K or downscales to 1080p, offering a smooth and simultaneous display of mixed-resolution sources.

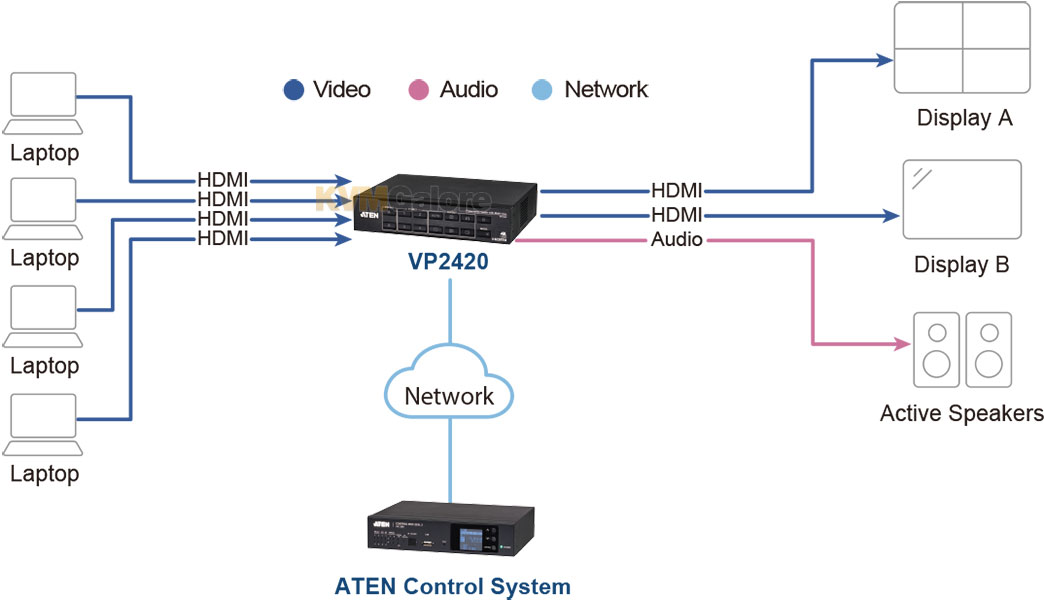

Unlock Perspectives with Matrix Output on 2 Displays
Beyond merely splitting sources across two screens, VP2420 features two independent displays: one capable of handling up to four sources at once, and the other highlighting the content for disucssion. This setup provides a comprehensive view, ensuring focused and efficient discussions that accelerate the decision-making process.
Six Preset Rapid Multi-View Layouts
VP2420 allows video content to be flexibly presented in six different multi-view layouts. It offers options such as quad, triple, picture-in-picture (PiP), picture-by-picture (PbP), and full screen, all of which can switch seamlessly within one second. This provides a dynamic and efficient display, meeting any presentation need.

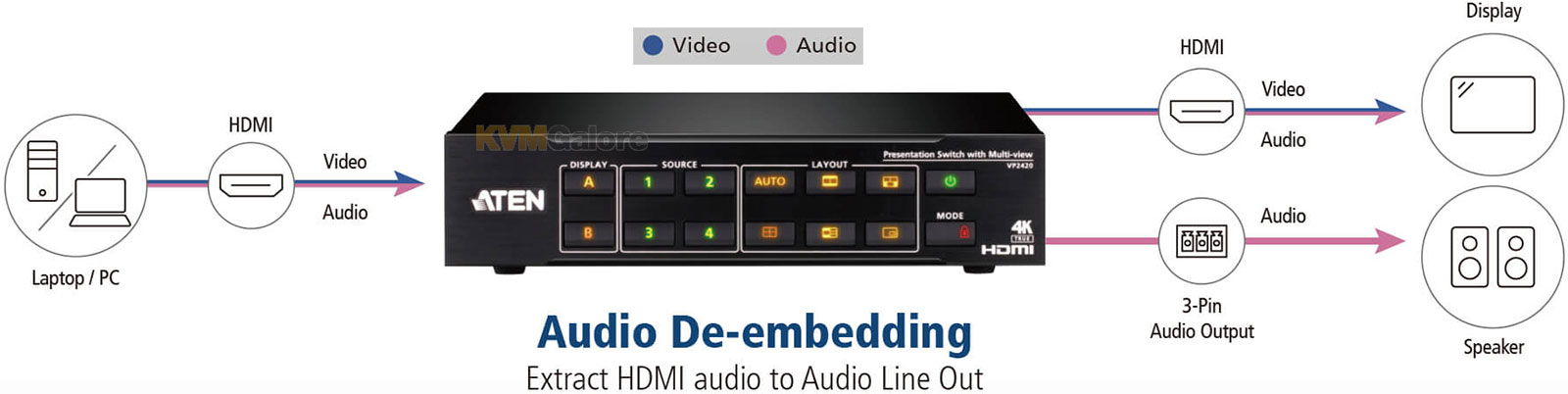

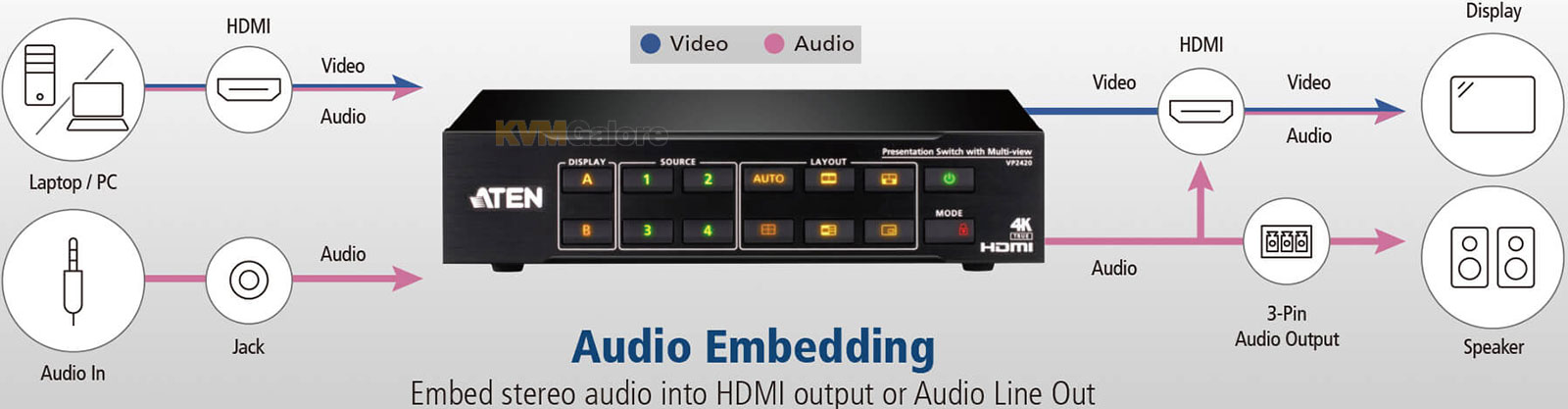

Audio Flexibility with Embedding and De-embedding Function
VP2420 enhances presentations with flexible audio options, allowing for separate audio track integration into video content (embedding) or extraction (de-embedding) of audio from the video signal for independent processing through amplifiers or speakers.
Multiple Methods for Streamlined Presentation Management
Managing presentations with VP2420 is effortless, offering a wide range of control options such as front panel, push buttons, IR controllers, web GUI, mobile app, RS-232, and Ethernet. Integration with control systems further enhances control, providing a comprehensive and streamlined presentation experience.
Perfect for Meeting Spaces and Classrooms
VP2420 is perfectly suited for use in huddle rooms, medium-sized meeting rooms, and classrooms to deliver collaborative presentations or training courses through a dynamic viewing experience.
Seamless AV Matrix Switching
• Supports 4x HDMI inputs and 2x HDMI outputs
• Supports multi-view (full screen, PiP, PbP, triple/quad multi-view), Matrix/Mirror display modes, and Auto/Manual layout modes
• Supports audio embedding and de-embedding
• Seamless switching* at near-zero-second speed
vAuto switching – automatically detects and switches to the latest active source connection
Visually Stunning True 4K Outputs
• Supports up to 4096x2160 @ 60Hz (4:4:4) and 4K HDR
• Built-in True 4K scaler – supports video upscaling to True 4K
• EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
• HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
The Ultimate Flexibility in Streamlining Operation
• Multiple control options – front-panel pushbuttons, RS-232, IR, Telnet, Web GUI, and ATEN Video Presentation Control mobile app
• Consumer Electronics Control (CEC)
• Up to 4x VP2420 cascadable – displays up to 16 signals on one screen simultaneously
• Long distance transmission – up to 16.4 feet (5 m) via a high-sSpeed HDMI cable
• Supports stand-by mode for power saving and fast waking up
• Rack-mountable
• All-metal casing enhances durability
Package Contents
1x VP2420 4x2 True 4K HDMI presentation switch with multi-view
1x IR receiver
1x IR remote control
1x Rack mount kit
1x 3-pole terminal block
1x Power adapter and power cord
Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.
* The function is only available on display A and applicable to single port switching. Multi-view layout switching is inapplicable.
