USB & DisplayPort CAT-5 KVM dongle

with virtual media or smart card/CAC support

• Supports audio de-embedder
• Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
• Keyboard and mouse emulation - keeps your server functioning smoothly when it's disconnected from the switch's KVM port or is relocated to a different KVM port
• Superior video quality - supports resolution up to 1920x1200 (reduced blanking)**

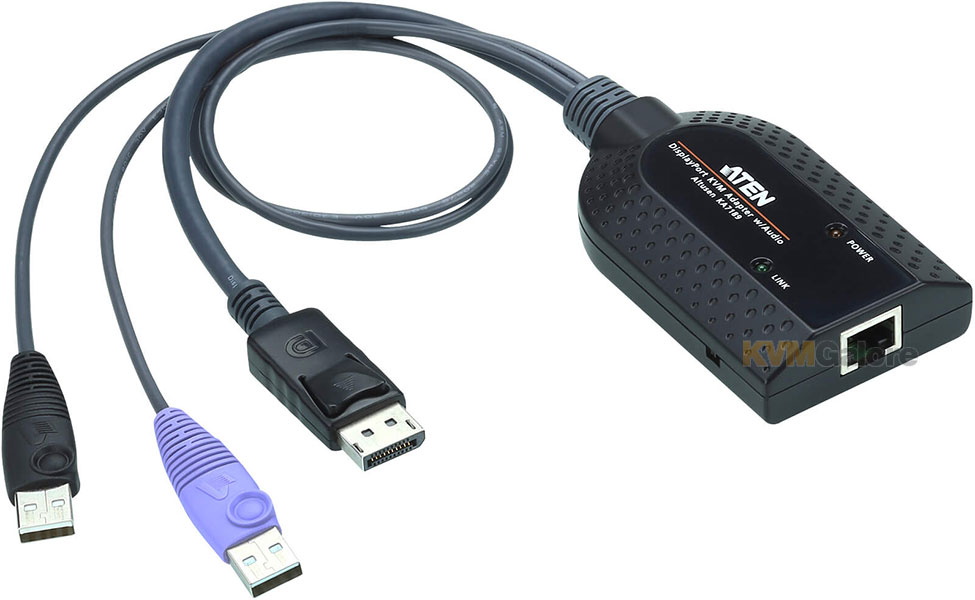

KA7189 KVM adapter cable (CATx dongle) connects a KVM switch to the DisplayPort video and USB ports of a target computer.* KA7189 supports DisplayPort output and provides two USB plugs to connect a target computer for keyboard/mouse, virtual media, or smart card/CAC reader functions.

KA7189 supports audio de-embedder, which extracts the audio from an DisplayPort signal. More advanced features of KA7189 include the small size and lightweight design, as well as superior signal compensation and delay skew technologies for greatly enhanced video quality.

Features and Benefits

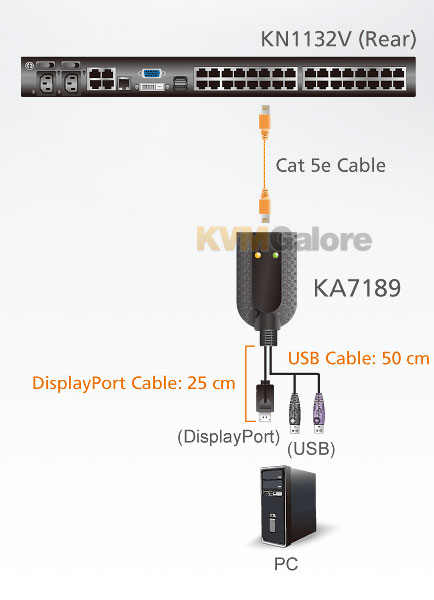

• Connects a KVM switch to the DisplayPort video and USB ports of a target computer*
• Keyboard and mouse emulation - keeps your server functioning smoothly when it's disconnected from the switch's KVM port or is relocated to a different KVM port
• Virtual media support
• Smart card / CAC reader support
• Superior video quality - supports resolution up to 1920x1200 (reduced blanking)**
• Built in ASIC for greater reliability and compatibility
• Compact size
• Firmware upgradeable

Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* Both USB connectors must be plugged into USB ports on the target computer for KA7189 to receive sufficient power
** This maximum resolution may vary depending on the transmission distance
