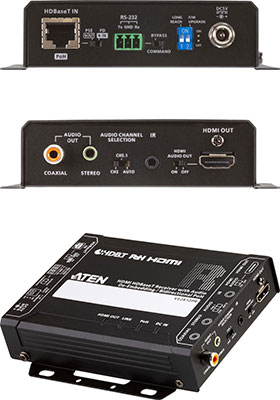

HDMI HDBaseT receiver with audio de-embedding and PoH

4K @ 328 feet, HDBaseT Class A

Note: Transmitter units are purchased separately

• Superior video quality : 4K HDMI up to 328 feet

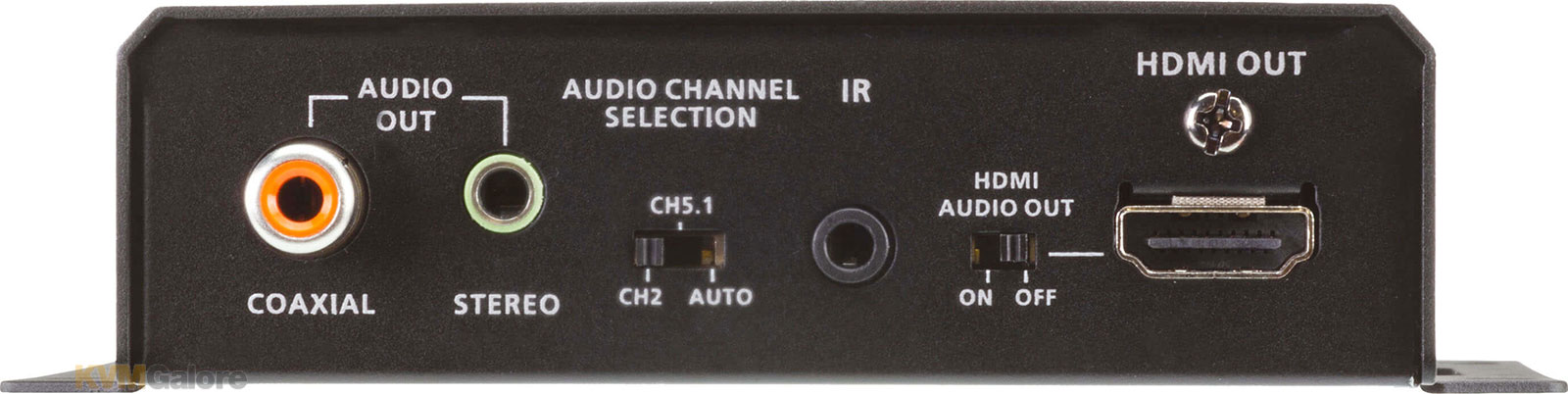

• Audio de-embedding – extracts audio stream from the HDMI source and delivers as a separate audio to coaxial S/PDIF, or stereo audio output
• Bi-directional PoH – allows a PoH PD-enabled Transmitter to be remotely powered by the locally powered VE2812PR; enables power distribution from a PoH PSE-enabled Transmitter to VE2812PR over the cable
• HDMI 1.4 (3D, Deep color, 4K); HDCP 2.2 compliant
• Supports manual audio EDID switching : 2ch stereo, 5.1ch surround sound, and AUTO

Featuring powerful Class A HDBaseT technology, the VE2812PR is a receiver for 4K HDMI video, audio, and control signals over a distance of up to 100 m via a CAT-5e/6/6a or ATEN 2L-2910 CAT-6 cable. HDMI signal transmission extends further up to 150 m @ 1080p when the HDBaseT Long Reach Mode is enabled.

Designed to optimize flexibility, the VE2812PR ships with 2-way PoH capability, either allowing a PoH PD-enabled Tx (VE2812AT series is recommended) to be remotely powered by the locally powered VE2812PR, or enabling power distribution along the cable from a PoH PSE-enabled Tx (VE1812T is recommended) to the VE2812PR. Speaking of VE2812PR’s audio de-embedding, audio signal can be extracted from the incoming HDMI source and then transmitted through Coaxial or Stereo output to external audio distribution systems. The VE2812PR gives users the extra convenience when it comes to extending control and communication signals via the built-in RS-232 and bi-directional IR ports. Plus, it is HDCP 2.2 compliant and supports HDMI specification features, such as 4K2K, 3D, Deep Color, and CEC for reliable transmission of high-quality uncompressed HDMI content.

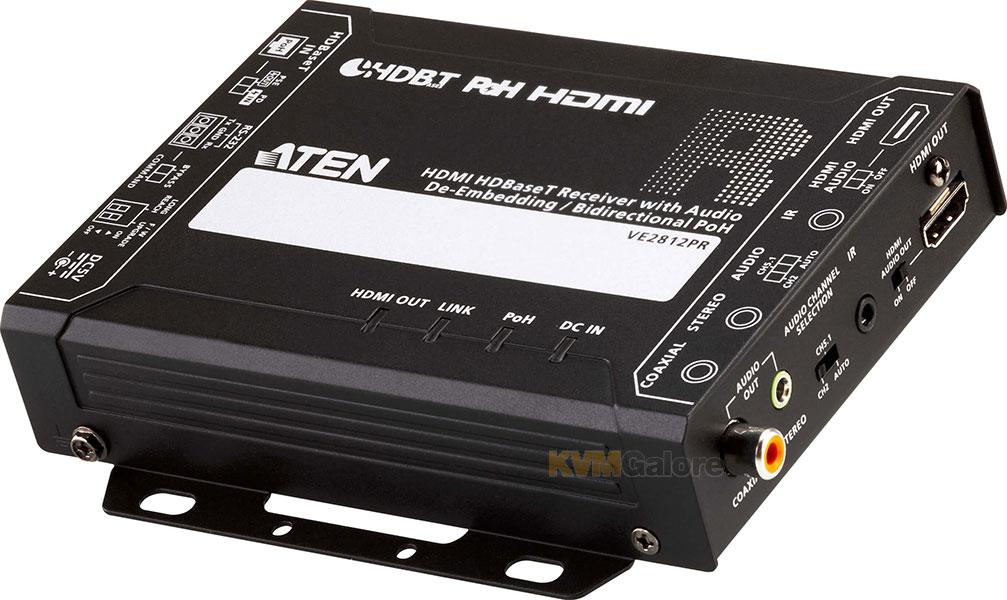

With all highlights packed in a compact enclosure, the VE2812PR assures easy and discreet installation, keeping the presentation space tidy. It is ideal for small / mid-sized areas where 4K HDMI and control signal transmission over a long distance is required, such as boardrooms, lecture halls, and digital signage applications.

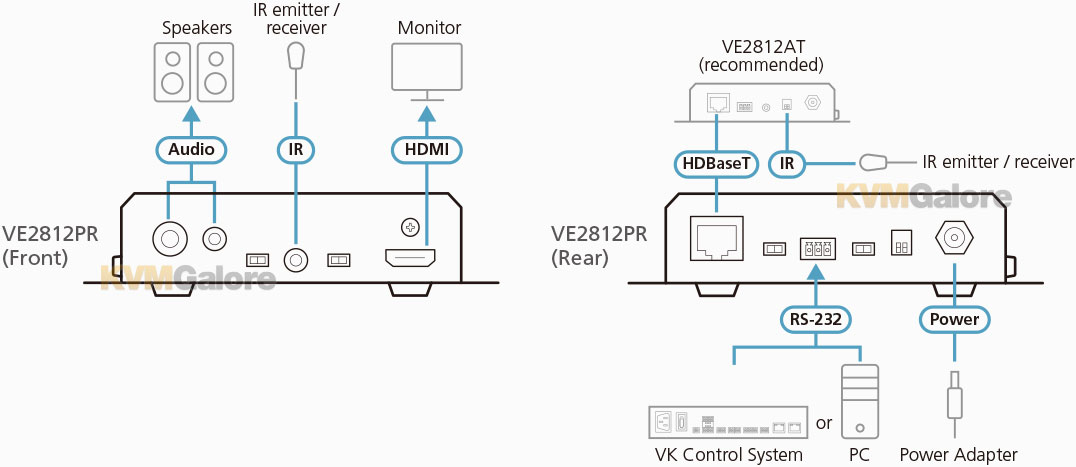

VE2812PR is compatible with any ATEN HDBaseT transmitter, and is recommended to be deployed paired with VE2812AT (see listing below).

Features and Benefits
• 4K HDMI up to 328 feet via a single CAT-5e/6/6a or ATEN 2L-2910 CAT-6 cable
• 1080p up to 492 feet via a single CAT-5e/6 cable in HDBaseT Long Reach Mode
• Supports audio EDID switching (2ch stereo, 5.1ch surround sound, and AUTO)

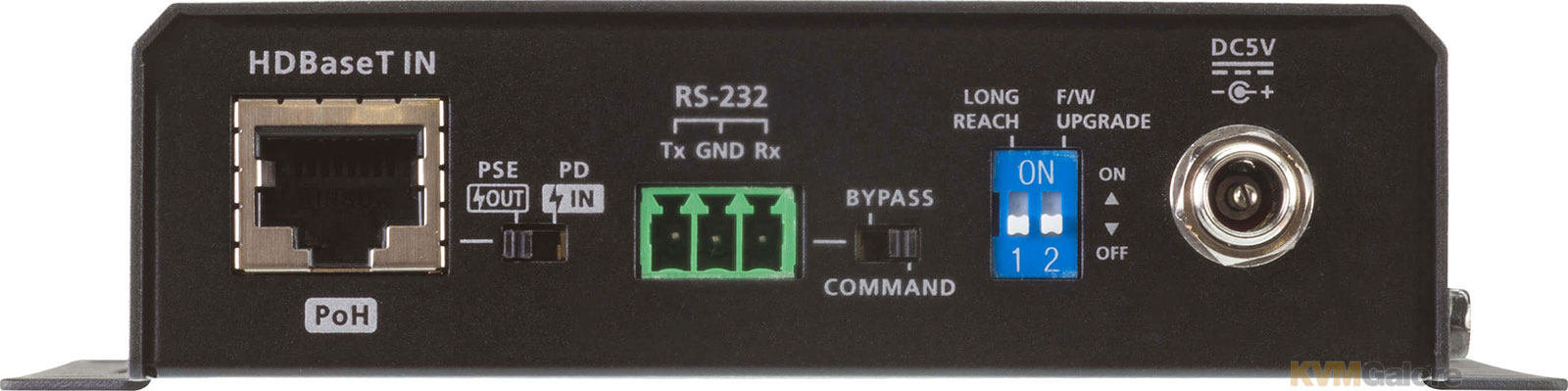

• RS-232 serial communication switch – switch between command mode and bypass mode for various application requirements
• Supports bi-directional IR signal transmission (IR transmission is processed one direction at a time)
• HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
• Firmware upgradable
• Built- in 8KV / 15 KV ESD protection
• Plug-and-play
• Rack-mountable using the VE-RMK1U

Package Contents
1x VE2812PR HDMI HDBaseT Receiver with audio de-embedding / bi-directional PoH
1x RS-232 terminal block
4x Foot pads
1x Power adapter
1x User instructions
