HDMI and VGA+audio HDBaseT wall-plate transmitter

with PoH, IR and serial support, 4K @ 328 feet, HDBaseT Class A

Note: Receiver units are purchased separately

• Extends HDMI or VGA signals over a single CAT-5e/6/6a cable
• HDMI: 4K / 1080p at distance up to 328 feet (100 m) via a CAT-5e/6/6a or ATEN 2L-2910 CAT-6 cable
• VGA: 1600x1200 and 1920x1200 up to 328 feet (100 m) via a CAT-5e/6/6a or ATEN 2L-2910 CAT-6 cable

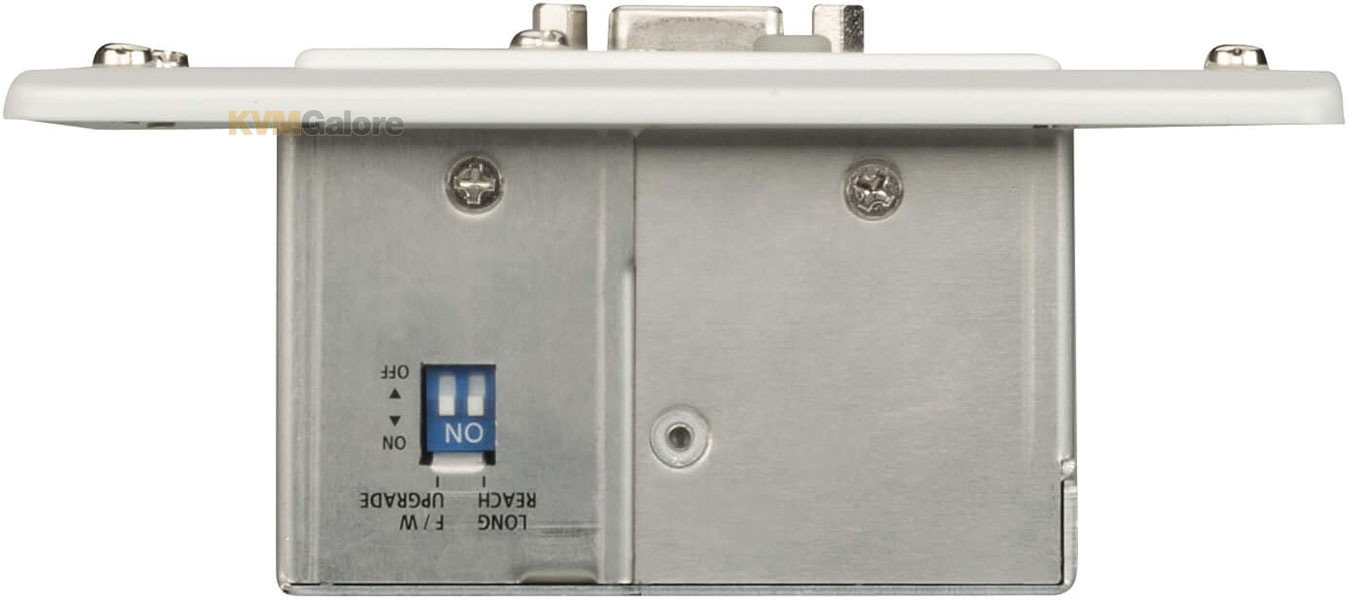

• Supports HDBaseT Long Reach Mode – up to 492 feet (150 m) via a single CAT-5e/6 cable at resolutions up to 1080p
• Built-in PoH (power over HDBaseT) function – VE2812AUST receives power supply from the HDBaseT output port on the connected device
• Supports Auto Switch – allows VE2812AUST to automatically switch to a newly plugged-in source

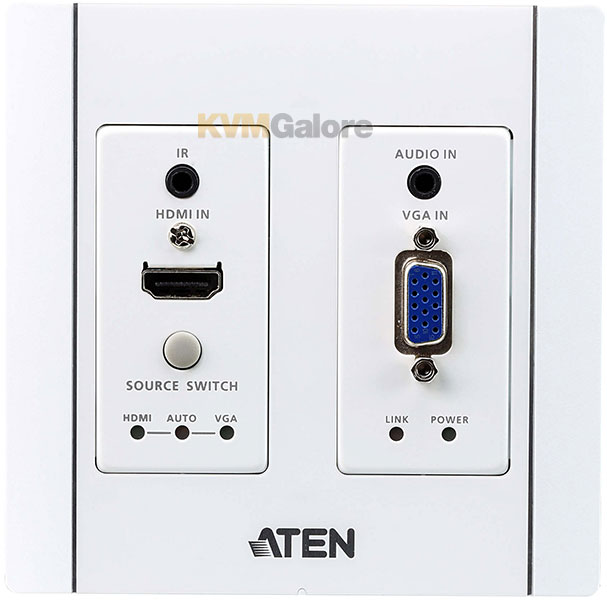

For mounting in standard 2-gang junction boxes, ATEN VE2812AUST is a wall plate transmitter for sending VGA (with audio) and HDMI signals, as well as IR/RS-232 signals, up to 328 feet (100 m) over a single CAT-5e/6/6a (or ATEN 2L-2910 CAT-6 cable) that is designed to merge with the clean and elegant decor of modern meeting rooms, boardrooms, conference rooms, classrooms, and lecture halls.

Designed to sleekly immerse with installation surfaces with a hidden snap design for its face plate, VE2812AUST supports legacy and popular AV interfaces like VGA, HDMI, and stereo audio so that you're ready to connect any device that is brought into the room.

In addition to transmitting video and audio, VE2812AUST maximizes HDBaseT™ technology capabilities and offers IR and RS-232 channels to control devices located in hard-to-reach areas as well as streamline the user operation experience.

VE2812AUST delivers superior video quality up to 4K @ 328 feet and 1080p @ 492 feet via a single CAT-6a / ATEN 2L-2910 CAT-6 cable, extending connections to whereever your output devices are located. Easily pair from ATEN's range of HDBaseT receivers (see listing below) to support diverse display interfaces such as DisplayPort, HDMI, and DVI.

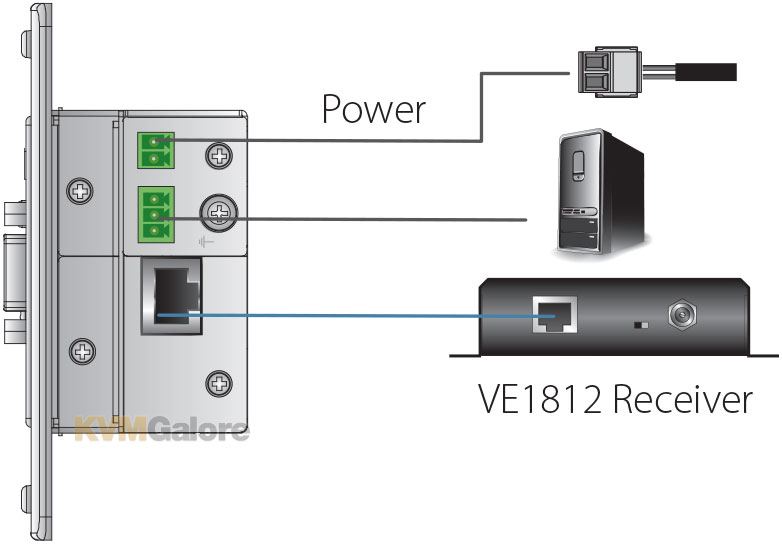

Featuring built-in PoH (power over HDBaseT) function, VE2812AUST receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. It supports power over HDBaseT (PoH) and allows powering from another power source equipment (PSE) device. No more worries about extending or installing power outlets.

VE2812AUST guarantees reliable transmission of HDMI signals, supporting 3D, Deep Color, and embedded HD lossless audio formats. It also ensures transmission of VGA (with audio) at distance up to 328 feet (100 m). In addition, it supports Long Reach Mode up to 492 feet (150 m) via a single CAT-5e/6 cable at resolutions up to 1080p.

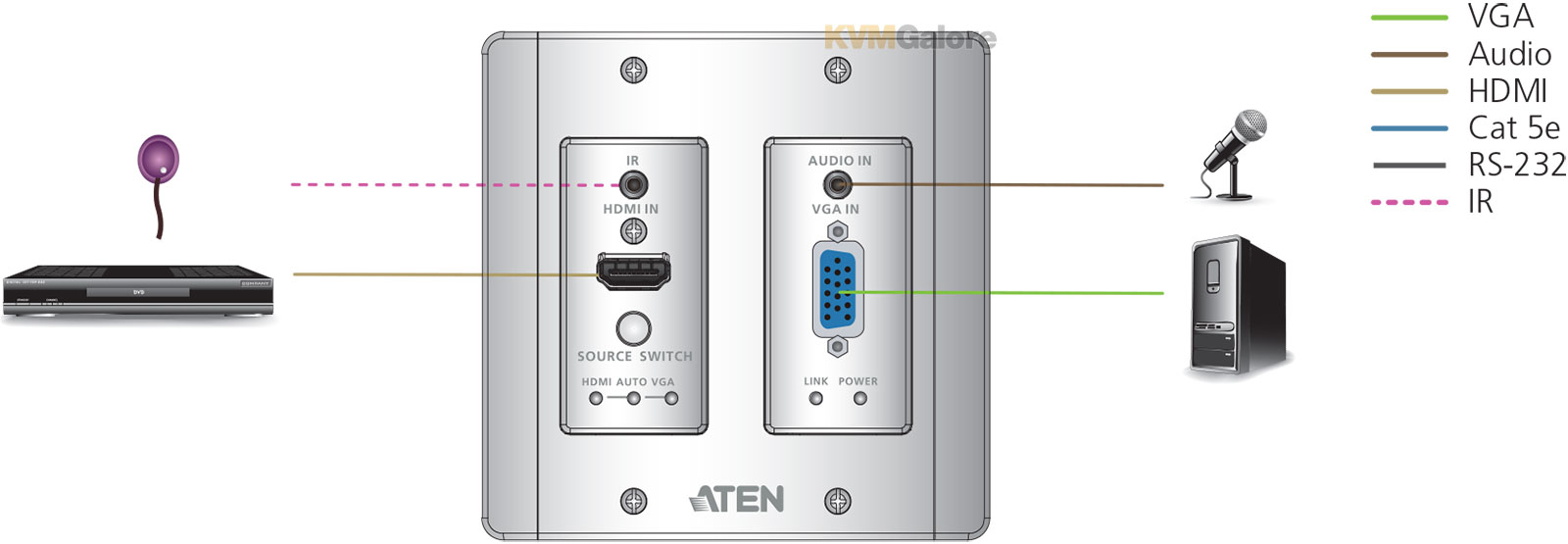

For utility flexibility, VE2812AUST can serve as a video switch by connecting two sources and distribute them to an identical output.

VE2812AUST is recommended to be deployed in paired with VE2812R. VE2812R can carry on IR/RS-232 from VE2812R to VE2812AUST, allowing users to remotely control VE2812AUST unit through RS-232 command mode via input port switching. The solution is ideal for a variety of settings, such as meeting rooms, digital educational environment or wherever high video quality is required. All compatible receivers are listed below.

ATEN VE2812AUST functions as a switch or a converter:
• A Switch: Connects two sources (HDMI or VGA)
• A converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)

The source switch button enables instant switching when required, while auto switch mode supports automatic switching to a newly plugged-in source and instant switching back to the previous source on disconnection. Also supports RS-232 for switching via alternate control interfaces.

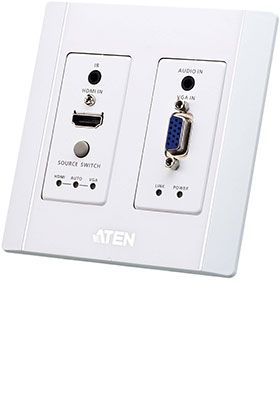

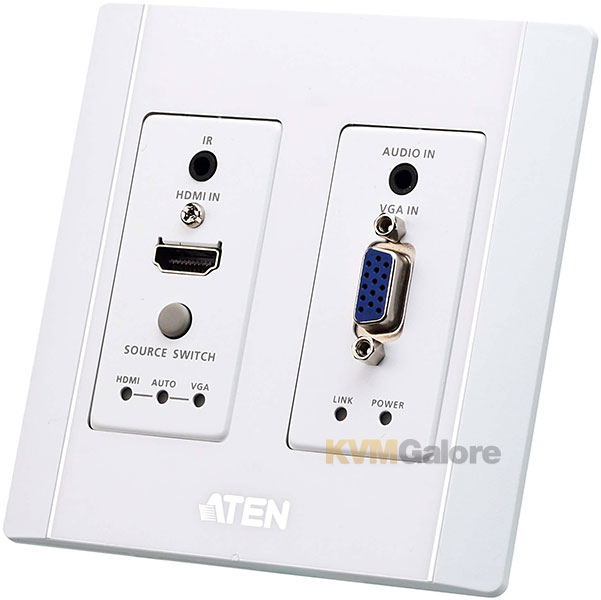

VE2812AUST perfectly blends with the environment. It comes with a stylish and sleek design for you to elegantly immerse extensions into the décor of any room.

Features and Benefits

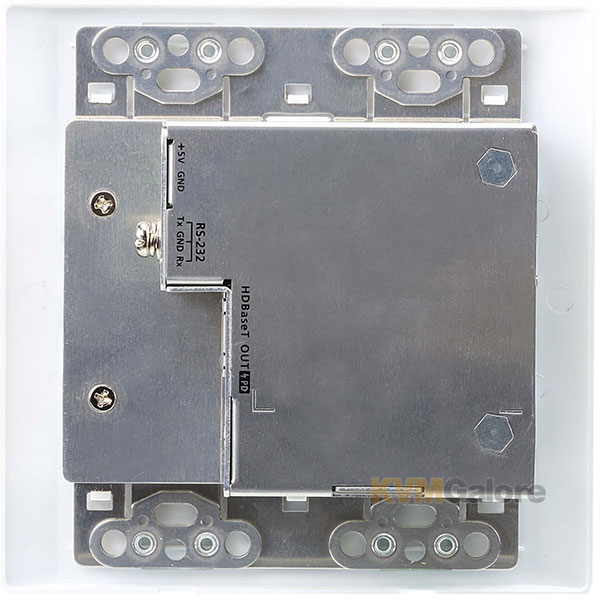

• Designed to mount in a two-gang junction box, compatible with US type
• HDMI (3D, Deep color, 4K); HDCP compliant
• RS-232 channel transmission – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
• Plug-and-play with no software installation required
• LED indication of sources and device status
• Compatible receivers – VE2812R, VE1812R, VE811R, VE814AR, VE801R, VE802R, VE601R, VE901R, or future ATEN HDBaseT receivers

Package Contents
1x VE2812AUST HDMI & VGA HDBaseT Transmitter with US Wall Plate / PoH

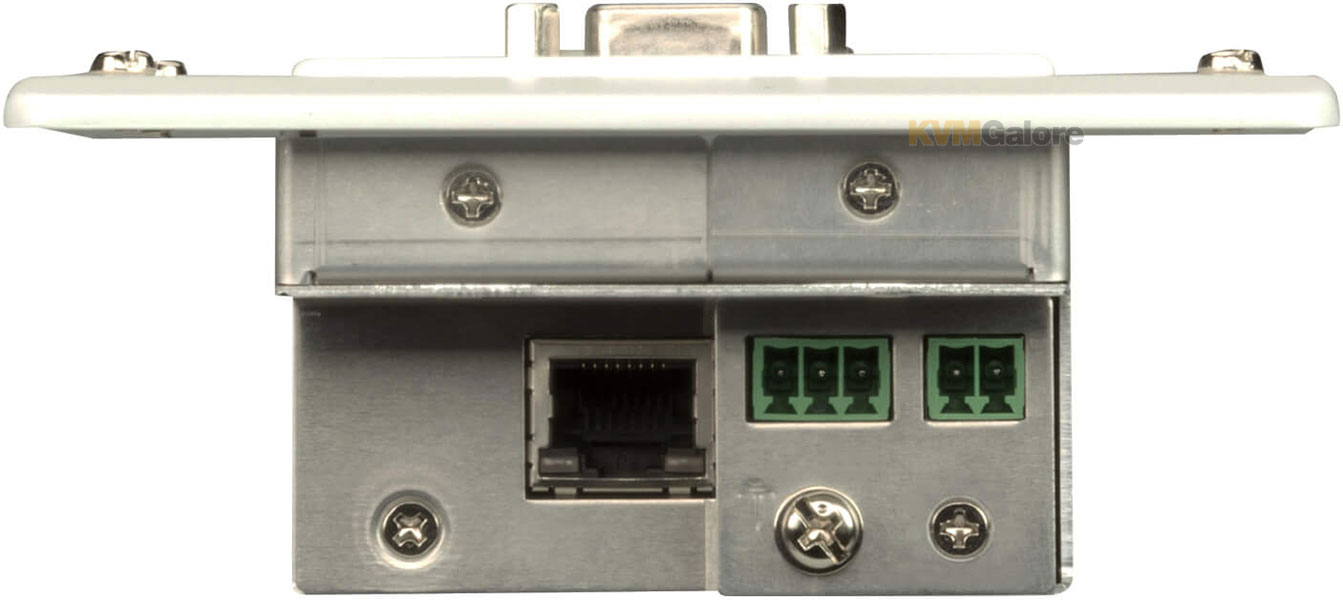

1x 3 Pin RS-232 Terminal Block
1x 2 Pin Power Terminal Block
1x Faceplate
1x Power Adapter
1x User Instructions
