2-port DVI dual-link splitter with audio

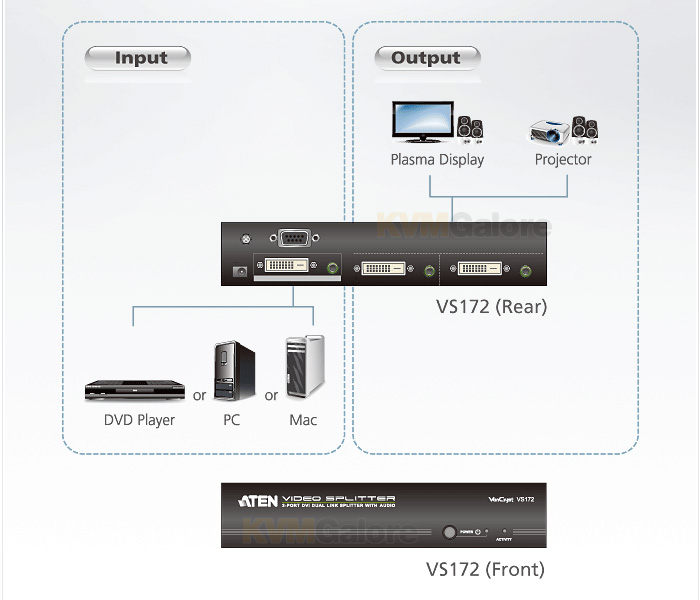

VS172 2-Port DVI dual-link splitter with audio combines DVI quality video and audio, taking signals from an audio/video source and replicating them to two audio/video outputs. This video splitter uses dual-link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560x1600.

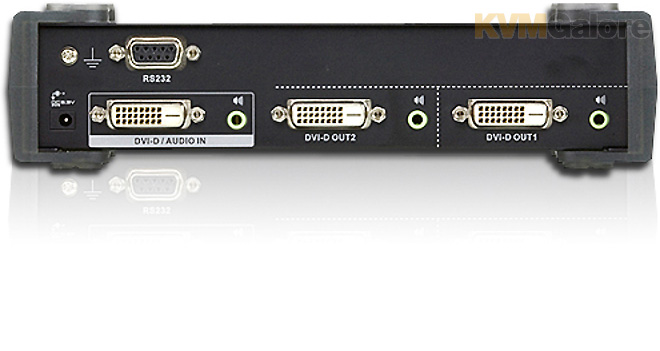

The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a control unit, PC, and/or home automation/home theater software package for complete system integration.
VS172 is easy to operate and can be cascaded to three levels, handling up to 8 monitors, which makes them the ideal solution for situations such as:
a) Broadcasting video information to the public (news headlines,stock prices, airline and train schedules, etc.)
b) Company training facilities
c) Classroom instruction
Features and Benefits
• Displays DVI audio/video to multiple DVI-compatible monitors or projectors
• Superior video quality – up to 2560x1600 @ 60Hz and 1080p
• Cascadable to 3 levels – provides up to 8 video signals
• Audio enabled
• Features RS-232 serial port for command controls
• RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
• EDID Expert – selects the optimum EDID settings via RS-232
Package Content
1x VS172 2-Port DVI Dual Link Splitter with Audio
1x Power Adapter
1x User Manual
