VE1821 - Model No. VE1821 - KVMGalore® | Tech Solutions Made Easy™
ATEN
  • MSRP $118.00
  • Savings$29.51
  • Our Price $88.49
For additional views click on an image below

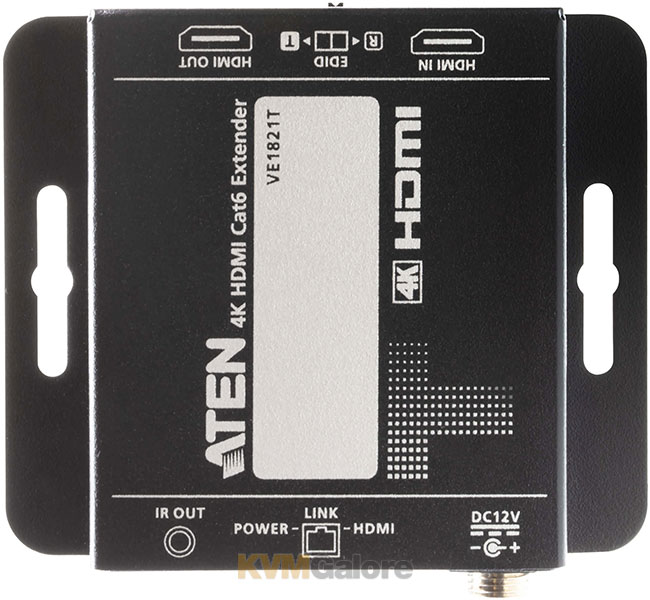

Image 1 of 7 - VE1821 Transmitter unit. view

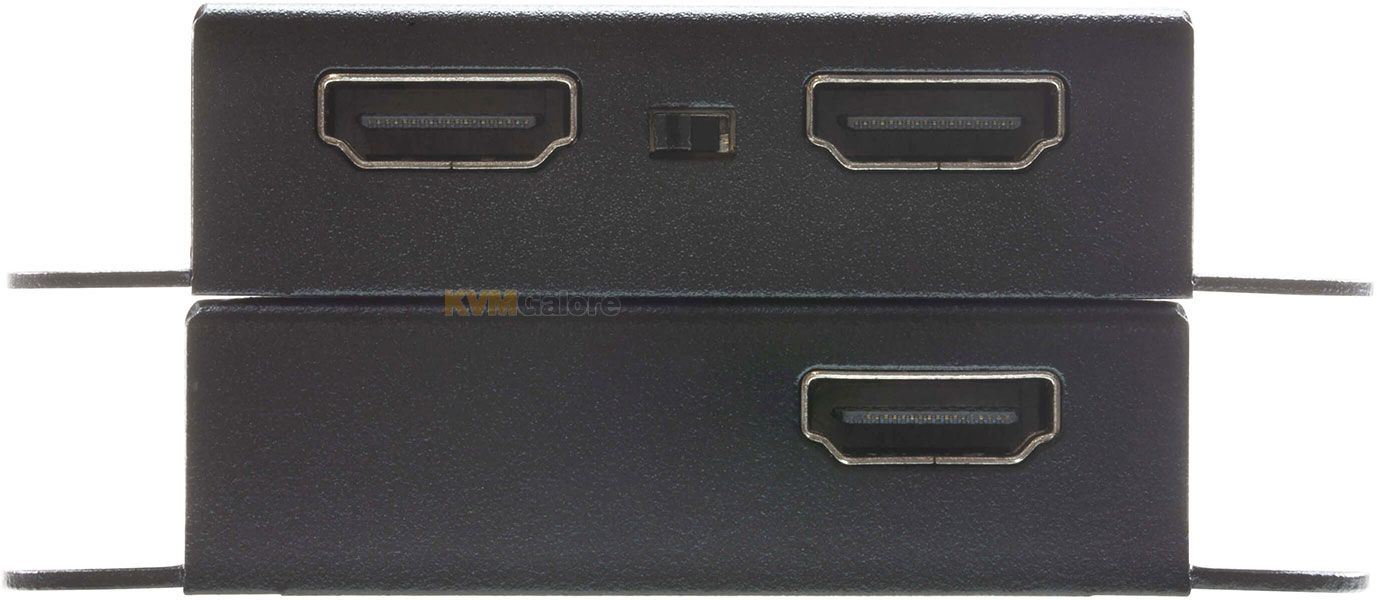

Image 2 of 7 - VE1821 Transmitter unit (top) and Receiver unit (bottom). view

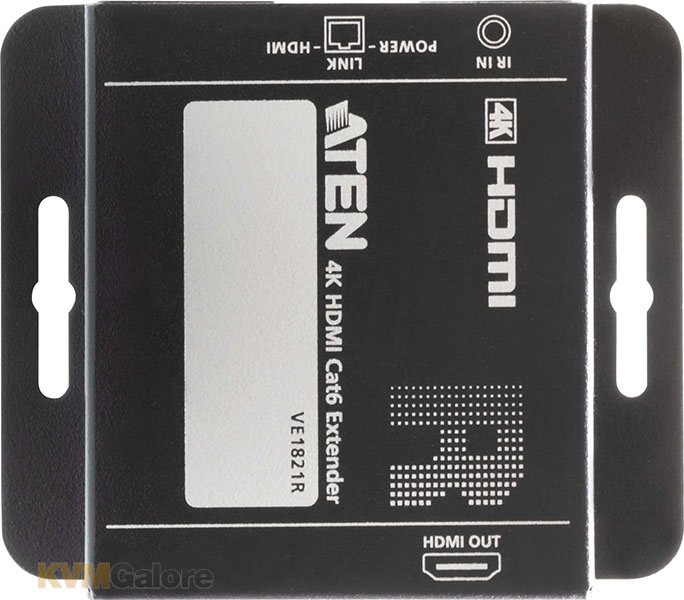

Image 3 of 7 - VE1821 Receiver unit. view

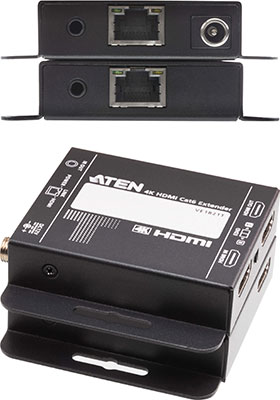

Image 4 of 7 - VE1821 Transmitter unit (top) and Receiver unit (bottom). view

Image 5 of 7 view
Image 6 of 7 view

Image 7 of 7 view

VE1821

Model No. VE1821 Ships in 7-10 business days or less

VE1821
Buy this item and earn 88 ClubPoints.

4K HDMI CAT-6 extender

• Crystal clear 4K HDMI transmission with zero latency across up to 130 feet (40 m) via a CAT-6 cable (ATEN 2L-2910 recommended) / 98 feet (30 m) via a CAT-5e cable
• Local HDMI output port on the transmitter unit - enables cascading or users to monitor the Ultra-HD signal being extended to the receiver
• EDID Copying Mode - HDMI source can be displayed at the optimal resolution based on the capabilities of the connected display
• PoC (power over cable) Technology - power can be delivered from the transmitter to the receiver via a CAT-5e/6 cable to eliminate the need for a bulky external power supply

As a complete end-to-end solution, VE1821 comes as a kit that contains a transmitter and a receiver, extending HDMI signals at 4096x2160/3840x2160 @ 30Hz (4:4:4) up to 130 feet (40 m) via a CAT-6 cable (ATEN 2L-2910 recommended).

Crystal-clear video presentation is guaranteed thanks to its capability of transmitting 4K sources without latency. Meanwhile, it supports lossless audio formats, such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, to add superior sound to the video content, enhancing the experience for the viewers.

Designed to optimize installation flexibility, VE1821 features an ultra lightweight, palm-sized enclosure, perfect for mounting or placement in tight spaces.

The transmitter includes a local HDMI output port, allowing for cascading purposes or for users to monitor the Ultra-HD signal being extended to the receiver.

With the built-in EDID switch, users can control which EDID is taken from either display. Plus, the HDMI source can be displayed at the optimal resolution based on the capabilities of the connected display through the EDID Copying Mode.

As a result of the IR transmission functionality, the source device connected to the transmitter can be seamlessly controlled from the receiver side, assuring easy and complete control for the user.

VE1821 adopts PoC (power over cable) technology, which enables the transmitter to provide power to the receiver via a CAT-6 cable, eliminating the need for a bulky external power supply.

With such a rich set of features, VE1821 delivers excellent AV transmission quality and flexibility within different installation scenarios, such as meeting facilities, retail settings, entertainment systems, and more.

Features and Benefits
• Includes a transmitter and a receiver to work in tandem to extend 4K HDMI signals over a CAT-5e/6 cable
• Ultra lightweight, palm-sized enclosure for easy mounting or placement in tight spaces
• Built-in EDID switch - users can control which EDID is taken from either display
• IR signal transmission - the source device connected to the transmitter can be seamlessly controlled from the receiver side
• HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
• Built-in ESD protection
• Plug-and-play - no additional software needed

Package Content
1x VE1821T 4K HDMI CAT-6 Transmitter
1x VE1821R 4K HDMI CAT-6 Receiver
1x IR emitter cable
1x IR receiver cable
1x Power adapter and 4 power plugs
1x User instructions
