VS92A

Model No. VS92A Ships within 3-4 business days or less

VS92A
Buy this item and earn 32 ClubPoints.

2-port video splitter with 350 Mhz video bandwidth and signal boosting up to 210 feet

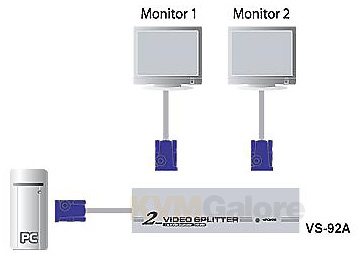

VS92A is a signal booster and splitter that is used to take video input from a single source and direct it to two video outputs for monitors using analog signals. The signal boost obtained by using the VS92A allows you to not only split the signal but to extend the distance so that you can send the signal to about 210 feet. (Your average VGA card, combined with a standard VGA cable, can send a clear VGA signal approximately 25 feet.) This makes public broadcasts from a single computer very feasible. If you want to display the same information on many monitors at once, such as in a classroom environment, or at a demonstration, this product performs incredibly well.

Bandwidth is the term that is used to describe the signal capacity of these units. In general, bandwidth is directly proportional to the amount of data transmitted per unit of time. Specifically, in analog signals, bandwidth is the difference between the highest-frequency and the lowest frequency components of a givin signal. For example a voice telephone signal has a bandwidth of 3000 Hz (or 3000 cycles per second), where an analog TV signal has a bandwidth of approximately 6MHz (or 6 million cycles per second) which is approximately 2000 times greater than a simple voice phone call.

VS92A has a bandwidth of 350MHz (which is 350 million cycles per second) and that over 40 times greater than a simple TV signal. This huge bandwidth allows for the transmission of large amounts of information at a very high rate of speed, and thus you can use the very high resolution setting of 1920 x 1440 in 24 or 32 bit true color mode.

Features and Benefits

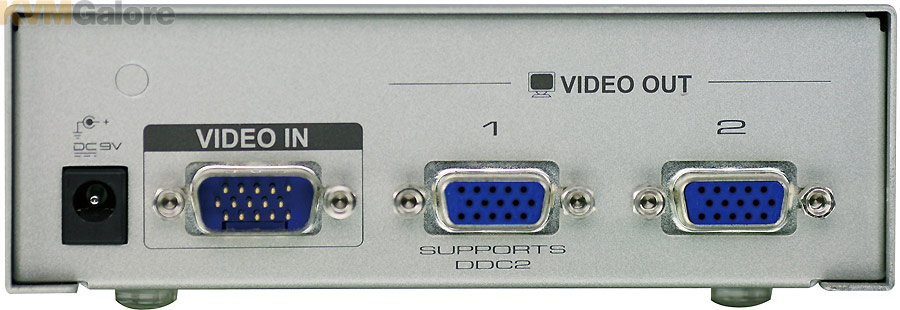

• One video input to 2 video outputs
• Cascadable to 3 levels - provides up to 8 video signals
• Supports 350 MHz bandwidth
• Long-distance transmission - up to 210 feet
• Superior video quality - 1920x1440 @ 60Hz
• DDC, DDC2, DDC2B Compatible (Port 1 only)
• Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors

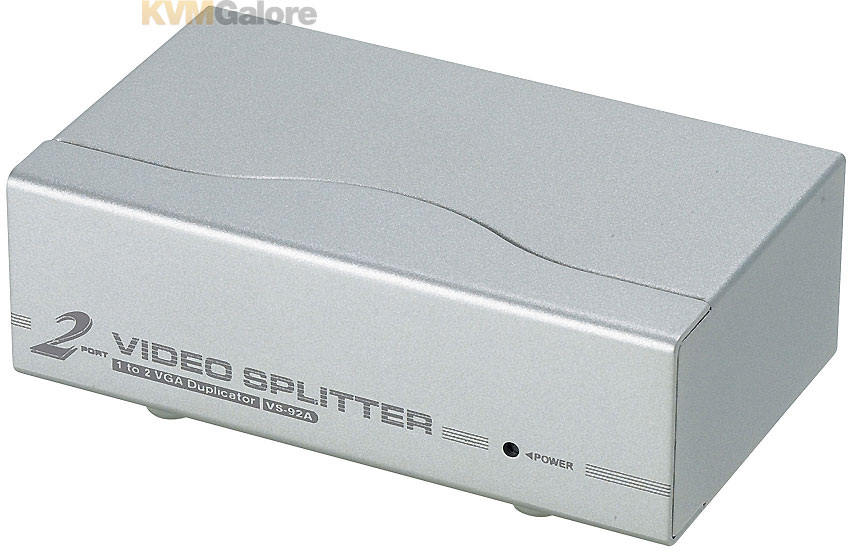

• All metal casing

Package Content
1x VS92A Video Splitter
1x Power Adapter
1x User Manual
