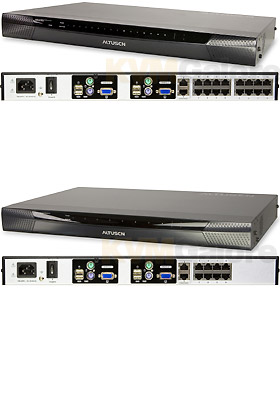

KH-Series 2-User CAT-5 KVM Switches

8- and 16-port, 2-user CAT-5 KVM switches

controlling up to 4096 cascaded PC, USB, Sun, and Linux computers through two PS/2 or USB consoles

KH-Series 2-User CAT-5 KVM Switches CAT-5 KVM switches are dual channel devices, allowing two operators to independently and simultaneous access up to 16 directly connected computers, and up a maximum of 4096 servers through three level cascading. Cascading is achieved via dedicated RJ-45 cascade ports and CAT-5e cabling.

Security consists of two level access (Administrator and User) password / user name protected. The Administrator can set user access on a port-by-port basis, and as many as 96 user accounts can be created.

The CAT-5 connections allow servers to be separated from the KVM by up to 130 ft. with a maximum video resolution of 1280x1024 @ 75Hz.

The KVMs support mixed environments of Windows, Mac , Linux, Unix, Novell, and OS/2 and employs keyboard emulation for special Mac and Sun keys.

KH2508: 8-ports

KH2516: 16-ports
