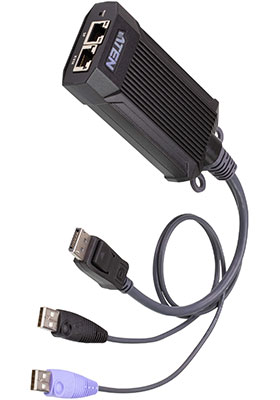

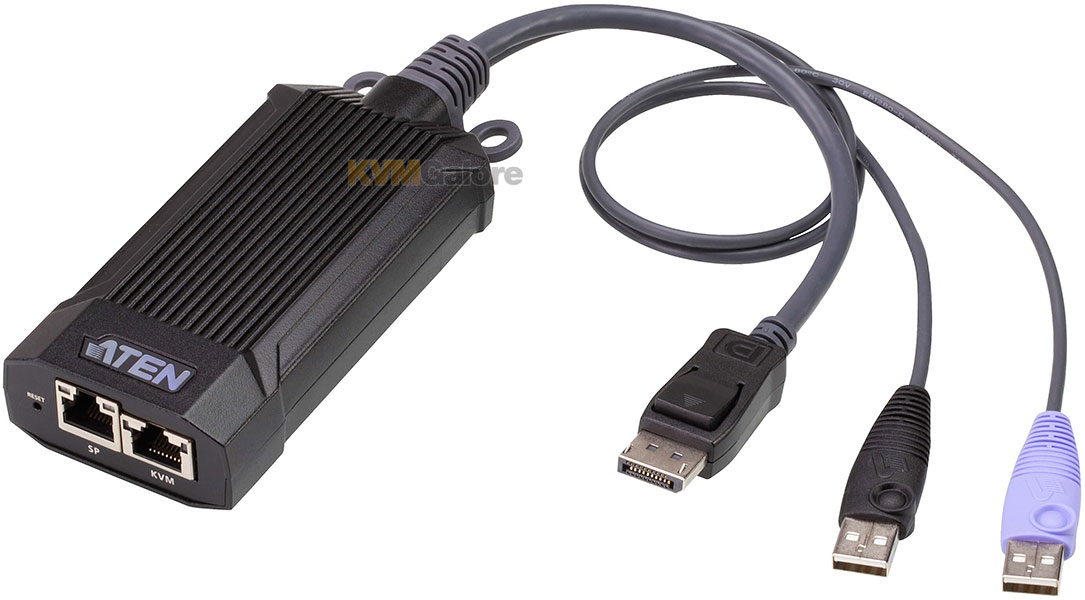

DisplayPort, USB KVM DigiProcessor (dongle)

with fast virtual media

• Superior video quality - supports resolutions up to 1920x1200 @ 60Hz; 24-bit color depth
• Distortion-free dynamic video performance up to 328 feet (100m) via a CAT-5e/6 cable
• Virtual media supports fast transmission speeds up to read 265Mbps / write 188Mbps
• Light-weight aluminum die casting shroud - enhanced passive cooling design with streamlining stripe all around the shroud to help quick radiation

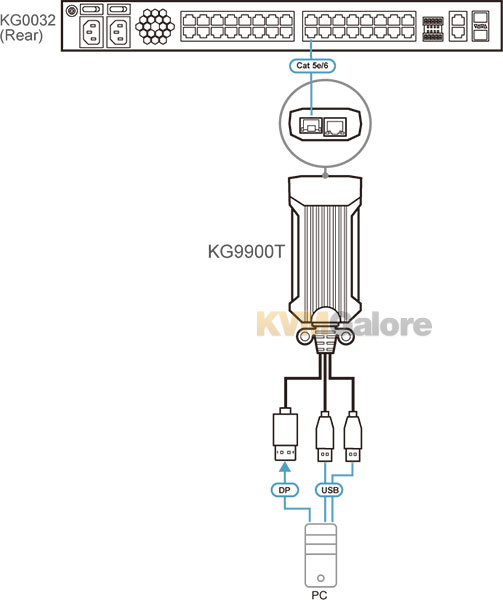

KG9900T USB DisplayPort KVM DigiProcessor can centrally connect from the KVM over IP OmniBus Gateway to the target computer.

Its digital signal delivers superior signal compensation for greatly enhanced video quality up to 1920x1200 @ 60Hz, 24-bit color depth and raises the data transfer rate faster than traditional KVM solutions. This plug and play KVM DigiProcessor is built with a powerful SoC that provides excellent video compression performance.

Its zero-U and light weight design allows for an efficient and tidy installation, providing an ideal space-saving solution.

KVM DigiProcessor is perfectly suited to data center, server room, control room and high tech production line applications.

Virtual Media Support for Prompt Server Updates
Mapping media to a remote server as though it were saved locally does the trick for timely troubleshooting, reducing travel cost and minimizing mean time to repair (MTTR). With a superb data transfer rate (i.e. read: 265 Mbps, write: 188 Mbps) proven to be 10 times faster than standard KVM over IP switches, performing firmware upgrades, diagnostic tests, file transfers, and installing software and application patches can all be accomplished smoothly and quickly from a single console located anywhere.

More Features and Benefits
• Space saving - 0U and compact design with SR mounting hanger for organized server rack installation
• Bus-powered - no external power adapter required with ultra-low power consumption*
• Firmware upgradable

* Make sure to connect both USB connectors to the server's USB ports to ensure sufficient power supply

Notes
1) ATEN KVM DigiProcessor is only compatible with KG0016 / KG0032
2) Make sure KG0016 / KG0032 and KVM DigiProcessor are connected directly with each other and there is no network switch in between
3) The SP port on KVM DigiProcessor is reserved for future expansion
