HDMI KVM over IP console station

• A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN's KVM over IP switches/LCDs/gateways
• Advanced FPGA graphics processor – with a Full HD resolution of 1920x1200 @ 60Hz
• Panel Array Mode™ – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
• Supports Boundless Switching – allows users to control up to 3 screens between two console stations by using one set of keyboard and mouse

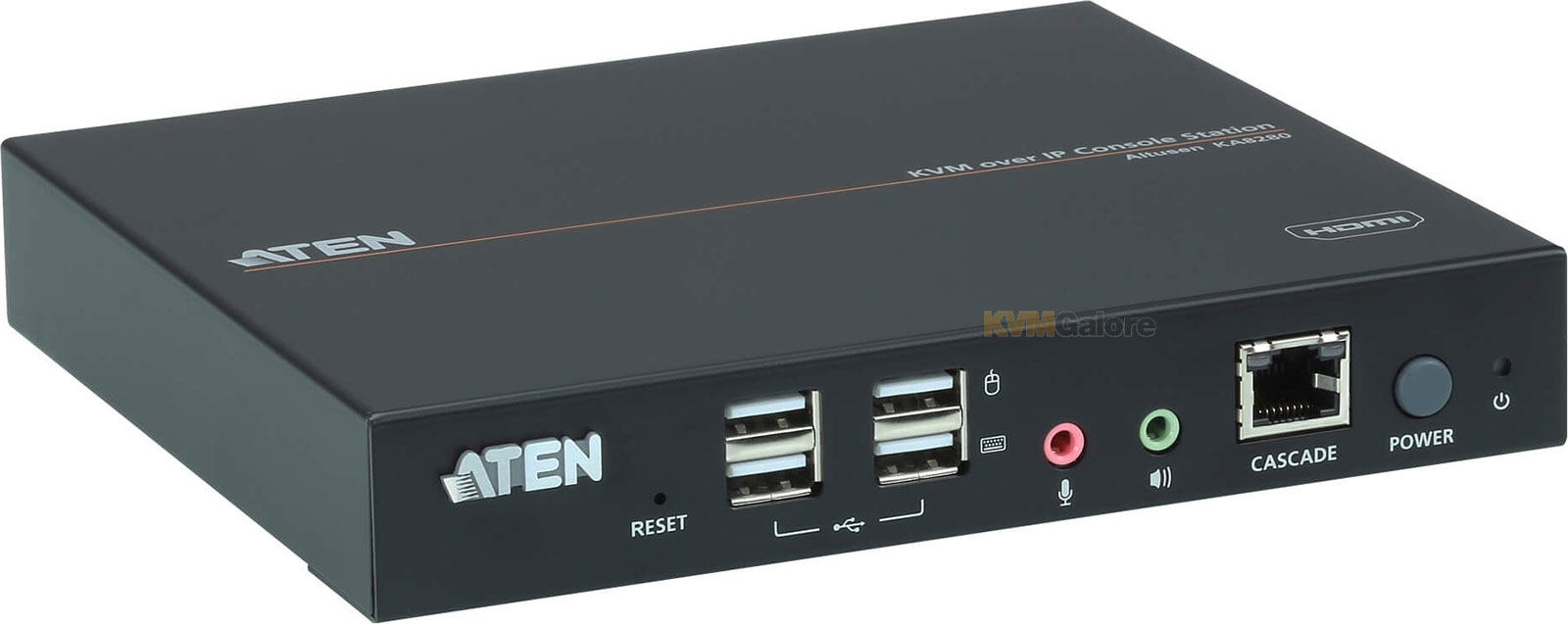

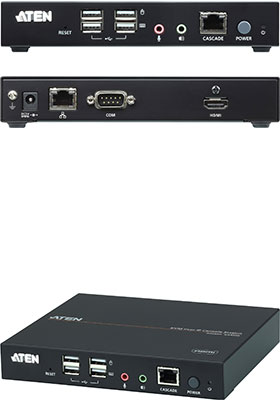

ATEN's KVM over IP console station KA8280 is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN's KVM over IP switches* with impenetrable security against virus threats.

KA8280 supports various data encryption methods, ensuring impervious data protection.

The KVM over IP console station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC).

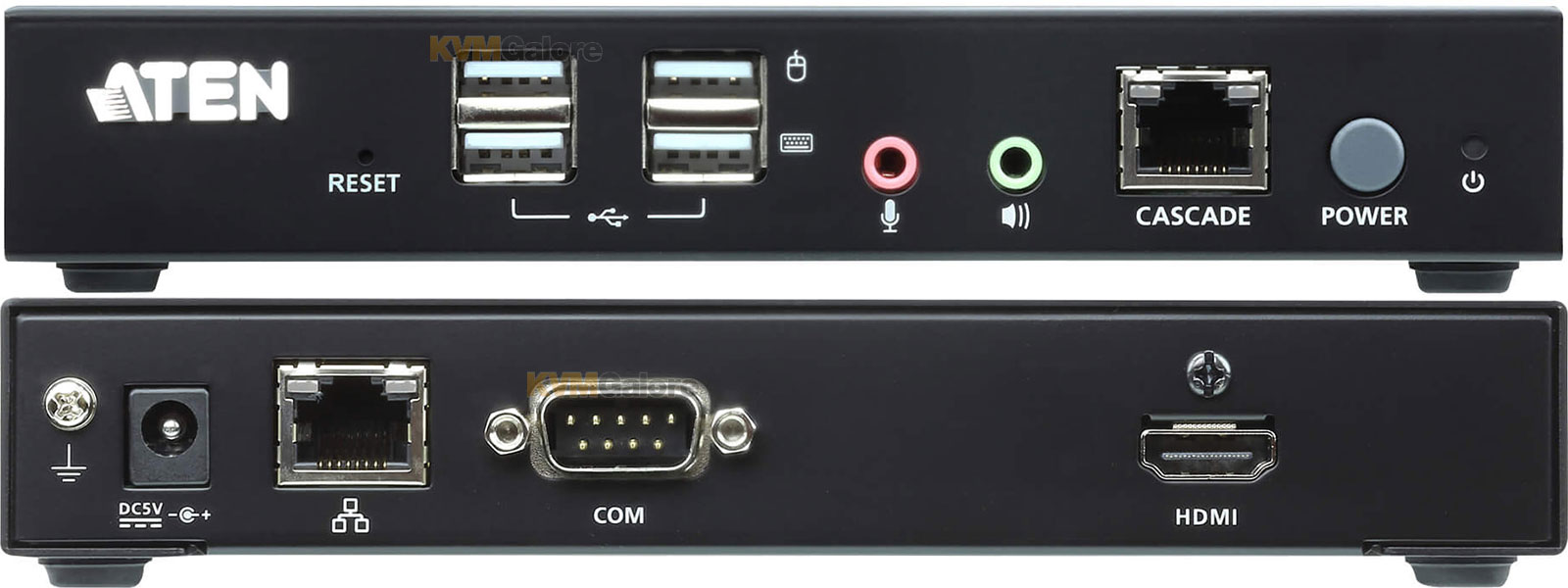

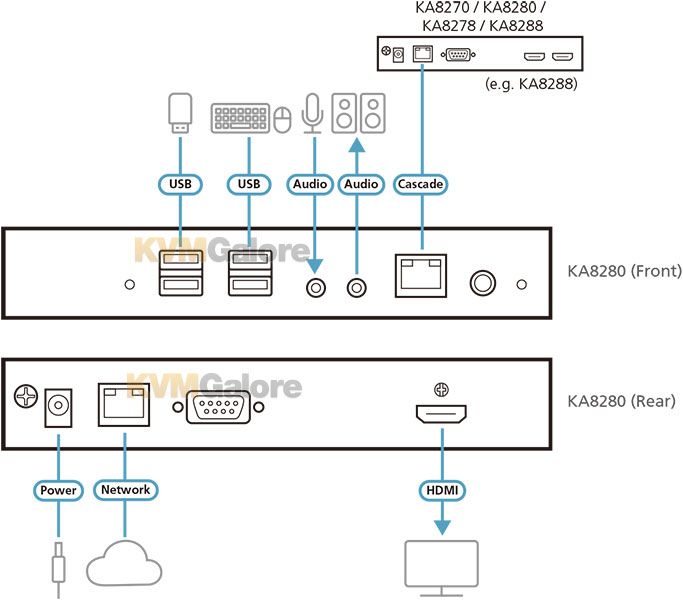

KA8280 supports USB mouse/keyboard and two USB ports for virtual-media function, and supports an HDMI video output at resolutions up to 1920x1200 @ 60Hz.

In addition, the KVM over IP console station provides Panel Array Mode™ function, enabling administrators to monitor the video output of up to 64 servers simultaneously. The feature makes it possible for previewing the content of all the ports at the same time, which is especially suitable for environments such as manufacturing and surveillance that often require monitoring of a much higher number of ports.

KA8280 KVM over IP console station also supports Telnet / SSH for management of console devices to allow users to have flexible control of all connected devices.

To ensure security, its lock screen password function can effectively prevent unauthorized users from accessing an unattended console station to keep any critical data protected.

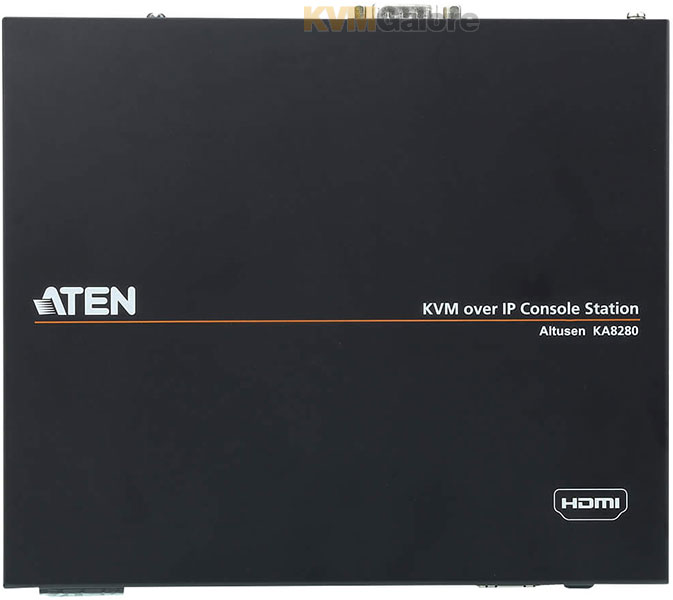

The KVM over IP console station can be set on a desk, mounted on a wall or at the rear of a rack with its spacesaving zero-U rack mount design. It is flexible and easy to install, and provides a GUI with multi-language interface for device management, user profile customization, as well as hassle-free configuration for large deployments.

Features and Benefits
• Impenetrable security against virus threats and impervious data protection
• Single sign-on to consolidate the management of multiple ATEN's KVM over IP switches
• HDMI video output
• Share screen – shares screen content from one console station to another for real-time collaboration
• Supports Telnet / SSH for connecting to and management of console devices
• Lock screen password – prevents unauthorized users from accessing the console station when unattended
• Supports virtual-media
• Supports USB smart-card
• Wall mountable – standard mounting kit included
• Space-saving zero-U rack mount design for rear rack mounting
• GUI with multi-language interface

* Compatible KVM over IP Switches/LCDs/Gateways
• CN8000A
• CN9000
• CN9600
• CN9950
• KL1108V
• KL1116V
• KN1000A
• KN1108VA
• KN1116VA
• KN1132V
• KN2116VA
• KN2124VA
• KN2132VA
• KN2140VA
• KN4116VA
• KN4124VA
• KN4132VA
• KN4140VA
• KN4164V
• KN8132V
• KN8164V

Package Contents
1x KA8280 HDMI KVM over IP Console Station
1x Power Adapter
1x Power Cord
1x Mounting Kit
1x Foot Pad Set
1x User Instructions
