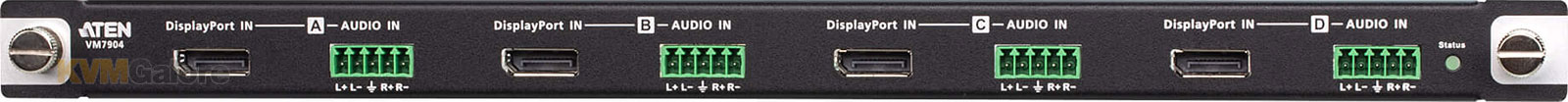

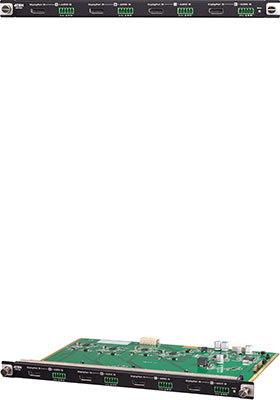

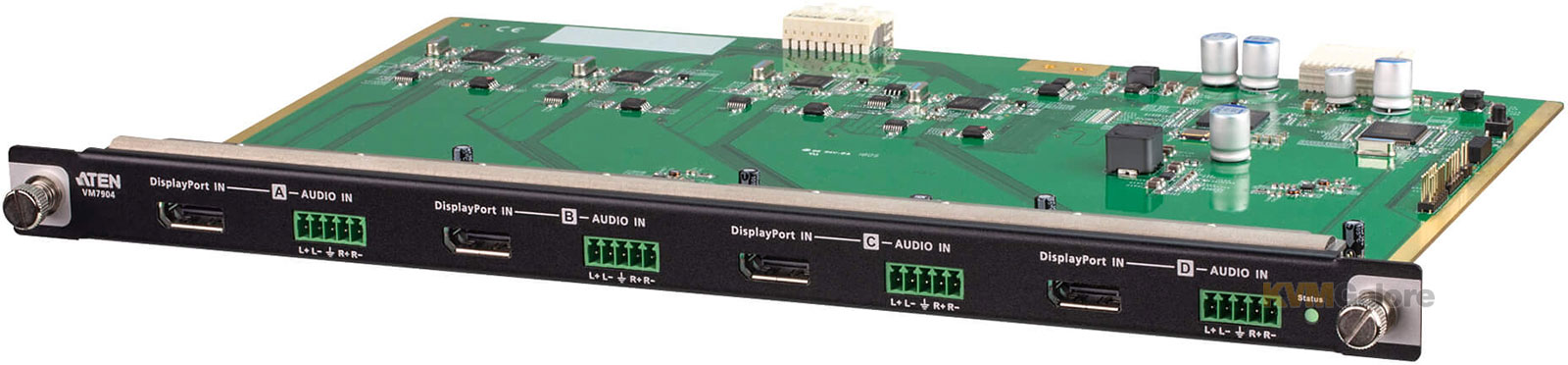

4-port 4K DisplayPort input board for ATEN modular matrix digital A/V switches
• Compatible with the VM1600A / VM3200; mix and match with modular I/O boards of any type for optimum flexibility
• Superior video quality – up to 4096x2160 / 3840x2160 @ 30 Hz (4:4:4)
• Audio-enabled - DisplayPort audio can be exracted and stereo audio can be embedded
• Support DisplayPort 1.1 with data rate up to 10.8 Gbps (2.7 Gbps per lane)

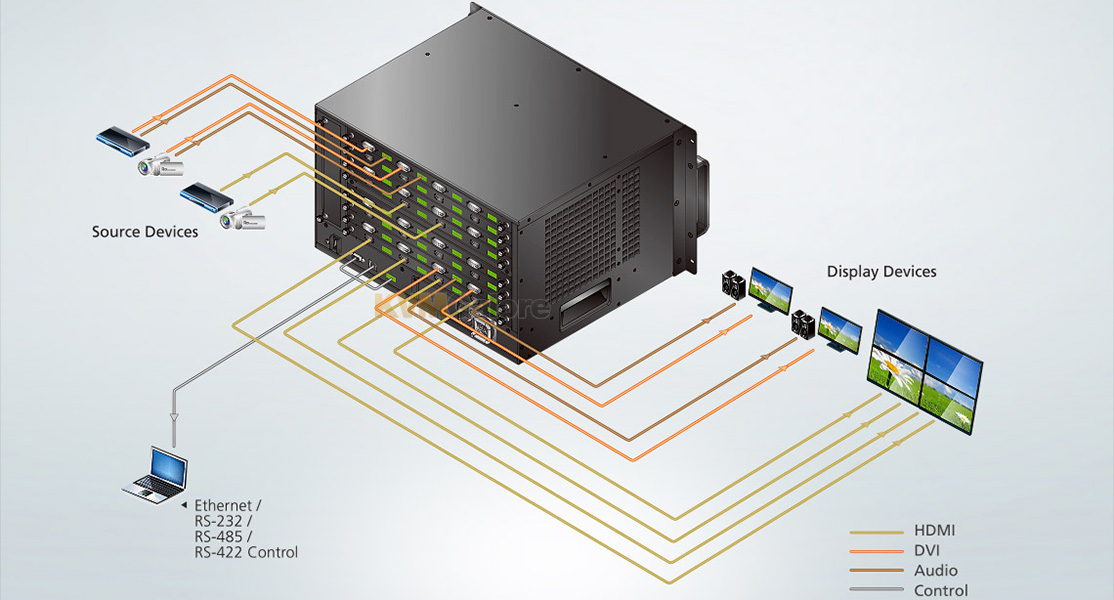

VM7904 is a 4K DisplayPort input board that works with an ATEN modular matrix switch to offer an easy way that routes 4 DisplayPort video and audio sources to up to 16 or 32 displays. In addition to the DisplayPort interface that carries digital A/V signal, VM7904 also provides 4 stereo audio input ports that allow stereo audio to be routed independently or embedded for digital output.
Ideal for high-resolution video wall applications, VM7904 effectively routes DisplayPort sources with 4K resolution up to 4096x2160 @ 30Hz (4:4:4) and EDID Expert technology for the optimum resolutions across different displays. All of ATEN's VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. VM series input/output boards along with ATEN modular matrix switch offer flexible solutions that perfectly meet your demands for video-critical applications.
Features and Benefits
• Connects up to 4 DisplayPort inputs to up to 16 (VM1600A) or 32 (VM3200) displays
• EDID Expert –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
• HDCP 2.2 Compliant
• Hot-swappable design for easy integration and maintenance
Package Contents
1x VM7904 4-Port 4K DisplayPort Input Board
4x Terminal Blocks
1x User Instructions
