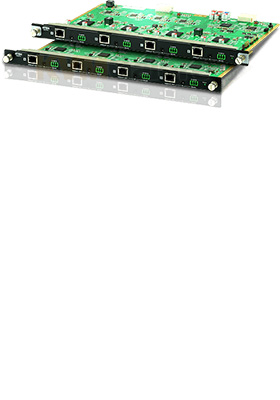

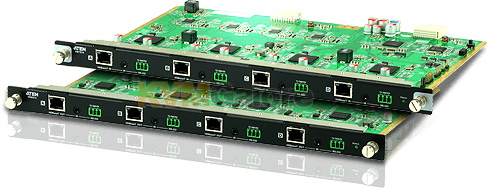

4-port HDBaseT output board for ATEN modular matrix digital A/V switches
VM8514 4-port HDBaseT output board offers an easy way route 4 HDBaseT transmitters to 4 HDBaseT receivers, and in combination with the ATEN modular matrix switches to provide the ability of routing up to 32 input and 32 output HDBaseT connections.
When VM8514 HDBaseT output board is used in conjunction with the VE805R HDBaseT receiver it features Seamless Switch™ technology and video wall functionality. ATEN’s Seamless Switch™ technology provides video switching in real-time with a built in scaler that handles different video resolutions across different displays and video wall features that allow you to configure up 32 profiles for custom layouts via the point-n-click web GUI.
Features and Benefits

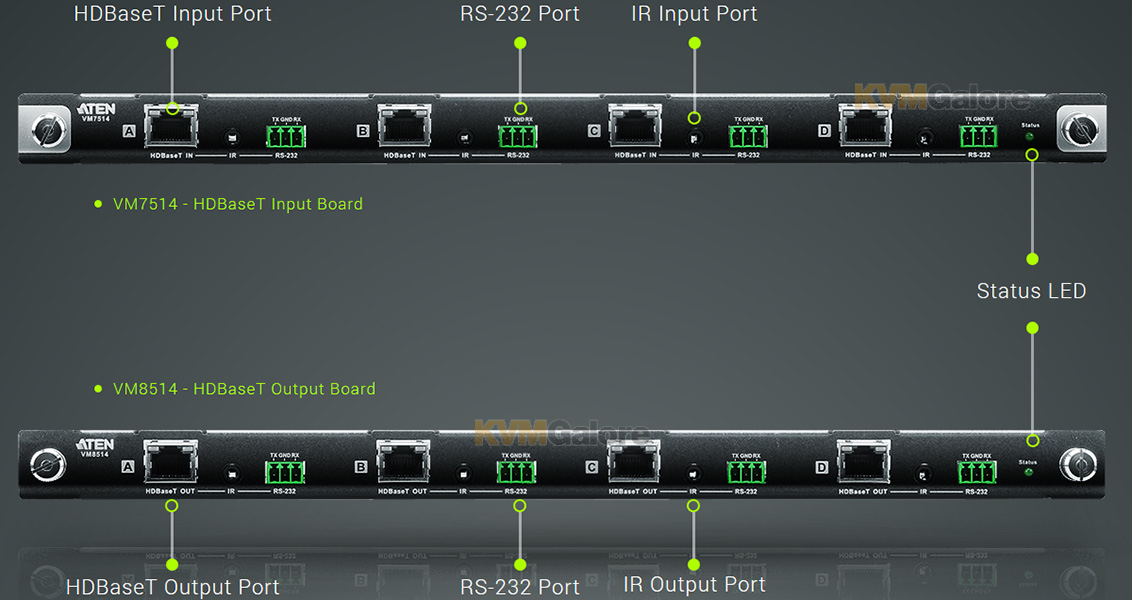

• Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility
• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
• HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
• HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
• Bi-directional IR channel – IR transmission is processed one direction at a time
• Hot-swappable design for easy integration of I/O boards
Features and Benefits when Connected to VE805R
• Seamless Switch™ – features close-to-zero-second switching, continuous video streams, real-time switching and stable signal transmissions
• Video Wall – features configurable video wall profiles for custom layouts via point-n-click web GUI
Package Contents
1x VM8514 4-Port HDBaseT Output Board
4x Terminal Block Connectors
1x IR Transmitter
1x IR Receiver
1x User Instructions
