4-port HDMI input board for ATEN modular matrix digital A/V switches

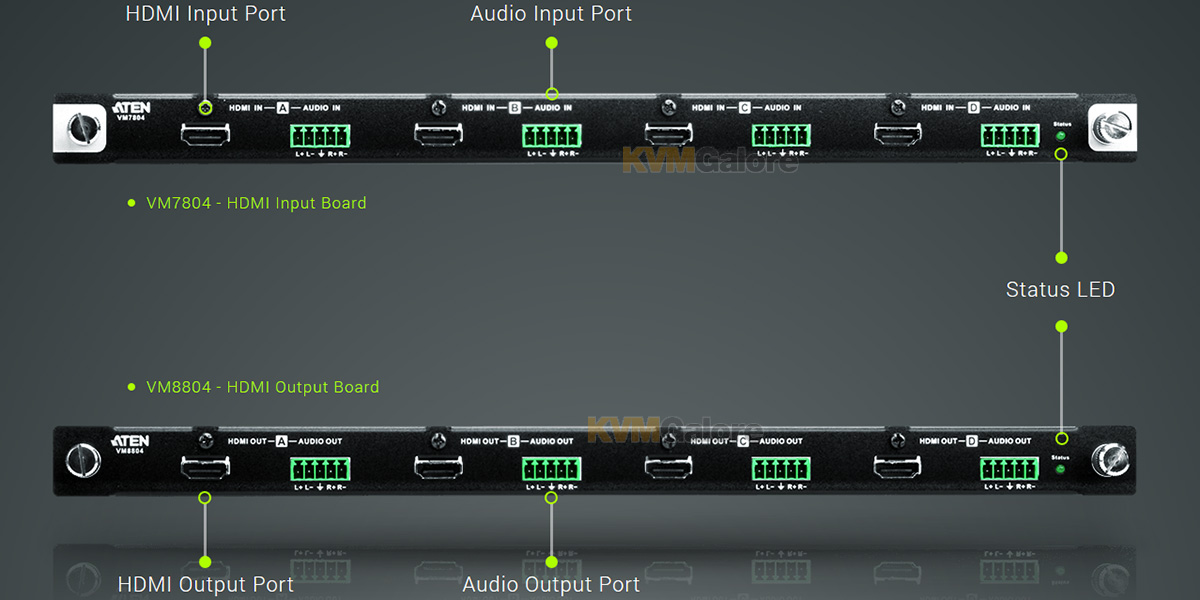

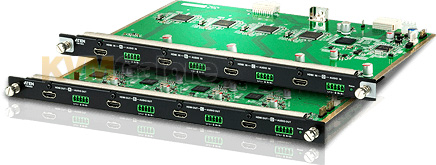

VM7804 4-port HDMI input board offers an easy way to route any of 4 HDMI audio/video sources in combination with an ATEN modular matrix switch.
VM7804 also supports HDMI audio that can be extracted and stereo audio that can be embedded.
Features and Benefits
• Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
• HDMI (3D, Deep Color); HDCP 1.4 Compatible
• Built-in scaler on each output port to support the scaling function for different video Resolutions
• Consumer Electronics Control (CEC) support
• EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
• Built-in EDID wizard – provides an easy way to customized EDID settings
• Hot-swappable design for easy integration of I/O boards
• Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
Package Contents
1x VM7804 4-Port HDMI Input Board
4x Terminal Block Connectors
1x User Instructions
