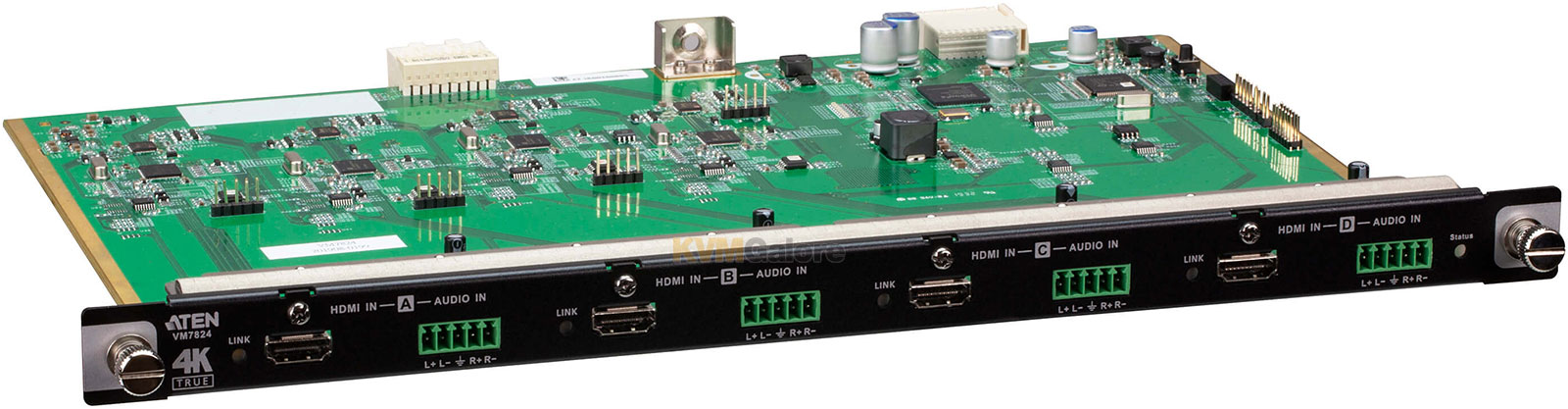

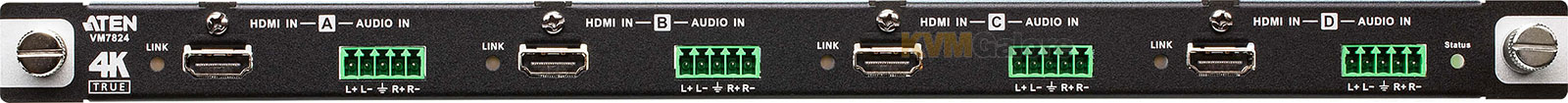

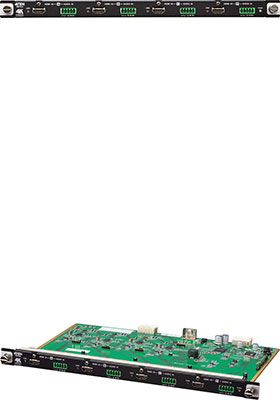

4-port True 4K HDMI input board for ATEN modular matrix digital A/V switches
• Compatible with VM modular matrix switches
• Mix and match with modular I/O boards of any type for optimum flexibility
• True 4K resolutions
• Audio-enabled
• Cable quality tester
VM7824 is a True 4K HDMI input board that works with an ATEN VM modular matrix switches to offer an easy way to route 4 HDMI audio/video sources to 4 displays with True 4K high-definition images support. In addition to the HDMI interface that carries digital A/V signal, VM7824 also provides 4 stereo audio input ports that enable stereo audio embedding.
All of ATEN's VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN VM modular matrix switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
Features and Benefits
• True 4K resolutions – handles uncompressed video resolutions up to 3840x2160 / 4096x2160 @ 60Hz (4:4:4)
• True 4K EDID expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
• Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
• Cable quality tester – examines the HDMI cable quality
• HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
• Consumer Electronics Control (CEC) support
Package Contents
1x VM7824 4-Port True 4K HDMI Input Board
4x Terminal Block Connectors
1x User Instructions
