4-port 10G SingleMode optical HDMI input board

for ATEN modular matrix digital A/V switches, supporting 4K up to 6.2 miles

• Compatible with VM modular matrix switches; mix and match with modular I/O boards of any type for optimum flexibility
• Superior video quality over long-distance transmission – up to 4096x2160 @ 60Hz (4:2:0), 6.2 miles with VM7584K2 and single-mode fiber
• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners*
• Bi-directional IR channel – IR transmission is processed one direction at a time, ranging from 30 kHz to 60 kHz*

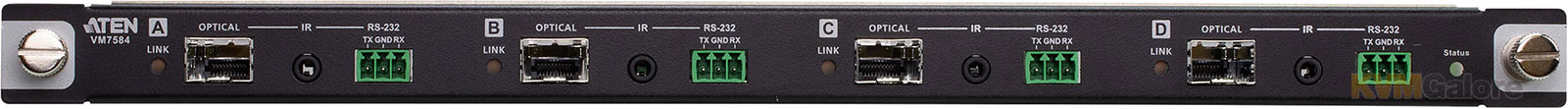

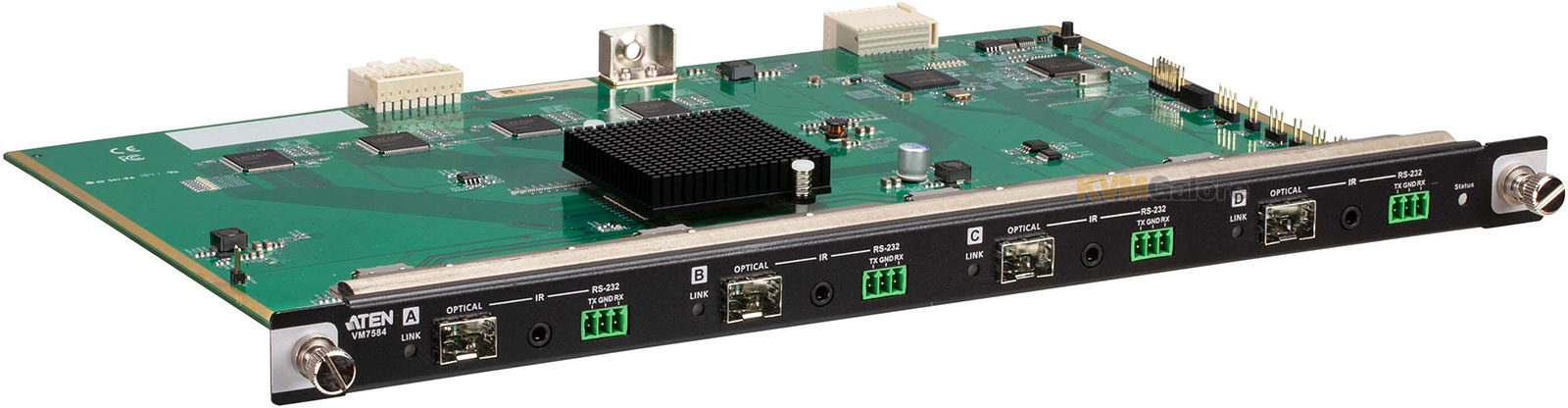

VM7584K2 4-port 10G optical input board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN VM modular matrix switch through various AV interfaces.

Designed with fiber optics technology for long-distance transmission, VM7584K2 along with its SFP+ modules extends uncompressed 4K signal up to 6.2 miles over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, VM7584K2 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.

ATEN's VM input/output boards are hot-swappable which gives system integrators great flexibility and efficiency for installation and maintenance. ATEN's VM input/output boards along with ATEN's VM modular matrix switches offer ideal solutions that perfectly meet your demands for scalable video-critical applications.

Features and Benefits
• Compatible with the VM3250 / VM3200 / VM1600A; mix and match with modular I/O boards of any type for optimum flexibility
• Extends audio/video, IR, and RS-232 control signals over long distances via duplex fiber optic cables
• HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
• Consumer Electronics Control (CEC) support
• EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
• Hot-swappable fiber optic module and I/O boards for easy integration and maintenance

Package Contents
1x VM7584K2 4-port 10G optical input board
4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions

* VM7584K2 is designed to work with VE883TK2 video transmitter. The features are only available when used with VE883TK2.
