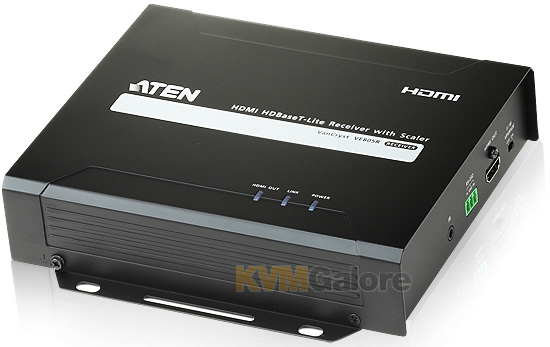

HDMI HDBaseT-Lite receiver with scaler

(HDBaseT Class B)

VE805R HDMI HDBaseT-Lite receiver with scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60m from your HDMI source device using a single CAT-5e/6a cable.

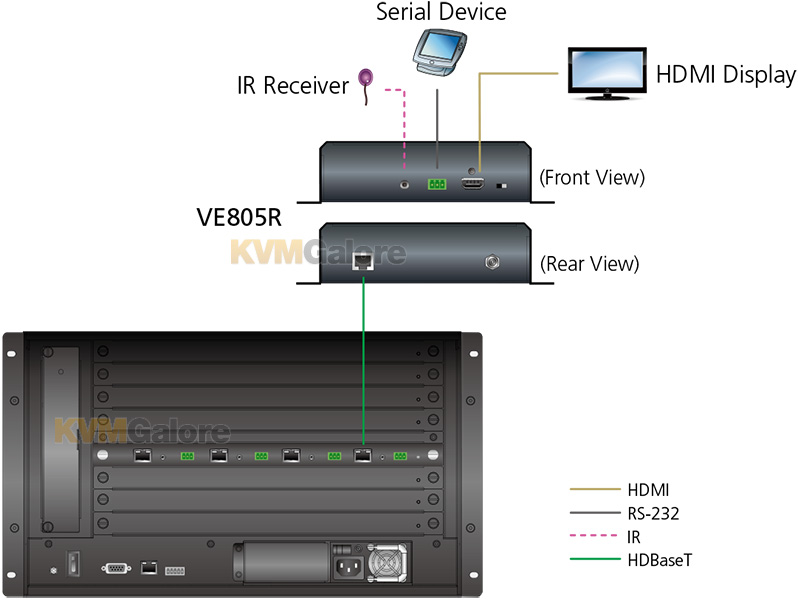

With a built-in scaler, VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT output board, it supports video wall integration and Seamless Switch™ functions.

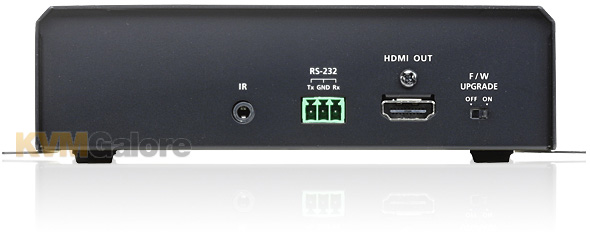

In addition, VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.

Features and Benefits

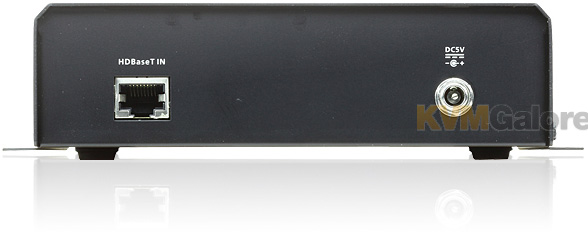

• HDBaseT Connectivity – extends the connection between HDBaseT outputs and an HDMI display over a long distance via single CAT-5e/6a cable
• HDBaseT Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology
• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
• Scaler – features a scaling function to integrate a video wall seamlessly with various output formats
• Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
• Video Wall – features configurable video wall profiles available for custom screen layouts via simple point-n-click web GUI*
• Bi-directional IR channel – IR transmission is processed one direction at a time**
• Rack-mountable

Package Contents
1x VE805R HDMI HDBaseT-Lite receiver with scaler
1x Power Adapter
1x IR Transmitter
1x IR Receiver
1x Terminal Block
1x User Instructions

* The Seamless Switch™ and video wall functions are available when the VE805R is used with the VM8514.
** Supports full frequency IR signals from 30KHz to 60KHz; however the IR receiver cable included with the package only supports 30KHz to 56 KHz.
