4-port USB 3.0 triple-display 4K DisplayPort KVMP switch

supporting HDMI monitors

• Superior video quality – 4096x2160 @ 60Hz and 3840x2160 @ 60Hz
• 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Hex-Display – connect a second CS1964 unit for two triple-display setup controlled by one operator
• Supports video DynaSync
• Computer selection via pushbuttons, hotkeys, mouse, and RS-232 commands

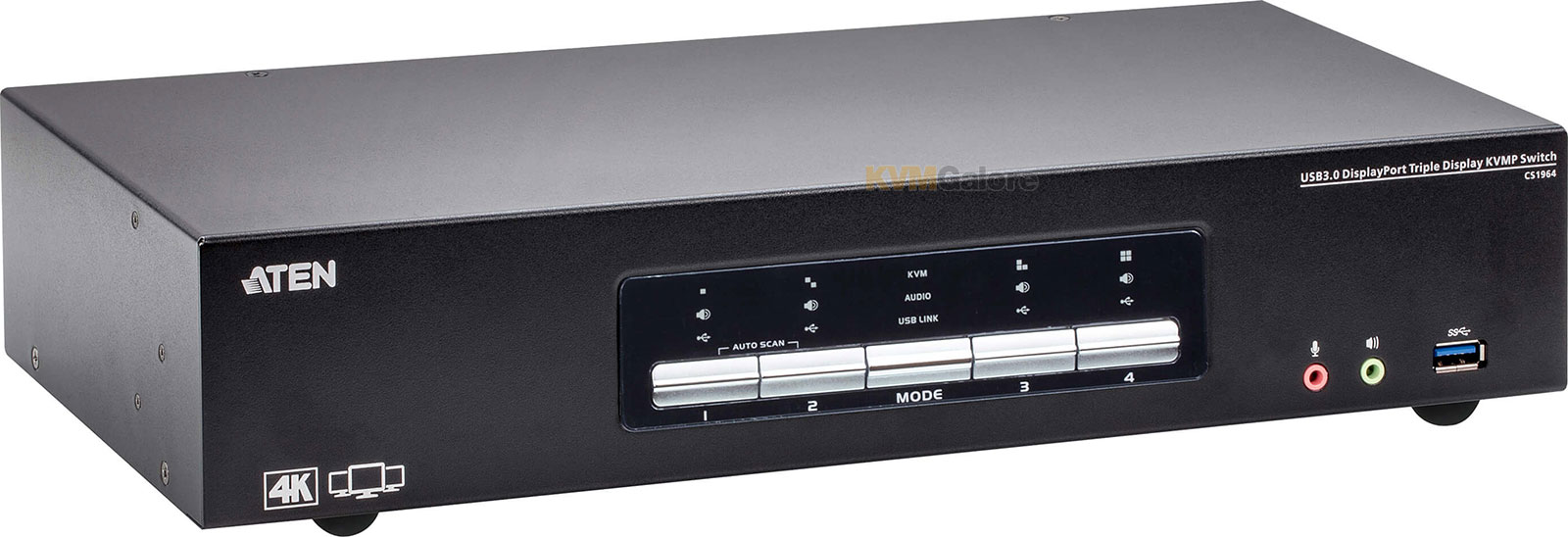

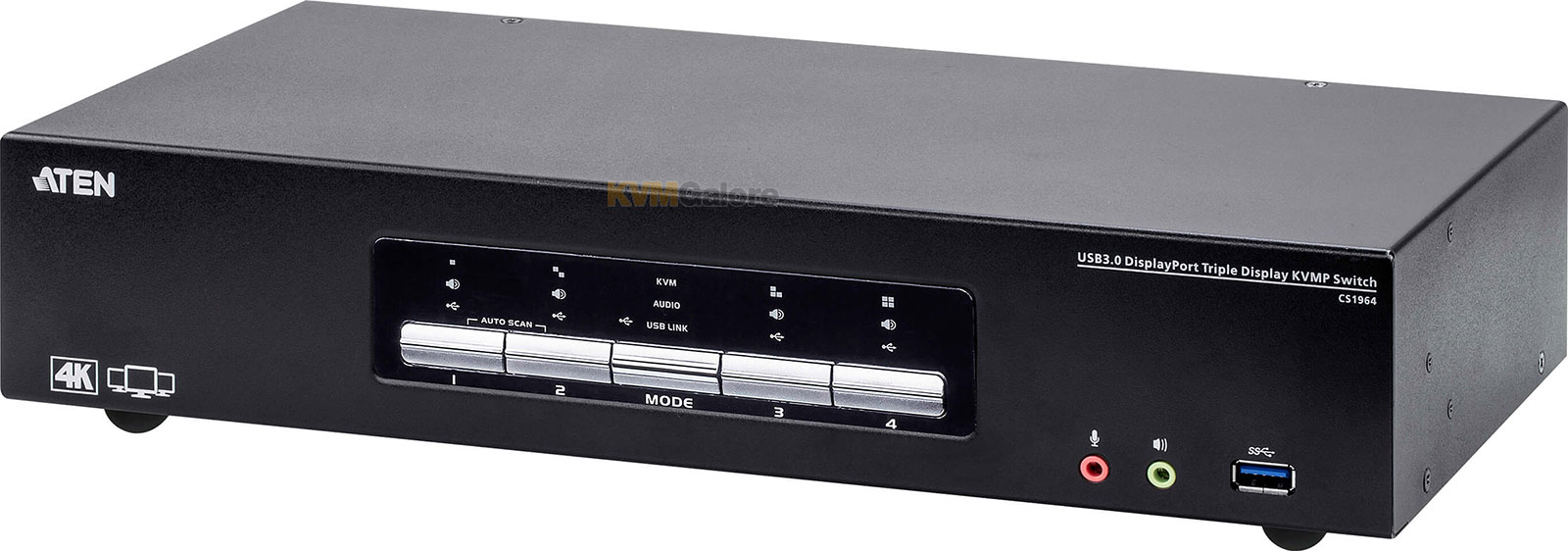

CS1964 4-port USB 3.0 4K DisplayPort triple-display KVMP™ switch combines triple-display KVM switch with DisplayPort video interface, 2-port USB 3.1 Gen 1 hub and 2.1 channel audio support for rich bass surround sound.

DisplayPort technology provides 4K Ultra-HD @ 60Hz and 4K DCI @ 60Hz resolution that displays the most vivid high-definition images available while pumping out premium sound for music, movies, and games.

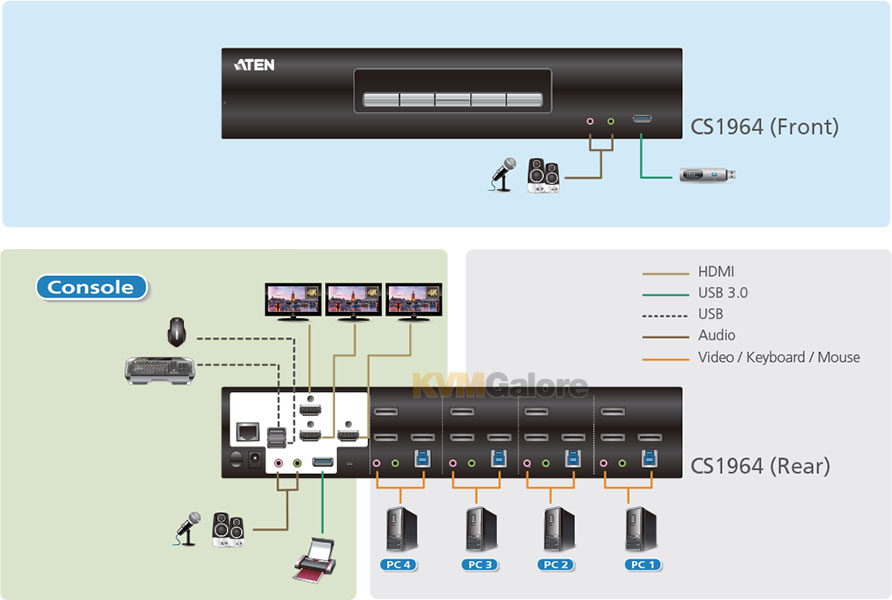

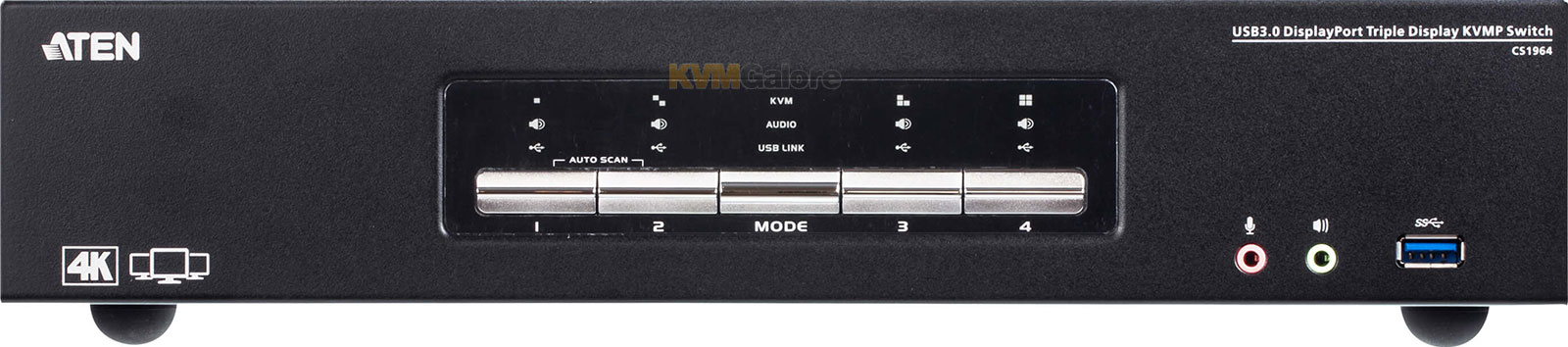

CS1964 allows users to access four DisplayPort computers from a single USB keyboard, USB mouse and three HDMI monitors. In addition to the front panel pushbuttons, Hotkeys, and the mouse port-switching functionality, CS1964 offers serial commands to help switch ports and configure device settings.

A Power On Detection feature also ensures that if one computer is powered off, CS1964 will automatically switch ports to the next powered-on computer.

With a built-in USB 3.1 Gen 1 hub, CS1964 provides SuperSpeed 5 Gbps transfer rates to all connected USB peripherals. The unit's independent (asynchronous) switching feature allows the KVM focus to be on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server, modem splitter, etc.

ATEN CS1964 optimizes your desktop organization to help you effortlessly manage a triple-display multimedia workstation. CS1964 provides instant, user-friendly access to four computers via a single USB keyboard, USB mouse and three HDMI monitors supporting resolutions up to 4K DCI (4096x2160 @ 60Hz). By daisy-chaining two CS1964 for six displays, you can multitask smoothly to increase productivity and improve workflow.

CS1964 is equipped with ATEN's patented DynaSync™ technology, which optimizes display resolution and speeds up switching between systems. CS1964 is also equipped with a built-in USB 3.1 Gen 1 hub for data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations with ease. It also features N-key Rollover, offering support for up to 15 simultaneous keystrokes without ghosting or jamming.

Featuring an unbeatable combination of ultra high 4K resolutions, a next generation USB 3.1 Gen 1 hub and enhanced, user-friendly operations, CS1964 delivers the latest innovations in desktop KVM switching technology.

Integrating all these advanced functionalities, CS1964 provides a unique advantage for users who need to operate multiple systems and perform multiple tasks across a triple-display extended desktop. CS1964 especially benefits those doing financial trading, CGI work, graphic design, control center, call center, video post production, gaming applications, and more.

Financial Trading
Increased digitization has transformed financial services and has had a profound effect on trading infrastructure. Workers in the financial services industry often hold the fiscal well-being of an individual or entire company at their fingertips. This makes multi-display setups essential to effectively manage and evaluate critical financial data. Or, in the breakneck pace of an environment like a trading room, information such as share prices and global commodity pricing needs to be rigorously monitored in real time, a task that a single screen setup now renders nearly impossible. Another vital challenge technology this industry faces is the maintaining of data security in an age where financial data is constantly under risk of external attacks.

CAD/CAM
Desktop KVM solutions are a highly effective way to optimize workflow in post-production and graphic design environments. In fact, CAD/CAM design was among the first work environments in which a multiple-screen display was implemented, due to the large amount of complex content that needed to be viewed at once to be manipulated effectively. In addition, work in these areas requires precise video clarity and large data transfer rates. In order to effectively manipulate a variety of content at one time, CAD/CAM and post production engineers require KVM switches that are compatible with the most up-to-date display standards as well, offer seamless control of multiple computers, and allow high-speed access to a wide range of peripherals.

Control Room/Call Center
Desktop KVM switches are used in fast-paced control room and call center scenarios where distances from information sources aren't long enough to require KVM extenders but multiple systems still need to be accessed from one console, allowing operators to efficiently and effectively monitor multiple information streams in order to make accurate mission-critical decisions. In these situations, such as air traffic control or emergency dispatch call centers, where detailed overviews of visual data from synchronized recording and replay systems are required so that reaction times are as fast as possible, it is also important that solutions offer maximum operator comfort while decreasing desktop clutter so that workflow remains smooth and unhindered.

Features and Benefits

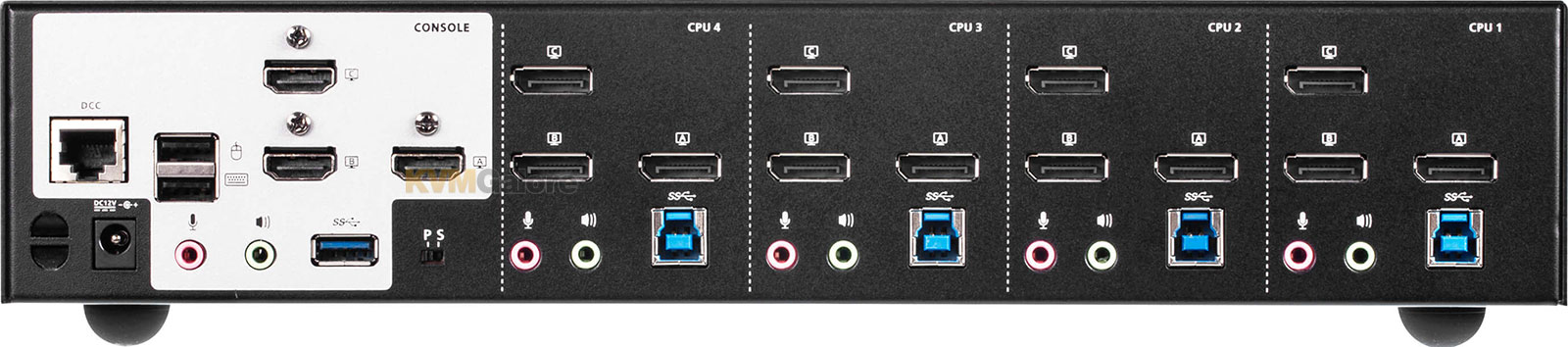

• One USB keyboard/mouse and three HDMI monitors control four DisplayPort computers
• Supports superior video quality – up to 4K DCI (4096x2160 @ 60Hz)
• HDCP compliant
• Computer selection via pushbuttons, hotkeys, mouse¹, and RS-232 commands²
• Supports N-key Rollover³ (NKRO) – permits collision-free keying
• Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
• Supports six displays by connecting two triple display KVM switches
• Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Supports console keyboard emulation/bypass feature
• Supports console mouse emulation/bypass feature
• Independent switching of KVM, USB peripheral, and audio focus⁴
• Supports HD audio⁴
• Firmware upgradable

Package Contents
1x CS1964 switch
6x DisplayPort 1.2 cables*
2x USB 3.0 cables*
4x Audio cables*
1x Power adapter
1x User instructions

Additional cables required (per port)
3x DisplayPort, male-male
1x USB 3.0 Type-A to Type-B, male-male
2x 3.5mm audio, male-male

Notes:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB9 cable. Please refer to CS1964 RS-232 Commands document.
3. N-key Rollover supports up to 15 simultaneous keystrokes.
4. HD audio through DisplayPort-HDMI cannot be switched independently.
* The included cable sets are for two computer port connection only. Optional cable sets (2L-7D02UDPX6) are available with a separate purchase for the remaining computer port connection.
