Multi-Screen DisplayPort KVMP Switches

2- and 4-port dual- or triple-display 4K DisplayPort KVMP switches

with USB 3.1 Gen 1 peripheral sharing, mouse and hot-key switching, Power On Detection and MST support

• Superior video quality: 4096x2160 @ 60Hz and 3840x2160 @ 60Hz
• 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Quad-Display: Easily connect two multi-screen DisplayPort KVMP switches units for a second dual-screen setup controlled through a single connection
• Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector **
• DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter

ATEN multi-screen DisplayPort KVMP switches help organize your desktop. Especially when managing a multimedia workstation at a large organization, multi-screen DisplayPort KVMP switches provide you with instant access to two computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors. multi-screen DisplayPort KVMP switches take a giant leap forward in KVM switch functionality by combining a dual display KVM switch with a DisplayPort video interface, 2-port USB 3.1 Gen 1 hub and 2.1 channel audio support for rich bass in surround sound.

DisplayPort technology provides a 4K Ultra-HD @ 60 Hz and 4K DCI @ 60Hz resolution that displays the most vivid high-definition images available while pumping out premium sound for music, movies, and games. Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096x2160 / 3840x2160 @ 60 Hz).

Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two DisplayPort systems.

In addition, featuring a built-in USB 3.1 Gen 1 hub, multi-screen DisplayPort KVMP switches deliver unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.

In addition to the front panel pushbuttons, Hotkeys, and the mouse port-switching functionality, multi-screen DisplayPort KVMP switches offer serial commands to help switch ports and configure device settings.

A Power On Detection feature also ensures that if one computer is powered off, multi-screen DisplayPort KVMP switches will automatically switch ports to the next powered computer.

With a built-in USB 3.1 Gen 1 hub, multi-screen DisplayPort KVMP switches provide SuperSpeed 5 Gbps transfer rates to all connected USB peripherals. The unit's independent (asynchronous) switching feature allows the KVM focus to be on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer such as a print server, modem splitter, etc.

Featuring an unbeatable combination of ultra high 4K resolutions, a next generation USB 3.1 Gen 1 hub and enhanced, user-friendly operations, multi-screen DisplayPort KVMP switches deliver the latest innovations in desktop KVM switching technology. Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, multi-screen DisplayPort KVMP switches are specifically designed for where multitasking is needed such as design, financial trading, and video post production.

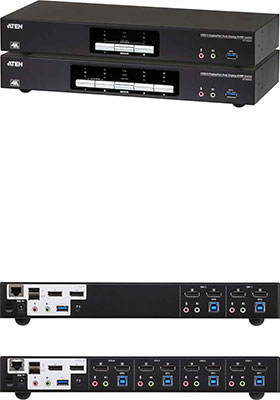

CS1942DP: 2 ports; dual-display; cables included

CS1944DP: 4 ports; dual-display; cables included

CS1964: 4 ports; triple-display; HDMI outputs; some cables included
