CAT-5 PS/2 console extender

with audio and serial support up to 1000 feet

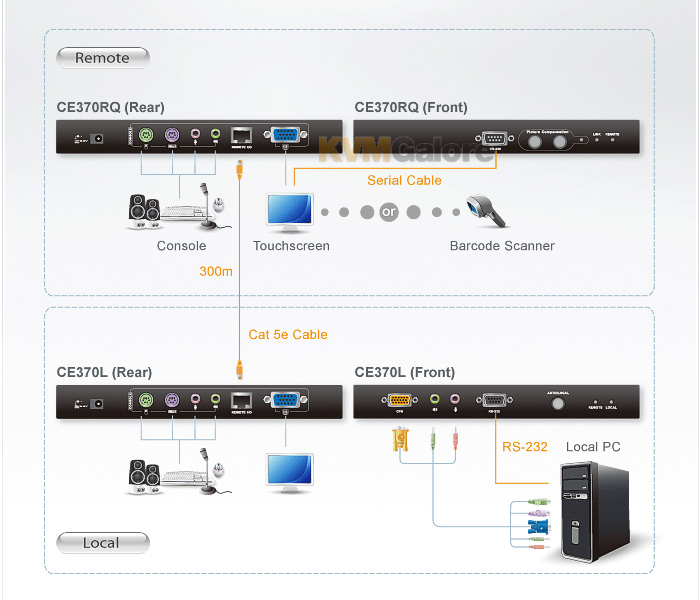

CE370 is a PS/2 based KVM Extender with automatic signal compensation and RS-232 serial functionality allowing access to a computer system from a remote PS/2 console, located up to 1000 feet away. This makes the CE370 the ideal solution for any type of installation where it is desirable to separate the work area from the actual computer, such as:
• Industrial - Keep the computer in a clean environmental area.
• Security - Deter physical access to the server.
• Doctor’s office - Allows doctors to access the same computer from two locations.
• Hospital – Reduce clutter at the nurse’s station by moving the computer to a remote location.

To ensure highest quality video, the CE370 employs deskew circuitry, which automatically compensates for different time delays in the RGB video signals inherent over long distances.

Features and Benefits
• Local and remote units connect at distances up to 1000 feet using CAT-5e cable
• Deskew Function automatically synchronizes the time delay of RGB signals to compensate for distance
• On Screen Display conveniently adjust video quality with the intuitive OSD menu system
• Manually tune the R/G/B settings and have the ability to save and restore them
• Adjustable gain control manually adjust signal strength to compensate for distance
• Dual console operation, control your system from either the local or remote consoles
• Built-in ASIC for greater reliability and compatibility
• Auto Signal Compensation (ASC) and storage of settings
• RS-232 serial ports – connect to a serial terminal, or serial devices such as touch screens and barcode scanners (Baud Rate 115200 bps)
• Audio enabled – supports stereo speakers and microphone
• Pushbutton operating mode selection (local unit only) – select between local and auto operating modes, with the press of a single button
• Built-in 8KV/15KV ESD protection (contact voltage 8KV; air voltage 15KV) and 2KV surge protection
• Video resolution 1920 x 1200 @ 60Hz (500 feet), 1280 x 1024 @ 60Hz (1000 feet)
• No loss in audio quality to 500 feet
• Supports wide screen formats and VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multi-sync monitors
• The local unit provides DDC; DDC2; DDC2B support to the computer
• Hot-pluggable
• Rack-mountable
• No software to install

Package Content
1x CE370 RQ [Remote Unit]
1x CE370 L [Local Unit]
1x Custom PS/2 KVM Cable
2x Power Adapters
1x Rack Mount Kit
2x Grounding Wires
1x User’s Manual
1x Quick Start Guide
