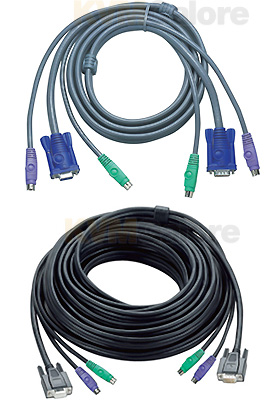

PS/2 & VGA KVM Cables

10-30- and 60-foot PS/2 & VGA KVM cables

with double shielding, low resistance and compliance with UL 2919 specifications

ATEN's custom made cables are designed to provide the highest signal capacity along with the lowest signal loss. What this means, to you as the consumer, is that you will receive the highest quality video output even in the higher SuperVGA video modes.

ATEN has invested millions of dollars into cable manufacturing to ensure the highest quality cables at the lowest possible cost. ATEN's cables are double shielded; beneath the PVC outer insulator you will find a copper braid RF shield, then beneath that you will find the mylar foil shield. Unlike ATEN's competitors, instead of spiral wrapping the mylar foil shield, ATEN takes a single piece and encloses the signal carrying wires in a one-piece envelope.

All ATEN's cables are manufactured with low resistance and low capacitance 24 AWG wires to ensure the best video performance. Another important difference between ATEN's cables and those of competitors is that ATEN uses coaxial wires to carry the red, green, and blue video signals. ATEN's competitors just throw the signal and its ground on two separate wires. By using coaxial wires ATEN reduces the possibilities of interference even farther.

ATEN's video cable is also built in compliance with standard UL 2919. The cables ATEN manufactures for ATEN mice and keyboards are also built to high quality requirements and are in compliance with the UL 2464 standard.
