2-port True 4K HDMI splitter

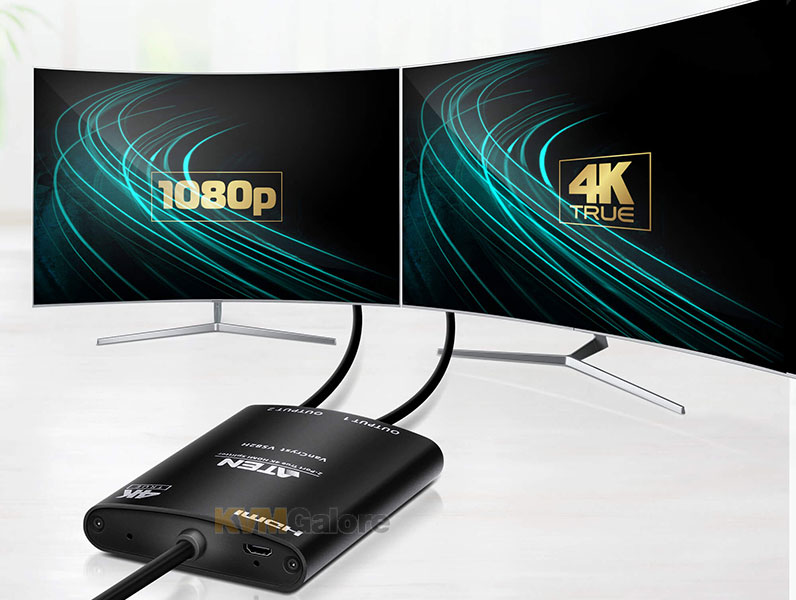

• Distributes one True 4K source to two HDMI displays at the same time
• Automatic downscaling function – automatically adjusts the resolution to 1080p for 1080p displays to fit their optimal output
• HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
• Quality and durable aluminum metal enclosure

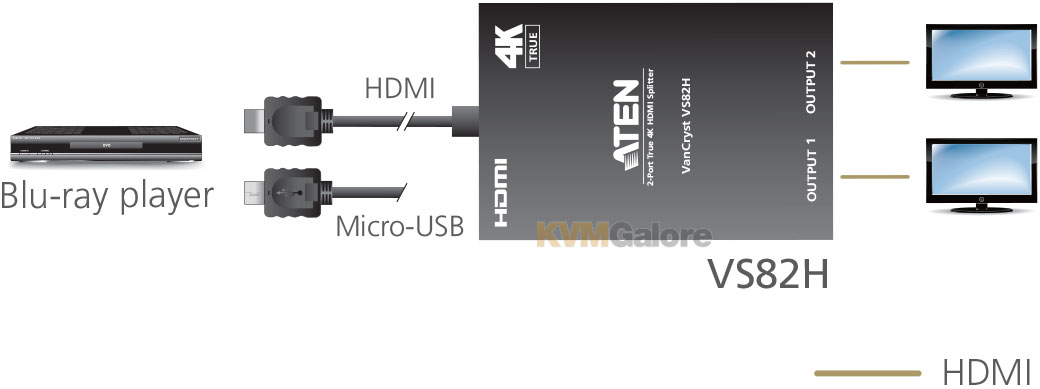

ATEN VS82H splitter offers you superior video resolution of True 4K and lossless quality when sending one source of digital high-definition video to two displays. It supports HDMI-enabled equipments from DVD players, satellite set-top boxes to all HDMI displays.
Aside from being HDCP 2.2 compliant, VS82H comes with automatic EDID detection that always presents users with the best resolution across different screens.
Along with support for Dolby TrueHD and DTS-HD Master 7.1 audio channel, VS82H ensures you distortionless and outstanding audio quality.
What's more, VS82H is a bus-powered splitter that can be charged directly from a device connected through Micro-USB port.
Integrating the above functionalities provides you an effective solution for personal, corporate, educational and commercial applications.
Features and Benefits
• True 4K video resolution (up to 4096x2160 @ 60 Hz; 4:4:4); HDR supported
• Supports max. data rate up to 18 Gbps (6 Gbps Per Lane)
• Supports Dolby TrueHD and DTS-HD Master 7.1 audio channel
• Automatic EDID detection – enjoy high-quality display and use of the best resolution across different screens
Package Contents
1x VS82H (w/ input-cable included)
1x Micro-USB to USB cable (19.7 in.)
1x User Instructions
Output cables are not included
Required Cables (per port)
1x HDMI, male-male
