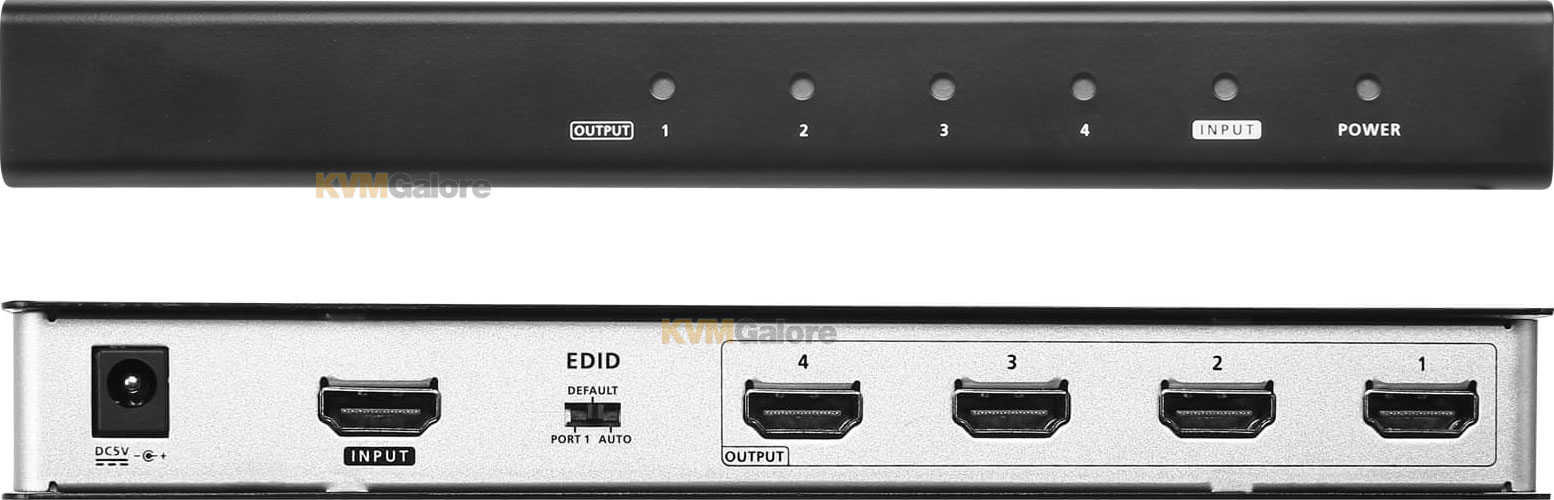

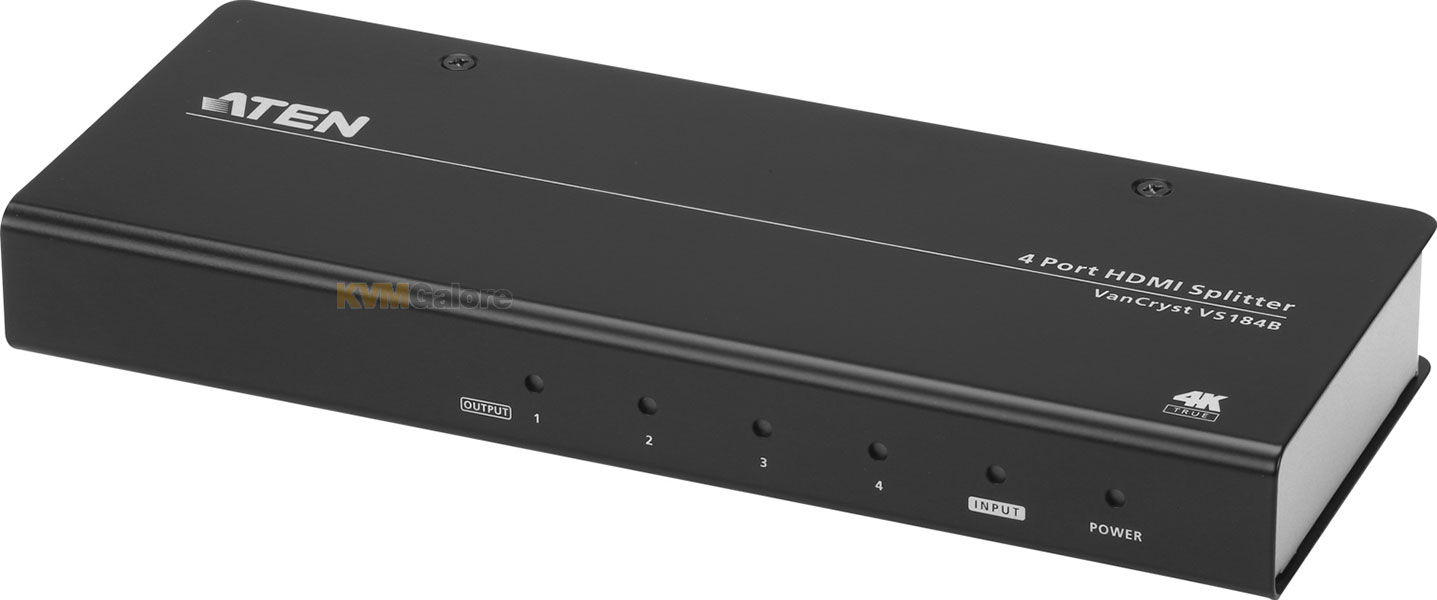

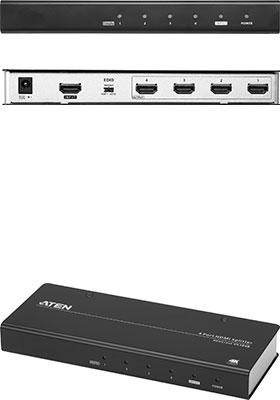

4-port True 4K HDMI splitter
• Connects one HDMI source to four HDMI displays at the same time
• HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
• Max pixel clock rate up to 600 MHz
• Long distance transmission - up to 50 feet @ 1920x1200 / 6 feet @ True 4K
VS184B True 4K HDMI splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment such as DVD players, satellite set-top boxes and all HDMI monitors, displays, projectors, or TVs.
VS184B True 4K HDMI splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Features and Benefits
• Supports HDR
• Supports max resolutions of up to 4096x2160 / 3840x2160 @ 60Hz (4:4:4)
• Max data rate up to 18 Gbps (6 Gbps per lane)
• LED indication of power status and source devices
• EDID Expert™ - Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
• Plug-and-play - No software installation required
Package Contents
1x VS184B
1x Power adapter
1x HDMI cable
1x User instructions
