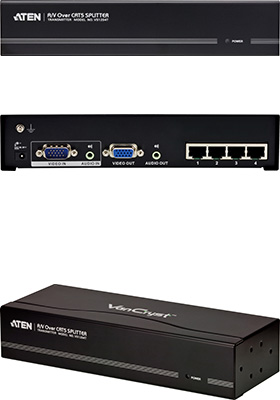

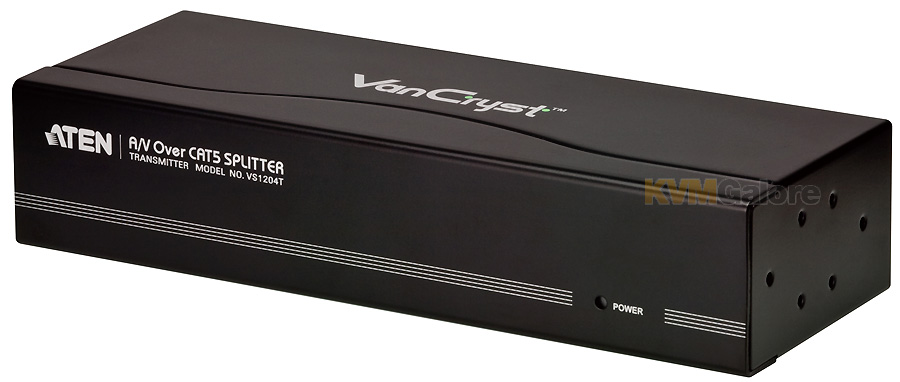

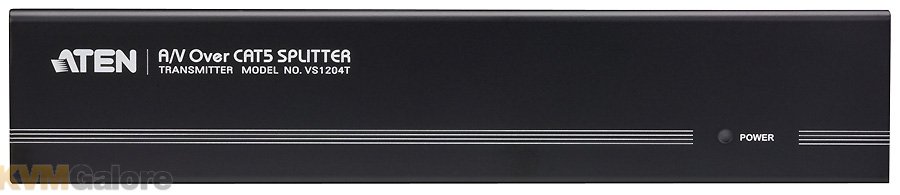

4-port VGA video/audio over CAT-5 splitter - transmitter

VS1204T A/V over CAT-5 splitter is a cost-effective and efficient solution for sending high quality audio and video content to multiple displays.

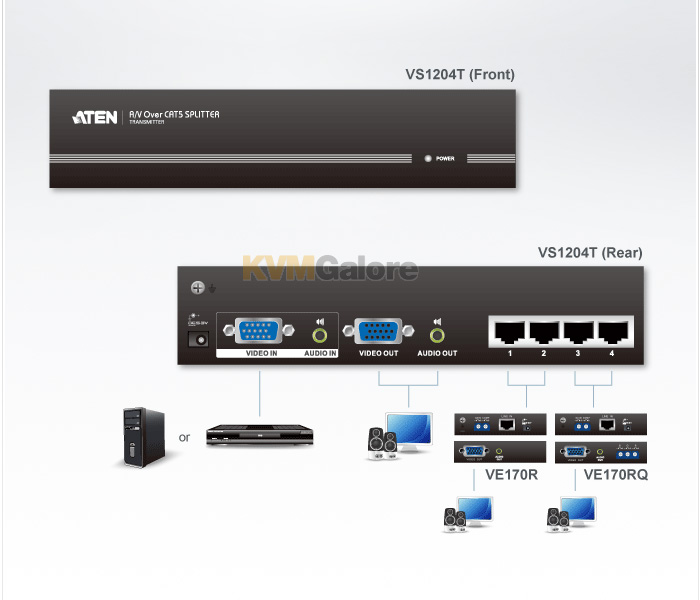

Connect to an ATEN A/V over CAT-5 receiver (purchased separately - see listing below) via CAT-5e cable and the displays can be located up to 1000 feet (300 m) away from the single input source.

VS1204T A/V over CAT-5 splitter is ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations.

Features and Benefits

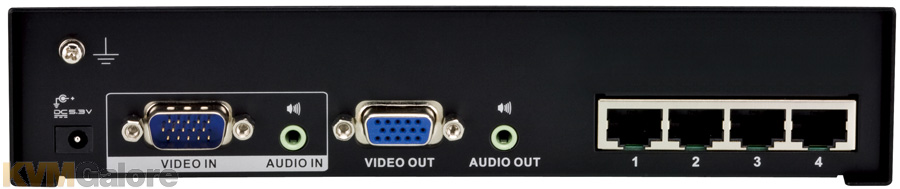

• One audio/video input to 4 audio/video outputs via CAT-5e cable
• Supports local display + 4 remote displays
• Supports up to 225 MHz bandwidth
• Uses CAT-5e cable to extend displays up to 1000 feet
• Superior video quality – up to 1920x1200 @ 60Hz
• Audio enabled (mono)
• Built-in 8KV/15KV ESD protection
• Rack-mountable

Package Content
1x VS1204T A/V over CAT-5 Splitter
1x Power Adapter
1x Rack Mount Kit
1x Foot Pad Set (4 pcs)
1x Grounding Wire
1x User Guide
