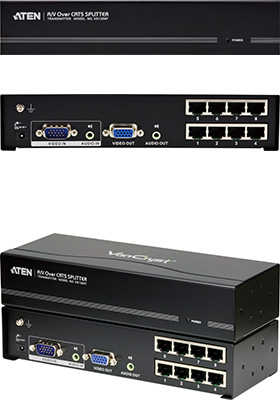

![VS1208T VS1208T](images/VS1208T_P.jpg)

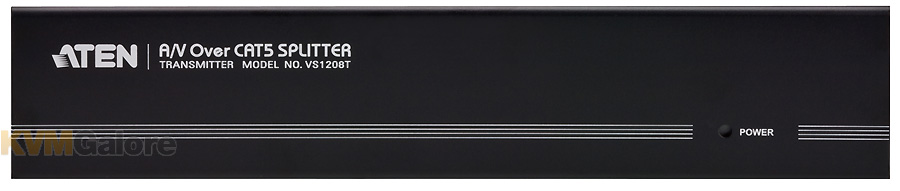

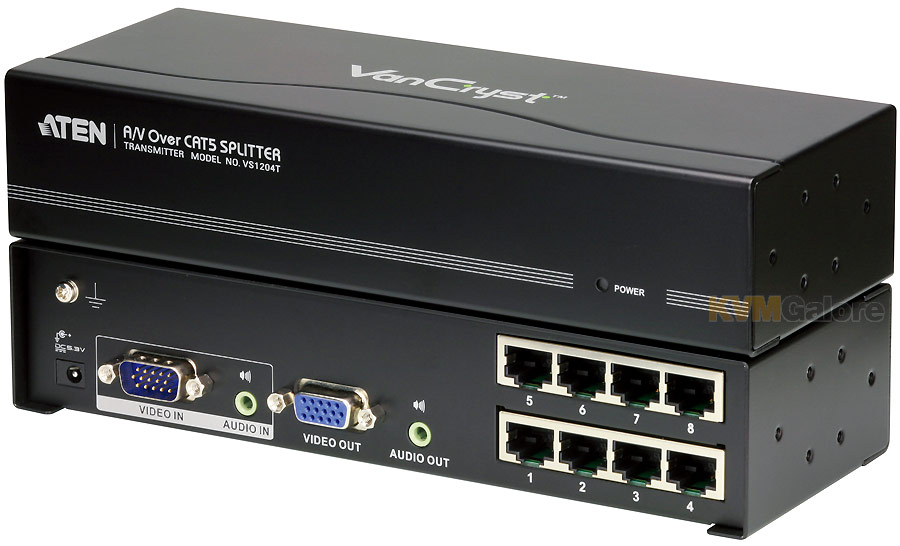

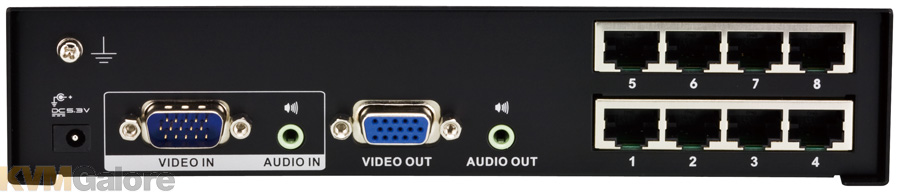

8-port VGA video/audio over CAT-5 splitter - transmitter
Note: Receiver units are purchased separately
VS1208T A/V over CAT-5 Splitter is a cost-effective and efficient solution for sending high quality audio and video content to multiple displays.

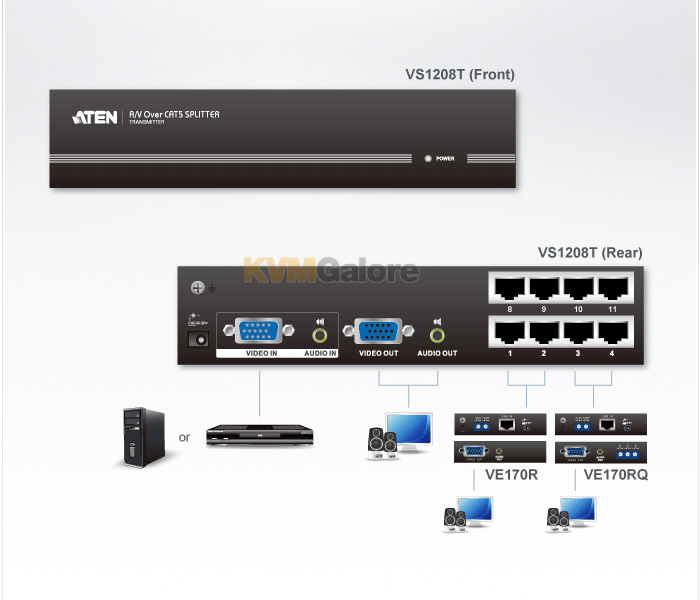

Connect to an ATEN A/V over CAT-5 receiver* via CAT-5e cable and the displays can be located up to 300 m (1000 feet) away from the single input source.
VS1208T A/V Over CAT-5 Splitter is ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations.
Features and Benefits
• One audio/video input to 8 audio/video outputs via CAT-5e cable
• Supports local display + 8 remote displays
• Supports up to 225 MHz bandwidth
• Uses CAT-5e cable to extend displays up to 1000 feet
• Superior video quality – up to 1920x1200 @ 60Hz
• Audio enabled (mono)
• Built-in 8KV/15KV ESD protection
• Rack-mountable
Package Content
1x VS1208T A/V over CAT-5 Splitter
1x Power Adapter
1x Rack Mount Kit
1x Foot Pad Set (4 pcs)
1x Grounding Wire
1x User Guide
* Compatible Receiver Units (see listing below)
• VE022R A/V over CAT-5 Receiver (500 feet)
• VE170R A/V over CAT-5 Receiver
• VE170RQ A/V over CAT-5 Receiver with Deskew
