8-port VGA video switch with auto-switching and audio

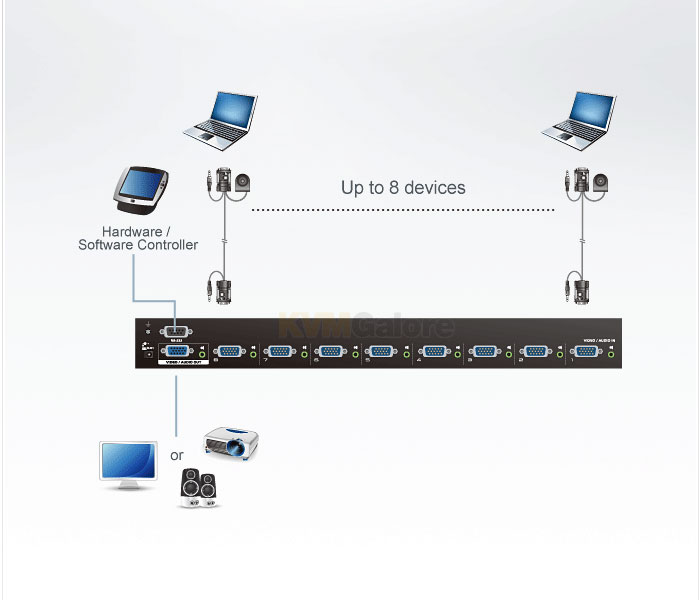

VS0801A 8-Port VGA switch with auto switching, connecting eight audio/video source notebooks to a single monitor or projector with full audio, will enable you to quickly switch between the devices for any presentation occasions where multiple audio/video playing are simultaneously required, such as meeting room, media centers, class rooms etc.
VS0801A built-in bi-directional RS-232 serial port for highend system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0801A to be controlled by secondary systems with advanced functions such as: Power on Detection, auto switching and pushbutton lock.
The IR Remote control, convenient front panel pushbuttons, and new port switching VGA cable* allow you to quickly and easily toggle between VGA/audio sources, while the front panel LEDs indicate the source device at a glance.
RS-232 Control
• Power On Detection – if one VGA source is powered off, the VS0401 will automatically switch to the next powered-on source
• Auto Switching – sets the priority for auto switching to a connected port
• Pushbutton Lock – locks use of the front panel pushbuttons
Features and Benefits
• Display the video output of up to eight computers on a single VGA display
• Quick and easy switching between VGA/audio sources via front panel pushbuttons, RS-232 commands, IR remote control, or Port Switching cable*
• Supports stereo audio
• Built-in bi-directional RS-232 serial port for high-end system control
• Supports up to 300MHz bandwidth for optimal video quality
• Superior video quality – up to 2048x1536 @ 60Hz
• Long distance transmission – up to 210 feet (65m)
• Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors
• Video Dyna Sync™ – Exclusive ATEN technology eliminates bootup display problem and optimizes resolution when switching between ports
• Supports Dynamic DDC to monitor and receive updated EDID information from displays
Package Content
1x VS0801A
1x IR Remote Control
1x Power Adapter
1x Mounting Kit
1x User Manual
* Note: The Port Switching VGA cable does not come with the package and must be purchased separately.
