VGA video + audio CAT-5 receiver (up to 492 feet) over CAT-5
with cascade (1280x1024 @ 150m)
Note: Transmitter units are purchased separately

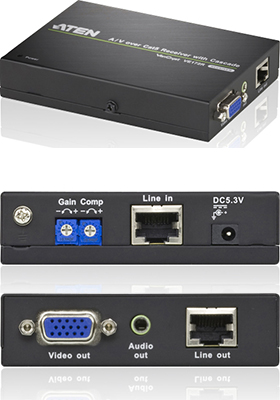

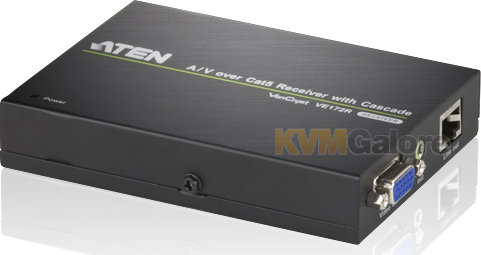

VE172R CAT-5 VGA/audio receiver is a compact, convenient, and ecenomical way to extend your VGA/audio signal.
VE172R allows you to increase the distance between your VGA/audio destination and source up to 492 feet using only one CAT-5e or CAT-6 cable.

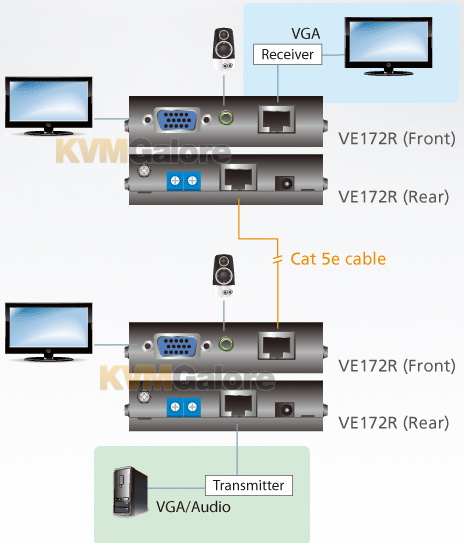

VE172R can cascade up to 10 levels.
Features and Benefits
• Uses CAT-5e cable to connect the transmitter and receiver uints
• Cascadable up to 10 levels
• Long distance transmission up to 492 feet (150m)
• Superior video quality - 1920x1200 @ 60Hz (30m); 1600x1200 @ 60Hz (100m); 1280x1024 @ 60Hz (150m)
• Audio enabled (mono)

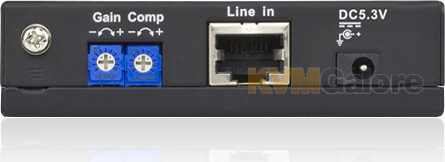

• Adjustable gain/compensation control - manually adjusts signal strength to compensate for distance
• Built-in 8KV/15KV ESD protection
• Rack-mountable
• Complies with VESA FDMI mount standard
Package Content
1x VE172R A/V Over CAT-5 Receiver with Cascade
1x Power Adapter
1x Mounting Kit
1x User Instructions
