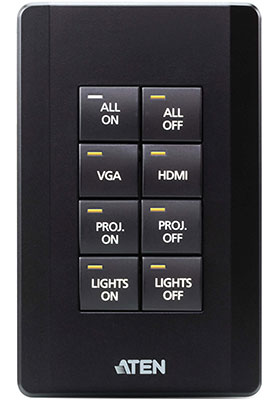

8-button black keypad

for ATEN control system (single-gang, US)

• Key pad - provides physical connection to the ATEN control system
• Fully customizable with 14 layout combinations of 4 to 8 buttons; customized button engraving service
• Easy ID pairing with control box for Ethernet communication
• Up to 8 keypads connect to a single control box for future scalability

VK108US1 is a fully-customizable 8-button keypad designed for use with the ATEN control system. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate.

Created with flexibility in mind, the one-gang keypad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego's. By connecting to the VK2100/VK1100 control box over a LAN, users will find it's effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the button's ready to go, you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. VK108US1 is an affordable solution, perfect to serve as the primary interface in small meeting rooms, or as secondary device control in classrooms and conference centers.

Fully Customizable with Ease

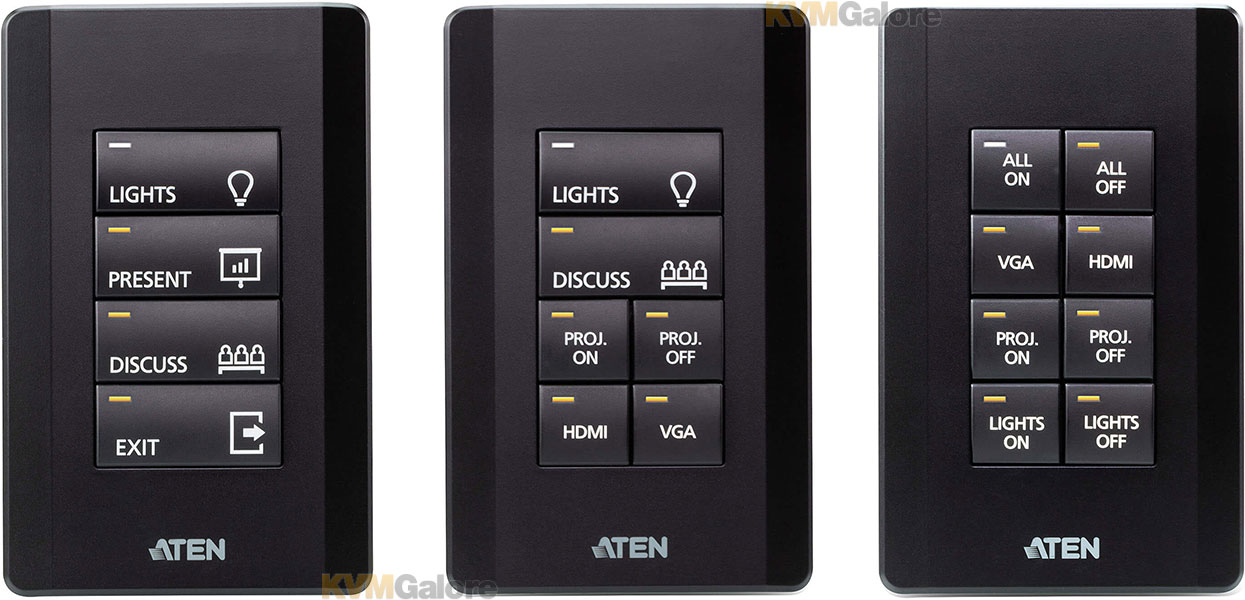

VK108US1's customizability allows system integrators to fulfill diverse applications with ease. The hardware supports two button sizes that can form 14 layout combinations of 4 to 8 buttons, while VK6000 software provides versatile modes for each button: normal, toggle, press and release, and long press. The keypad mode and status can be synchronized with other keypads on the same network. Furthermore, the swappable buttons allow the keypad layout to be changed even when it's online and mounted to the wall. This superior flexibility facilitates system integrators who need to quickly answer to customer requirements and changes that are demanded.

Single Cable Installation
VK108US1's LAN port supports power over Ethernet (PoE) that allows both data and electric power to be transmitted over one single Ethernet cable, eliminating the need of an extra power source and extra wiring. For applications that require a direct electrical supply, VK108US1 can also be powered via a 5 VDC power adapter.

IP-free Configuration
Ethernet-based solutions normally involve configuring complicated IP and network settings before you can access a device. With our ID concept implemented into ATEN products, all IP and network settings are auto-configured for VK108US1 and other ATEN control box peripherals (sold separately). Simply pair the ID number of the keypad with the ID number of the control box and the network setting is completed!

Features and Benefits
• System LED indicators for quick connection status check
• Dual-color button LEDs for clear indication and visibility in dark environments
• Unrestricted modes support flexible behavior settings for each button
• Intuitive web GUI for easy keypad configuration
• Dual power supply – DC 5V or power over Ethernet (PoE)
• Customized button engraving service

Package Contents
1x VK108US1 Keypad
1x Button Pack
1x Terminal Block
1x Faceplate
1x User Instructions
