29271: Extend HDMI and serial RS-232 signals up to 300 feet

@1080p with no signal degradation

Note: Receiver units are purchased separately

The HDMI + serial RS-232 over CAT-5 allows HDMI audio/video and serial RS-232 signals to be extended over a single CAT-5/5e/6 unshielded twisted pair cable up to 300 feet at a 1080p resolution. This solution is compatible with any operating system and is truly plug and play with no drivers or software required.

This solution utilizes TruChoice™ power, which allows power to be supplied over the CAT-5 cable to both the transmitter and receiver from a single power adapter placed at either the transmitter or the receiver end of the solution.

HDBaseT technology supports HDCP and allows the Extended Display Identification Data (EDID) signals, i.e. communication of the display's capabilities, to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display.

Built-in power surge protection and high ground loop immunity ensure high performance signal extension.

The DB9 serial RS-232 port supports full-duplex data communication at 230Kbps and is fully compatible with all RS-232 protocols. Point-to-point or multi-drop data communication is supported.

HDMI Features Supported
• 3D
• Deep Color
• Dolby and DTS 7.1 Audio
• Consumer Electronics Control (CEC)

Features and Benefits
• Extend HDMI and serial RS-232 up to 300 feet at a 1080p resolution
• Utilizes a single category cable for extension
• HDBaseT technology supports EDID pass through
• TruChoice Power allows for power at transmitter or receiver end
• Kit includes both the transmitter and receiver units
• Warranty: 3 Years

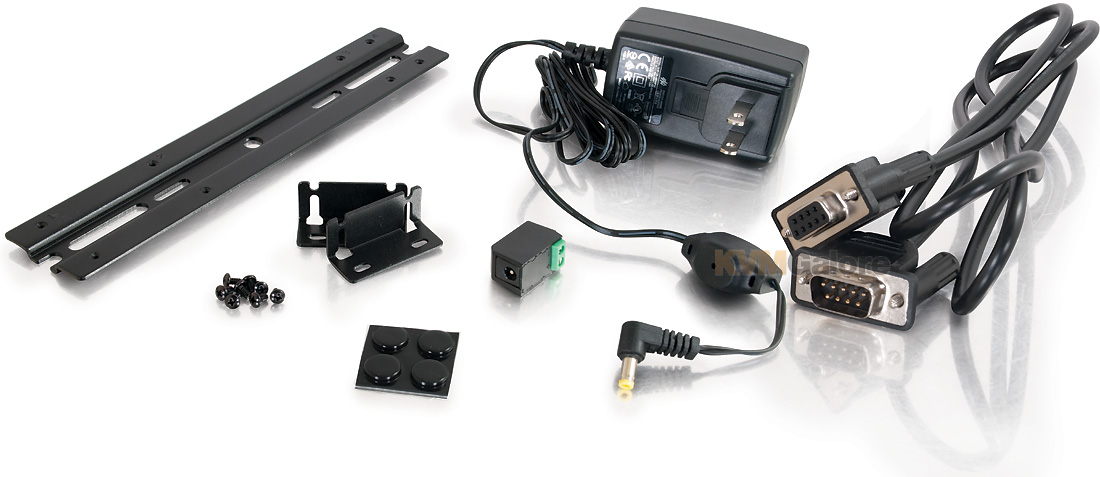

Package  Contents

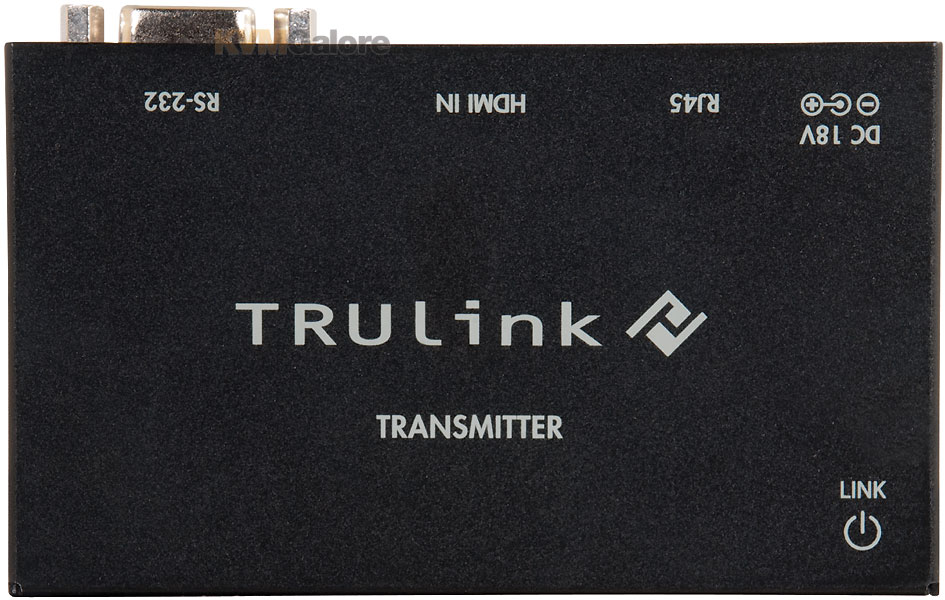

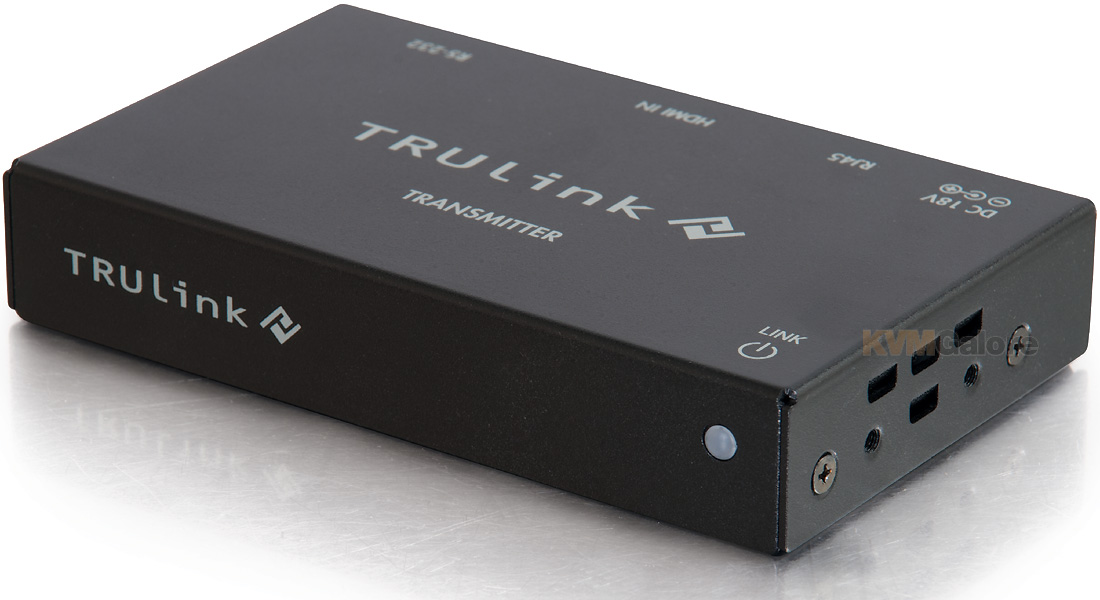

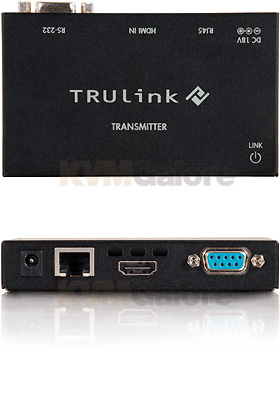

• Transmitter Unit
• Terminal Block to DC Jack Adapter
• Power Adapter
• Mounting Bracket Pack with Screws
• Rubber Feet Pack
• User Manual

Note: Stranded CAT-5e/6 cables may be used for HDMI extension applications up to 250 feet. Shielded, solid conductor CAT-5e/6 cabling is recommended for applications where the CAT-5e/6 cable must be coiled, is run near other high-frequency signaling cables or in high EMI/RFI environments. For best performance use a CAT-6 solid shielded patch cable.
