29345: Extend a USB signal up to 150 feet over CAT-5

use this receiver with a transmitter (items #29344, #29348, or #29349) as a complete solution

Note: Transmitter units are purchased separately

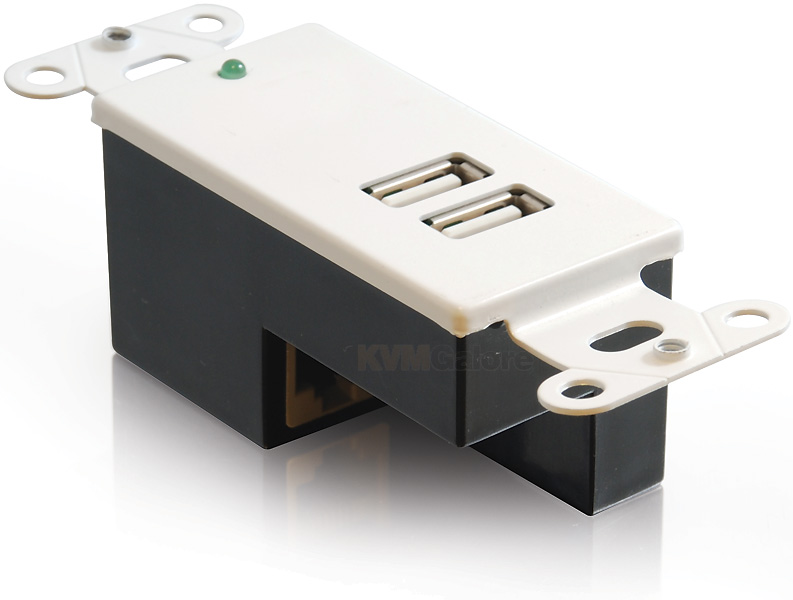

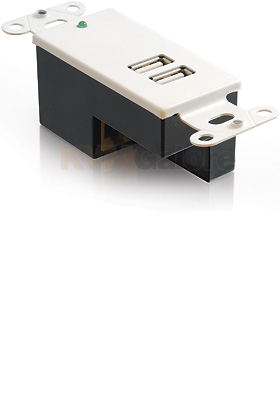

One component of a complete solution that, when paired with a transmitter (sold separately), conquers USB length limits. This solution extends the signal of a USB device to a host computer up to 150 feet, enabling you to place your USB projector, interactive whiteboard, camera, printer, web cam, hub or other USB device exactly where you want it! Our USB superbooster wall plate is powerful yet simple, with no drivers to install or special software required. It's also compatible with any computer that supports USB.

The overall plug-and-play solution consists of this wall plate receiver, and your choice of a compatible transmitter that is sold separately: the Decora®-compatible wall plate (#29344), the dongle (#29348) or the keystone insert (#29349). Customize the configuration to your specific needs! This versatility is ideal for applications where you need flexibility at your computer/source side.

The complete solution is connected via a standard CAT-5, CAT-5e, or CAT-6 UTP cable (not included) that provides easy in-wall installation. This delivers a clean, finished look important for homes, classrooms, offices and anywhere you don't want visible cables lying around.

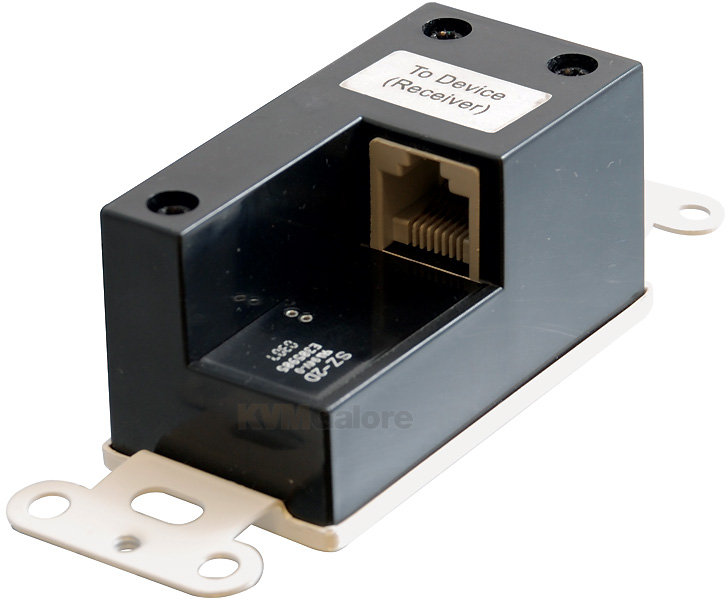

Use pre-terminated network cables, or pull unterminated cable and use the included toolless IDC RJ45 connector to terminate your own cable.

Because the USB superbooster wall plate is bus-powered, no external power source is required. The power demands of devices such as electronic whiteboards, external drives and USB hubs, may require the use of external power for proper operation. Please consult with your device manual or manufacturer for details.

Compatible with Leviton Decora^® brand cover plates, this single gang wall plate fits a standard J-box.

Features and Benefits
• Extends the functional distance of a USB signal, allowing a USB device to work with a USB-enabled computer up to 150 feet away
• Ideal for use with USB projectors, interactive whiteboards, cameras, printers, web cams, hubs, and other USB devices
• One part of a total solution (transmitter is purchased separately) that gives you the flexibility to customize the configuration to your specific needsTransmitter options include either a wall plate solution (part #29344) or a dongle solution (part #29348)
• Fits a standard J-box
• Compatible with Leviton Decora^® brand cover plates
• Bus-powered so no external power source is required
• Connects via a standard CAT-5/5e/6 patch cord (not included) for easy installation and flexibility
• Included tool-less IDC RJ45 connector allows you to terminate your own cable
• Compliant with USB specification 1.1
• Warranty: 1 Year

Contents
• One 2-port USB superbooster wall plate receiver
• One RJ45 toolless IDC connector
• Two #6x32 slotted/Phillips screws
• User Guide

Note: Decora® is a registered trademark of Leviton Manufacturing Company, Inc. This product is not manufactured or endorsed by the Leviton Manufacturing Company, Inc.
