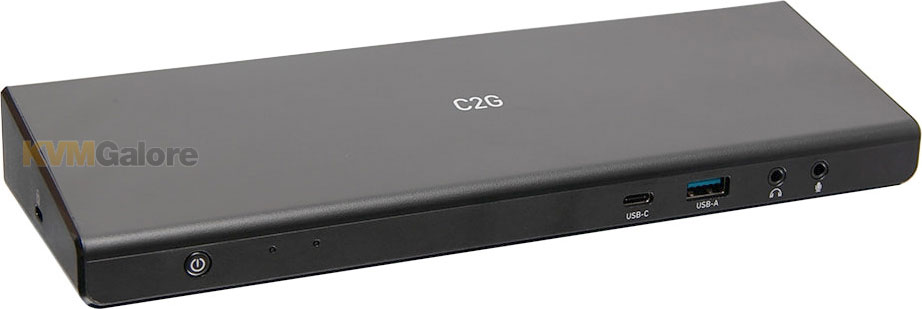

C2G54535: Connect a USB-C/Thunderbolt™ 3 enabled device for video mirroring and data transfer

with HDMI^®, DisplayPort™, Ethernet, USB, 3.5mm audio and Power Delivery up to 85W - 4K 30Hz (TAA compliant)

• USB Type-C docking port
• 135W USB-C power supply to support connected displays and devices
• Up to 85W of power delivery to keep your laptop charged
• Triple 4K display extension
• Supports 5K, when connected to a DisplayPort display
• USB Type-A and USB Type-C ports for fast data transferring
• BC 1.2 USB Type-A port for enhanced mobile charging
• Hard wired Ethernet port for when security requires it or when WiFi™ is not available
• Reversible, symmetrical USB Type-C connector, so no guessing how to plug it into your laptop
• Includes DisplayLink graphics transport technology, for crisp text and graphics with very low latency
• Compatible with Windows and Mac operating systems
• TAA compliant

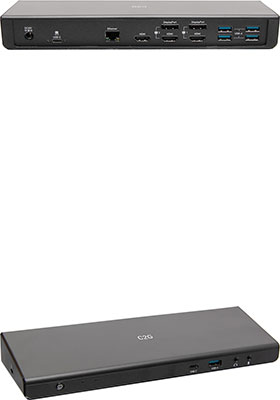

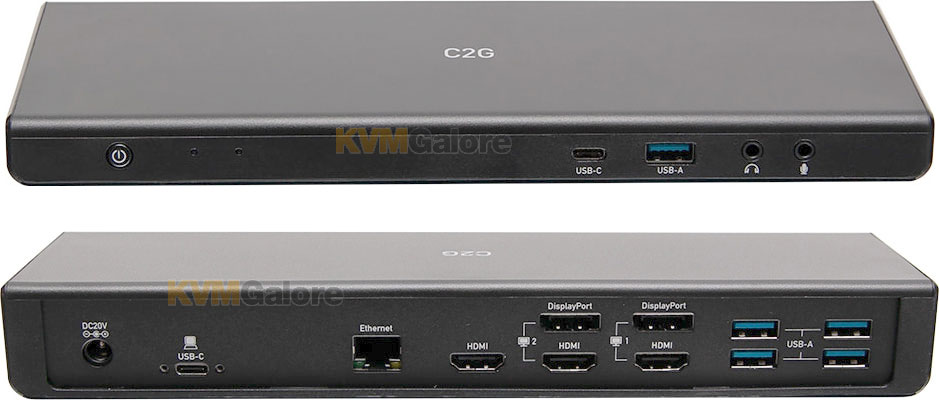

Expansion Ports
3x HDMI (video)
2x DisplayPort (video)
1x USB Type-C (10Gbps data)
4x USB Type-A (5Gbps data)
1x Front USB Type-A (5Gbps data and BC 1.2 for enhanced mobile device charging)
1x Gigabit Ethernet
1x Headphone
1x Microphone

The USB-C 12-in-1 triple display docking station with HDMI, DisplayPort, Ethernet, USB, 3.5mm audio and Power Delivery connects to USB-C or Thunderbolt™ 3 enabled laptops and is perfect for contributing to a desktop solution ― making it ideal for inside reps that have extra connectivity demands while in the office or when working from home.

This USB-C triple display docking station supports connected devices, such as keyboards, mice, portable hard drives, and other peripherals, all while supporting up to 85W of power delivery to charge and power a laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. This docking station includes a 135W power supply.

This USB-C triple display docking station is equipped with three video display outputs, simultaneously splitting content to three displays while connected to a single source with a USB Type-C output. This dock is perfect for a triple display desk setup — improving multitasking and productivity.

Connect up to three displays, supporting resolutions up to 4K (3840x2160) at 30Hz.
Connect two displays, supporting resolutions up to 4K (4096x2160) at 60Hz, or
Connect to a single DisplayPort display and support resolutions up to 5K (5120x2880) at 60Hz.

The USB Type-A ports support 5Gbps data transfers, allowing a full HD movie to be downloaded in under a minute.
The USB Type-C port supports 10Gbps, allowing for twice the amount of data in the same amount of time as the USB Type-A ports.
