![2XPRA200-103D20TL5 2XPRA200-103D20TL5](images/2XPRA200-103D20TL5_P.jpg)

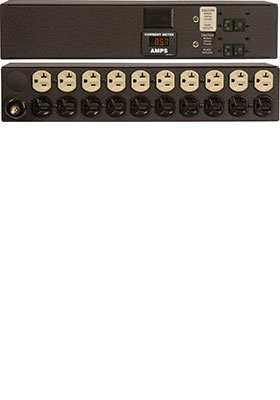

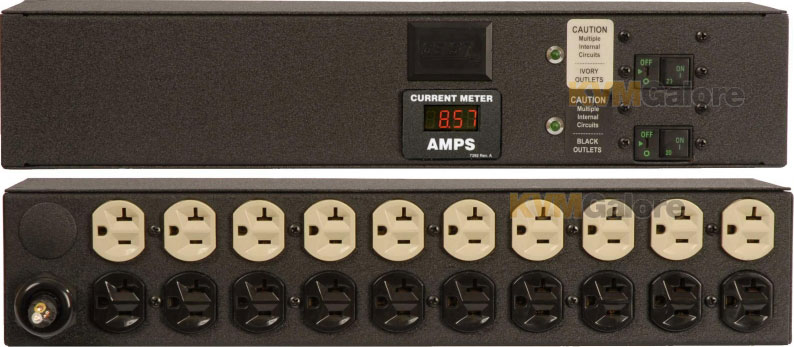

12013: Metered, standard PDU, 30A, 120V, rack-mount, 20x rear NEMA 5-20R receptacles
breakered w/ on/off switch, 10-foot cord with twist-lock NEMA L5-30P plug, local current monitoring, black powder coat finish
Improve reliability, energy efficiency, and prevent crippling downtime caused by overloads using Geist's metered PDU. Equipped with a local digital display, this metered PDU provides power consumption metrics instantly, ideal for when deploying or moving critical server equipment.
Without built-in surge protection, 2XPRA200-103D20TL5 is equipped with a local digital current meter that provides real-time local load monitoring and helps to avoid potential overloads.
This metered PDU is ideal for installations in facilities with proper surge protection at the main electrical service entrance.
Monitoring: Current; local; aggregate - total unit monitoring; digital RMS current meter +/- 2% accuracy with full scale 60Hz sine wave input.
Plug | Receptacles | |
![]() | ![]() | |
Twist-lock NEMA L5-30P | 20x rear NEMA 5-20R |
• Local display
• Horizontal, 19" rack-mount form factor, 2U
• Volts: 120V
• Amps: 30A
• kW-input: 2.8kW
• Cord length: 10 feet
• Circuit breaker: Yes
• On/off switch: Yes
