Control up to 16 USB/VGA Computers with One USB Keyboard, USB Mouse and VGA Monitor.

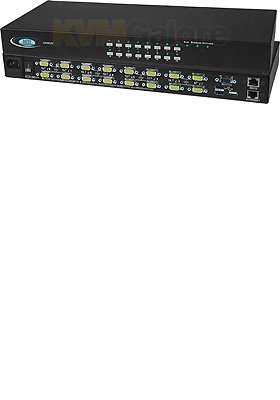

The UNIMUX™ High Density VGA USB KVM switch allows a user to control up to 16 USB computers with one USB keyboard, USB mouse and VGA monitor.

Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.

Front Panel Interface Control
• Touch a button and be connected to a computer or change modes of operation.
• LEDs indicate currently selected port and mode of operation.

RS232 Control
• Female RJ45 connector.
• Baud rate 1200 to 115200.
• Address up to 15 units, all of which can be daisy-chained and controlled by one serial port.

RS232 Control Commands
• CS - connects output with specific input.
• RO - reads what input is connected to output.
• RU - reads size of switch.

Ethernet Control
• Female RJ45 connector.
• 10/100 BaseT Ethernet interface.
• Supported protocol: Telnet.
• Control can be done over Telnet.

Telnet Control
• Commands are similar to RS232 commands.
• The telnet server listens on port 2005 (configurable).
• Port 2005 is intended for a software control type session.

Keyboard Control
• Scan, Broadcast, or Command Modes are available from the keyboard.
• Use the keyboard to command the switch box to select ports or configure the SCAN delay.

On Screen Display (OSD)
• Select computers by name with the On Screen Display (OSD).
• Use keyboard or mouse to operate the switch from menus superimposed onto the monitor.
• Shows names of computers on cascaded switches up to 1024 ports.
• Names can be up to 12 characters long.
• Power status of each computer is displayed.
• View usage statistics – power-on cycles and hours of usage.
• Helps screens assists users with the OSD.
• Modify the size and position of the OSD.
• OSD is built into the switch-no need to install additional hardware or software.
• OS and software-independent.

Security
• Advanced security included.
• Each user password can be up to 15 characters long, and each switch can store up to 63 users.
• Administrator can enable or disable all security features and select which computers each user can access.
• Once security is enabled, a user or administrator must login in order to access any of the computers connected to the switch.

Features and Benefits
• The High Density Switch saves rack space
• Rackmount kit included.
• Features NTI's patented true autoboot USB switching – all attached computers can be booted simultaneously.
• Compatible with USB computers (PC, Sun and Mac).
• Crisp and clear 1920 x 1200 video resolution.
• Equipped with OSD, RS232, and Ethernet.
• High quality steel construction.
• Cascade UNIMUX switches off a single master switch to control up to 1,024 computers as if from one switch.
• Flash upgradeable.
• Cabling runs are simplified with NTI's high density KVM switch cables.
• Two years warranty
